How Do Solid-State Batteries Work?

A battery with no liquid inside might sound like a completely different way to power a car. But a solid-state battery follows the same basic principle as a conventional lithium-ion battery: lithium ions travel between two electrodes while electrons flow through an external circuit.

The big change is the material the ions move through. Replacing a liquid with a solid could help batteries store more energy and reduce some fire risks—but it also creates a surprisingly difficult engineering problem: keeping solid surfaces in close contact as the battery repeatedly charges and discharges.

First, What Moves Inside a Battery?

To understand a solid-state battery, you need to know four parts of a rechargeable lithium battery:

• Anode: the electrode that supplies electrons to the external circuit when the battery delivers power. Most conventional EV batteries use graphite, a form of carbon, as the main material that stores lithium here.
• Cathode: the other electrode, which receives electrons from the external circuit during discharge and takes in lithium ions.
• Electrolyte: the material that lets lithium ions travel between the electrodes.
• External circuit: the path electrons take outside the battery—for example, through the electronics and motor that propel your car.

An ion is an atom or group of atoms with an electrical charge. A lithium ion has a positive charge because it has lost an electron.

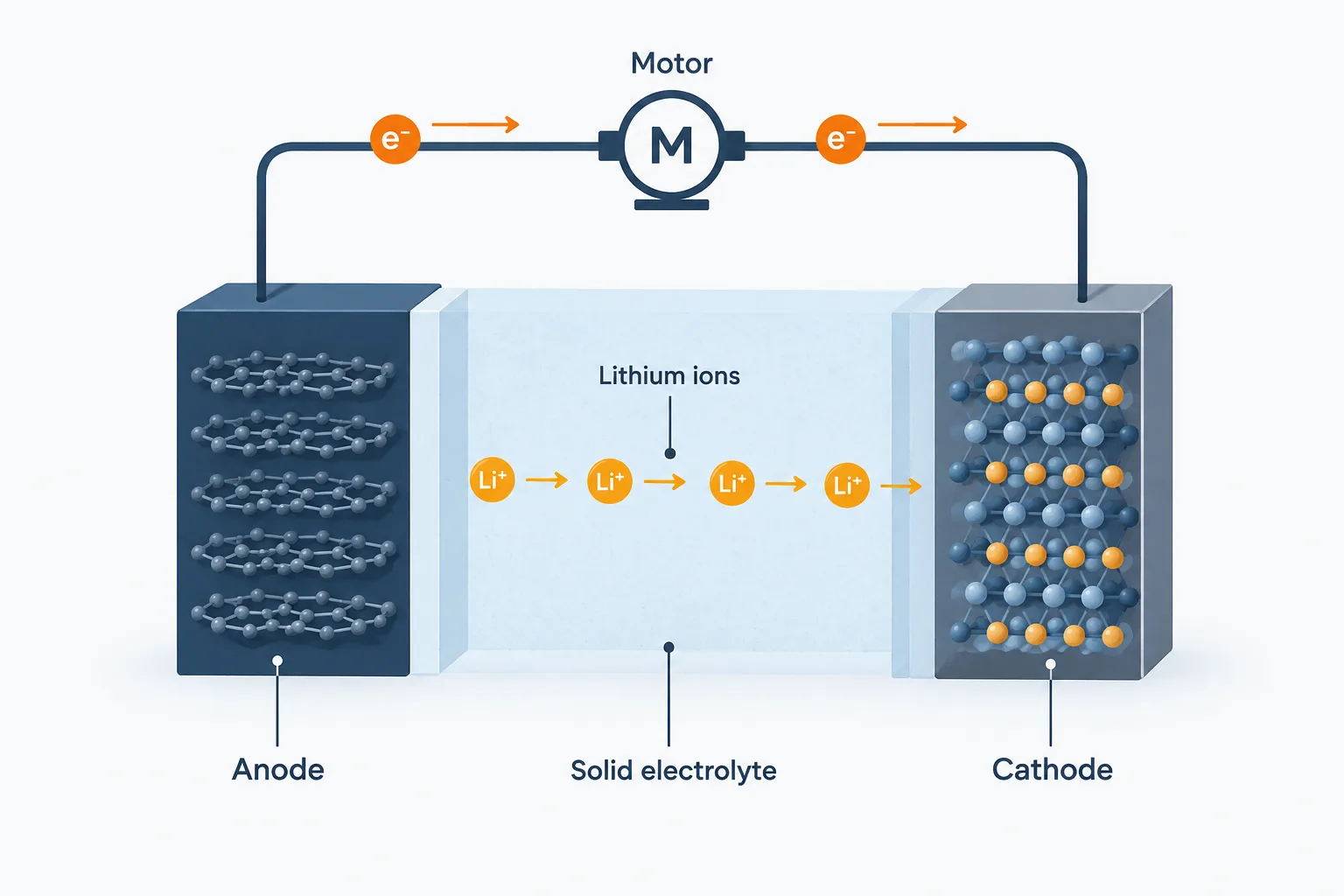

The distinction between ions and electrons matters. They take different routes:

Lithium ions travel through the electrolyte inside the battery. Electrons travel through the external circuit, where they can do useful work.

The electrolyte needs to conduct ions while blocking electrons. If electrons could take an easy shortcut directly between the electrodes, they would bypass the useful load. That is a short circuit, and it can generate dangerous heat.

What Makes a Battery “Solid-State”?

In a conventional lithium-ion battery, the electrolyte is usually a liquid that soaks into the electrodes and a separator—a porous insulating sheet that keeps the electrodes from touching.

In an all-solid-state battery, a solid material replaces that liquid electrolyte. A solid electrolyte layer also separates the electrodes.

Common solid-electrolyte families include:

• Oxide ceramics: inorganic solids containing oxygen.
• Sulfide-based materials: inorganic solids containing sulfur.
• Polymers: materials made from long molecular chains, formulated to allow ions to move through them.

These materials behave differently, so “solid-state” does not describe one universal battery recipe.

The key point is that replacing the electrolyte does not, by itself, determine every other part of the battery.

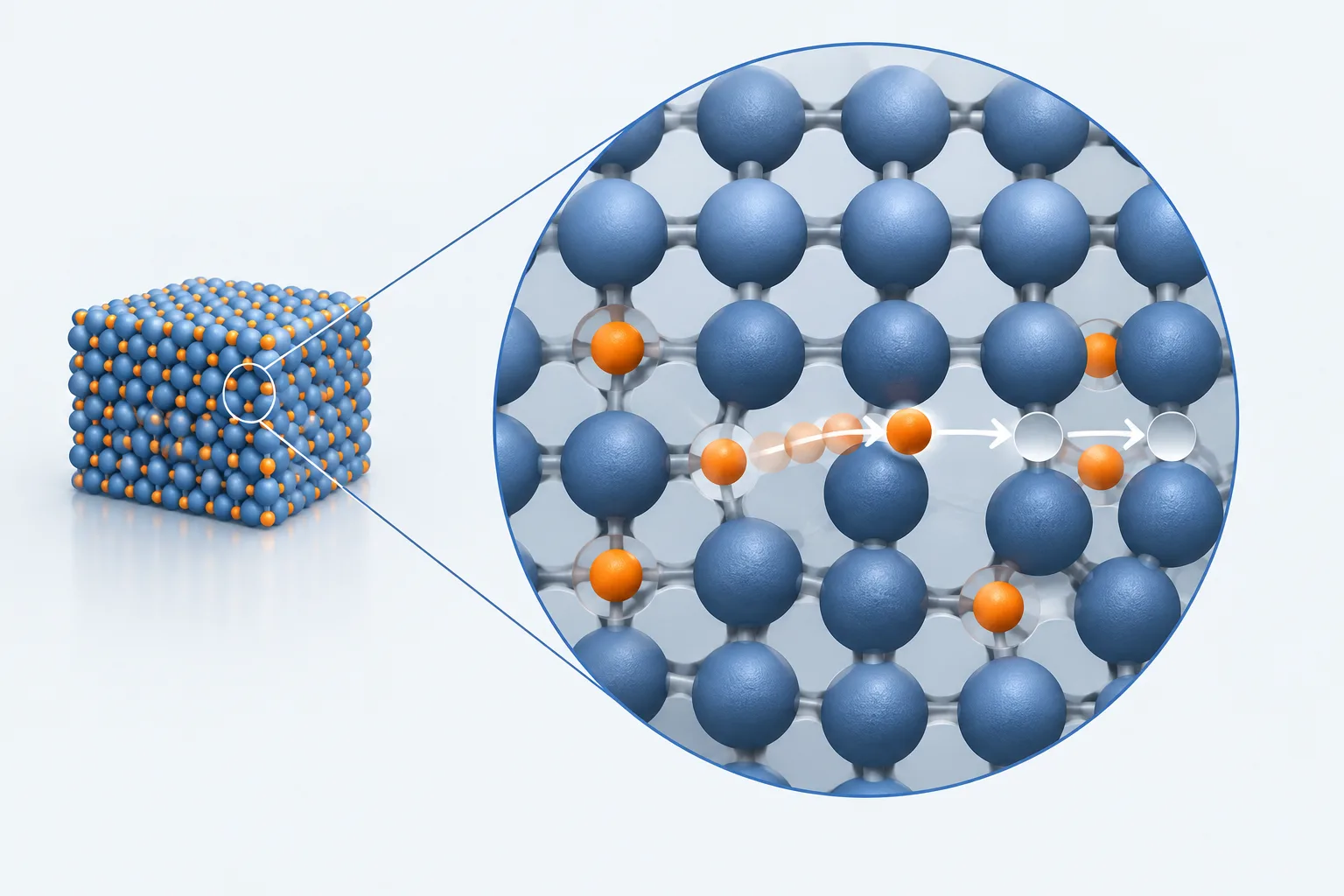

How Can Ions Move Through a Solid?

“Solid” does not mean that every particle inside a material is locked permanently in place.

Some solids have atomic structures that provide sites and pathways along which lithium ions can move. You can picture an ion making a sequence of short hops between available positions. In polymer electrolytes, movement of the molecular chains can help ions travel.

The material stays solid overall, even though ions move through it.

When You Drive

As the battery discharges:

1. Lithium leaves its stored state at the anode, producing lithium ions and electrons.
2. The lithium ions move through the solid electrolyte toward the cathode.
3. The electrons take the external route through the car’s electrical system.
4. At the cathode, the ions and electrons participate in reactions that store the lithium there.

Chemical energy is converted into electrical energy along the way.

When You Charge

A charger supplies electrical energy that drives the process in reverse. Lithium ions move back toward the anode, and electrons are supplied through the external circuit.

Depending on the design, lithium may be stored within an anode material such as graphite or deposited as lithium metal.

Why Is Lithium Metal Such a Big Deal?

Much of the excitement about solid-state batteries is really excitement about what they might enable: a practical lithium-metal anode.

A graphite anode stores lithium within its structure. Graphite is useful, but the host material adds mass and occupies space. A lithium-metal anode can store substantially more charge per unit of anode mass.

That could increase the battery’s energy density—the amount of energy it stores for a given weight or volume.

For an EV, higher energy density could mean:

• More driving range from a battery of similar size and weight.
• A lighter or smaller battery for the same range.
• Some combination of the two.

But an anode is only one component. The cathode, electrolyte, electrical connections, protective casing, and other parts all contribute weight and volume.

A higher-capacity anode creates an opportunity for a better battery; it does not automatically translate into an equally large improvement for the whole battery pack.

And solid-state batteries do not necessarily use lithium metal. The two ideas are closely linked, but they are not interchangeable.

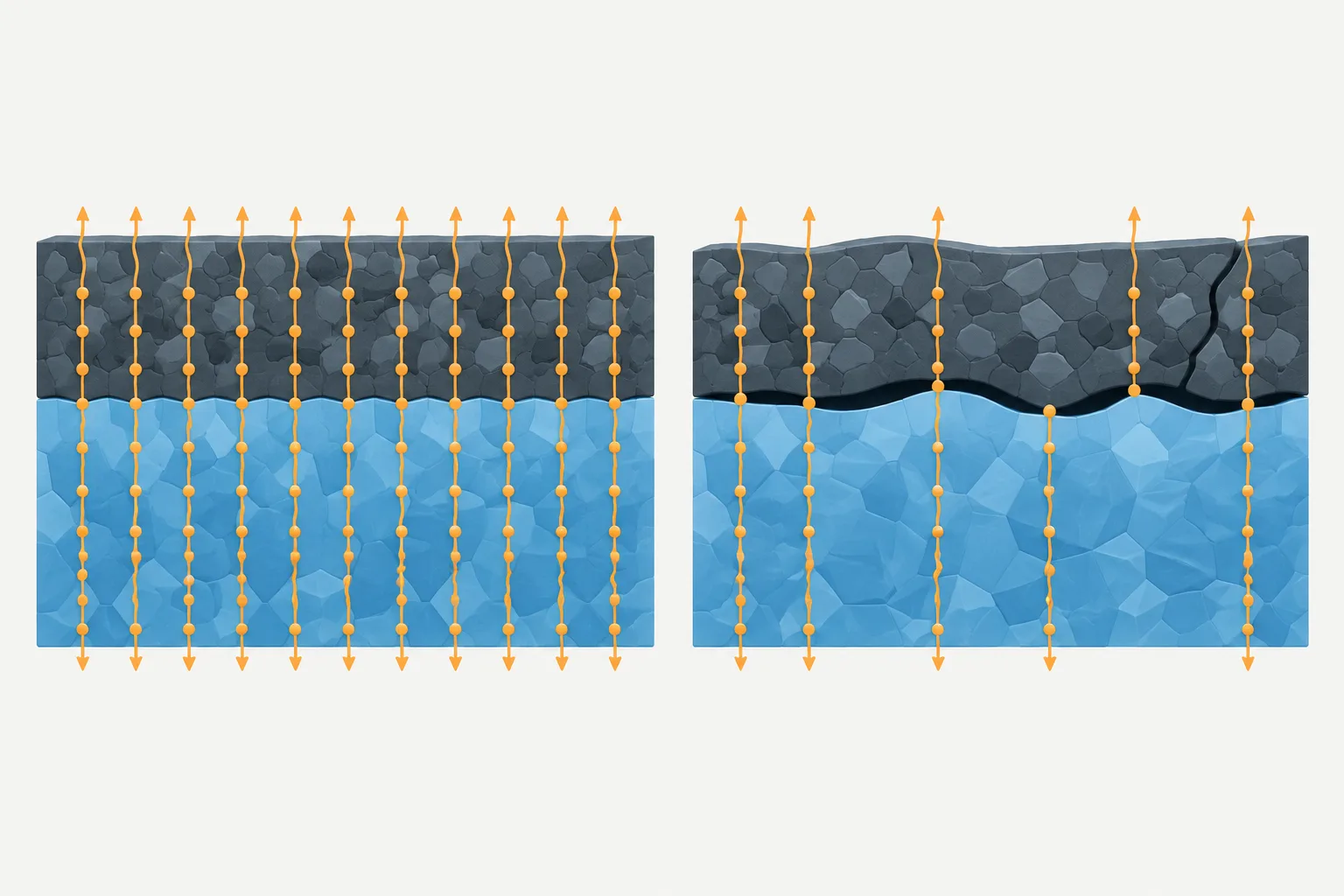

The Hard Part: Solids Do Not Flow Into Gaps

A liquid can spread across a surface and fill small spaces. Two solids have a harder time maintaining intimate contact.

This matters because the electrodes change shape and volume as lithium enters or leaves them. Even small changes can create gaps, cracks, or uneven contact at an interface—the boundary where two materials meet.

Poor contact makes it harder for ions to cross that boundary. It can also concentrate the movement of charge into smaller areas rather than distributing it evenly.

Some designs use carefully controlled pressure to help keep the layers together. But applying that pressure reliably across many cells, over years of driving and charging, adds engineering complexity.

A Solid Barrier Is Not Automatically Impenetrable

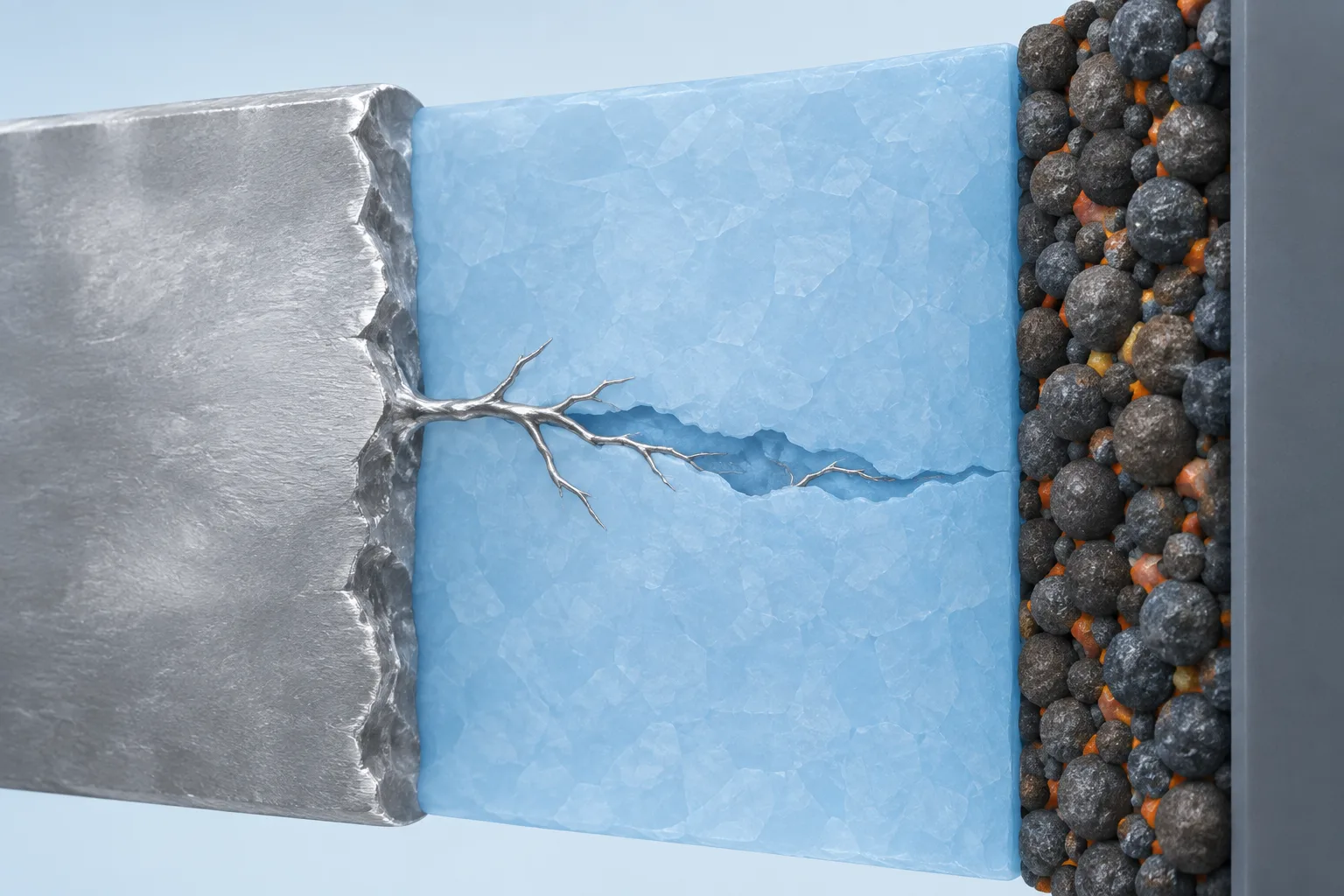

Lithium can also form thin, unwanted filaments, often called dendrites. Under certain conditions, these can grow through defects or other vulnerable regions and eventually create a short circuit.

A solid electrolyte may help control lithium growth, but “solid” alone does not guarantee that filaments cannot penetrate it.

Are Solid-State Batteries Safer—and Will They Deliver Huge Range?

Some solid electrolytes are less flammable than the liquid electrolytes used in conventional lithium-ion batteries. That is a meaningful potential advantage.

But less flammable does not mean risk-free. A battery still stores substantial energy, and short circuits, heating, and chemical reactions remain concerns. Safety depends on the complete design, not just the electrolyte.

The same caution applies to range and charging speed. Higher energy density could support longer-range EVs, but solid-state construction alone does not guarantee 1,000-kilometer journeys. Fast charging also requires ions to move quickly through the electrolyte and across its interfaces without causing damaging reactions or uneven lithium deposition.

The promise is real, but so are the trade-offs:

Solid-state batteries are a family of designs—not a guarantee of greater range, faster charging, or perfect safety.

Their success depends on getting several things right at once: ion transport, stable chemistry, durable contact, manufacturing, and the design of the complete battery pack. The electrolyte may be solid; the engineering challenge is making everything around it work together.
