How Does a Lithium-Ion Battery Work?
Every time you charge your phone, you prepare a tiny chemical system to do work later. When you unplug it, that system supplies electricity to the screen, processor, and other components—without needing fresh fuel.

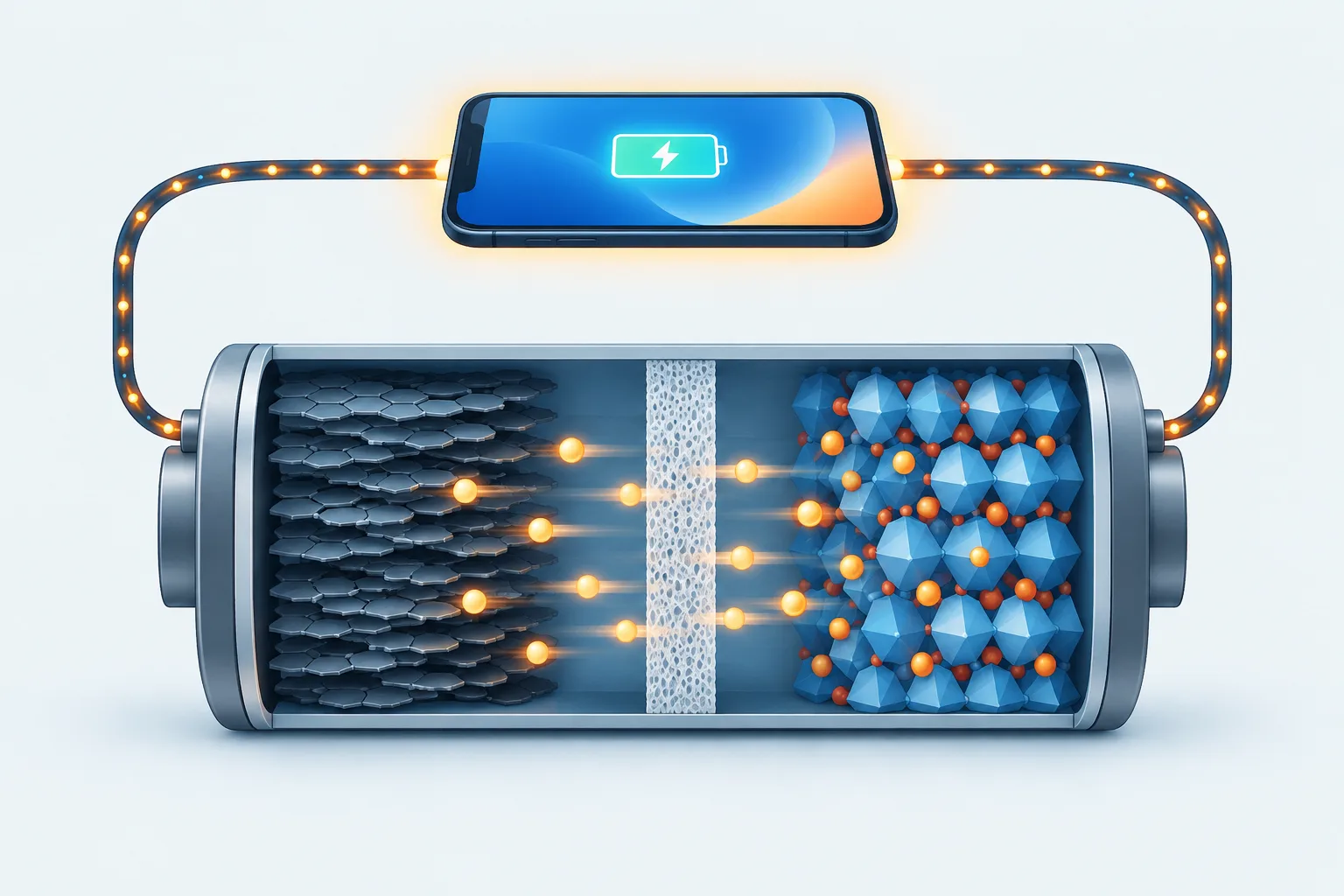

The key is a reversible journey: lithium ions move between two materials inside the battery, while electrons travel through an outside circuit. Discharging sends them one way; charging sends them back.
Meet the Four Main Parts
A lithium-ion battery contains two electrodes—materials where the reactions that store and release energy take place. Between them are an electrolyte and a separator.
| Part | What it is | What it does |
|---|---|---|
| Anode | The negative electrode, usually made of graphite, a form of carbon | Holds much of the battery’s movable lithium when charged |
| Cathode | The positive electrode, made from a lithium-containing material, such as a metal oxide or lithium iron phosphate | Receives lithium during discharge |
| Electrolyte | An ion-conducting substance, commonly a liquid containing dissolved lithium salts | Lets lithium ions travel between the electrodes |
| Separator | A thin, porous insulating sheet | Keeps the electrodes from touching while allowing ions to pass through |
Anode and cathode are the names conventionally used for these electrodes in a battery, based on their roles during discharge.
Think of the electrodes as two buildings that can accommodate lithium. The electrolyte provides a route between them, and the separator is a barrier with tiny passages: lithium ions can get through, but the electrode materials cannot touch.
What Is a Lithium Ion?
An ion is an atom or molecule with an electrical charge. A lithium ion has a positive charge because it has one fewer electron than a neutral lithium atom.
An electron is a negatively charged particle. Electrons moving through your device’s electrical circuit are what allow the battery to deliver power.
That distinction matters because the battery gives ions and electrons different routes.
Discharging: How the Battery Powers Your Device
When you connect a charged battery to a device and switch it on, you complete an external circuit: a conducting path from one battery terminal, through the device, to the other terminal.
Inside the battery, chemical reactions begin to release its stored energy.
Two Flows Work Together

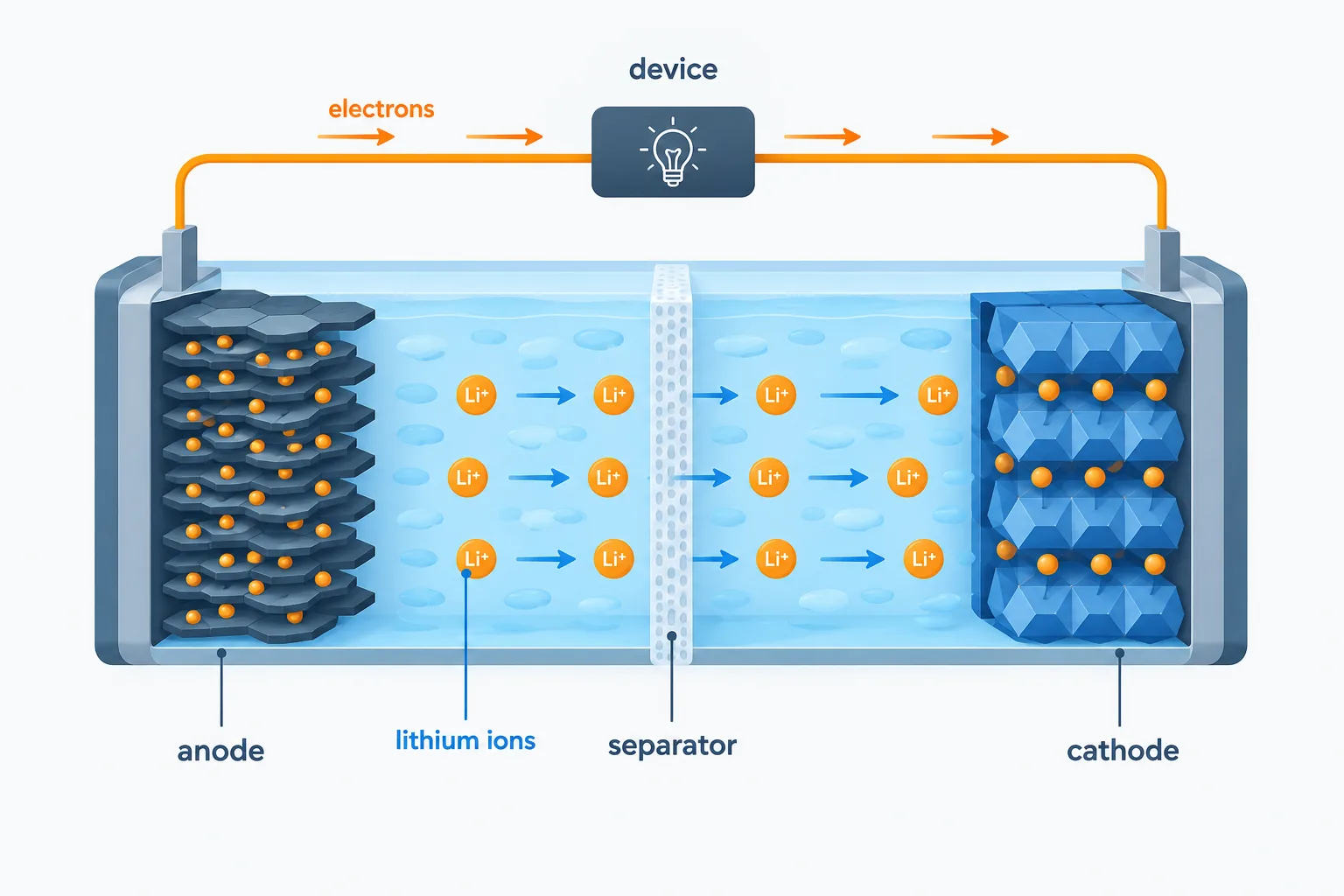

During discharge, the process unfolds like this:
- Lithium leaves the anode’s storage structure. Lithium ions move out of the graphite and into the electrolyte, while electrons are released into the conducting electrode.
- The ions cross inside the battery. They travel through the electrolyte and the separator toward the cathode.
- The electrons take the outside route. Because the electrolyte and separator block direct electron flow between the electrodes, electrons travel through the external circuit.
- Both arrive at the cathode. The cathode takes in lithium ions and electrons through a chemical reaction.
The electron flow through your device transfers energy to it, powering everything from a phone’s display to an electric car’s motor.
A lithium-ion battery works by coordinating two paths: ions move inside the battery, and electrons move through the device.
Neither flow can continue normally for long without the other. They are linked parts of the same electrochemical process—a process in which chemical reactions and electrical current work together.
Where Does the Energy Come From?
The battery does not create energy simply by moving particles. It stores chemical energy in the arrangement of its materials.
In a charged battery, that arrangement can change to one with lower chemical energy. During discharge, the battery makes that change and delivers much of the released energy electrically.
Voltage describes the difference in electrical potential between the terminals—roughly, how much energy the battery can transfer per unit of electric charge. You can picture it as an electrical “push,” though the underlying source is the battery’s chemistry.
Charging: Sending Lithium Back
Discharge moves the battery toward a lower-energy state. Charging uses energy from an external power supply to reverse that change.
A charger applies a suitable voltage so that:
- Electrons are withdrawn from the cathode and supplied to the anode through the charging circuit.
- Lithium ions leave the cathode and travel through the electrolyte toward the anode.
- Lithium is stored again within the anode material.
The result is a restored, higher-energy chemical arrangement, ready to power your device later.
Charging is therefore more than “filling the battery with electricity.” It uses electrical energy to rearrange the battery’s chemical contents.
Why Can You Recharge It?
The electrode materials can accept lithium and release it again without being completely consumed each time.

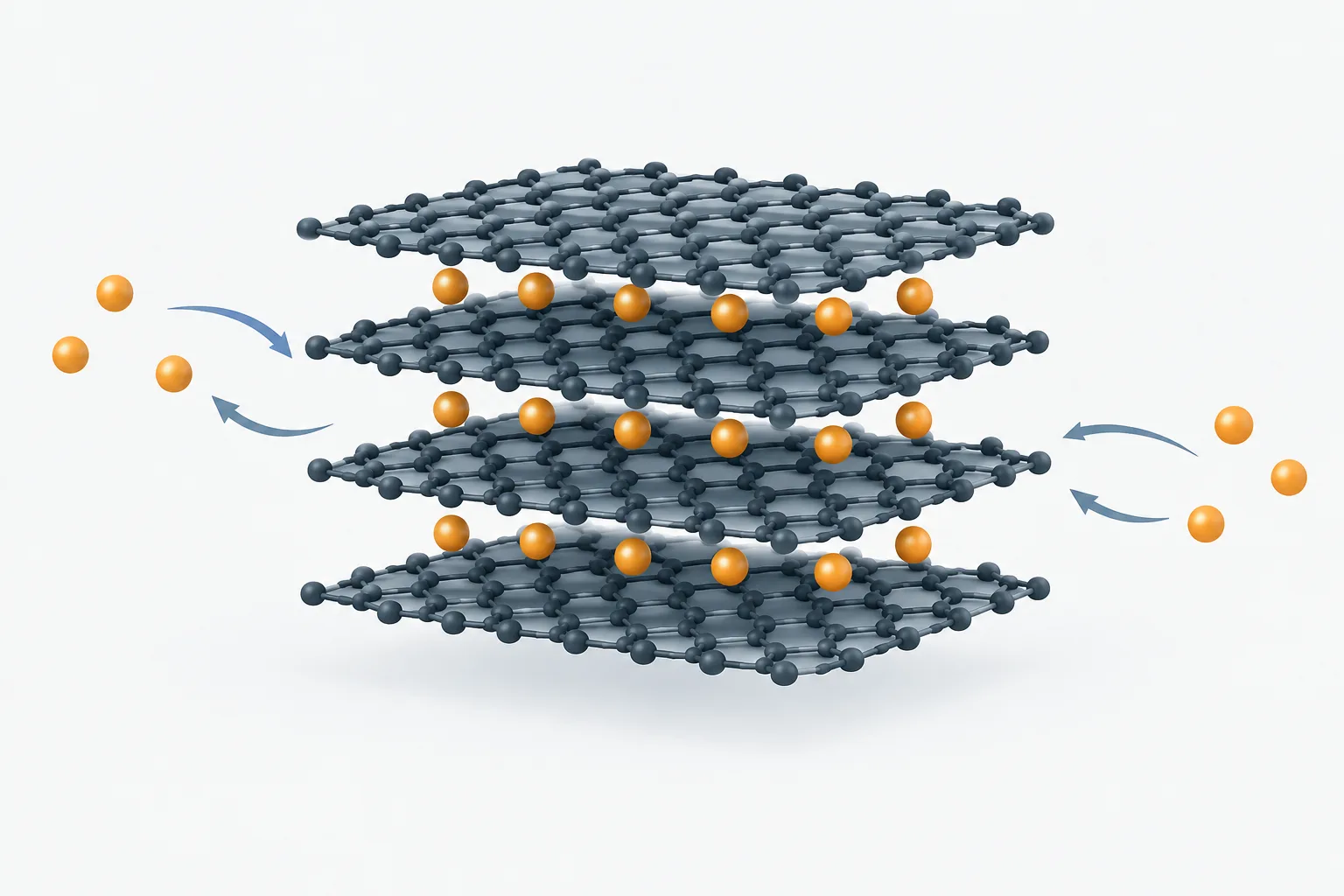

In graphite and many common cathode materials, this process is called intercalation: inserting particles into spaces within a material’s structure. Imagine sliding books onto shelves and removing them later, rather than rebuilding the shelves every time.
This reversible storage is what makes lithium-ion batteries rechargeable. In a typical lithium-ion battery, lithium is mainly stored within electrode materials—not as a lump of lithium metal.
Why Does Capacity Eventually Fade?
The reversibility is not perfect. Over time:
- Side reactions trap some lithium, leaving less available to move between electrodes.
- Changes in electrode materials make some storage sites harder to use.
- Internal resistance can increase, making it harder to deliver power efficiently.
Together, these changes reduce capacity—the amount of electric charge the battery can store and deliver—and can reduce the energy available to your device. Aging occurs both with use and with time.
The Whole Process in One Picture—Without the Picture
Keep these two directions in mind:
- Discharging: lithium ions move from anode to cathode inside the battery; electrons travel through your device to the cathode.
- Charging: an external supply drives electrons and lithium ions back toward the anode.
The lithium mostly travels back and forth rather than being used up. The battery’s job is to make that journey controlled, useful, and reversible—turning chemical energy into electrical energy, then storing electrical energy as chemical energy again.
