How OLED Turns Electricity Into Light

An OLED screen makes its picture one glowing pixel at a time—and its deepest blacks come from making no light at all.

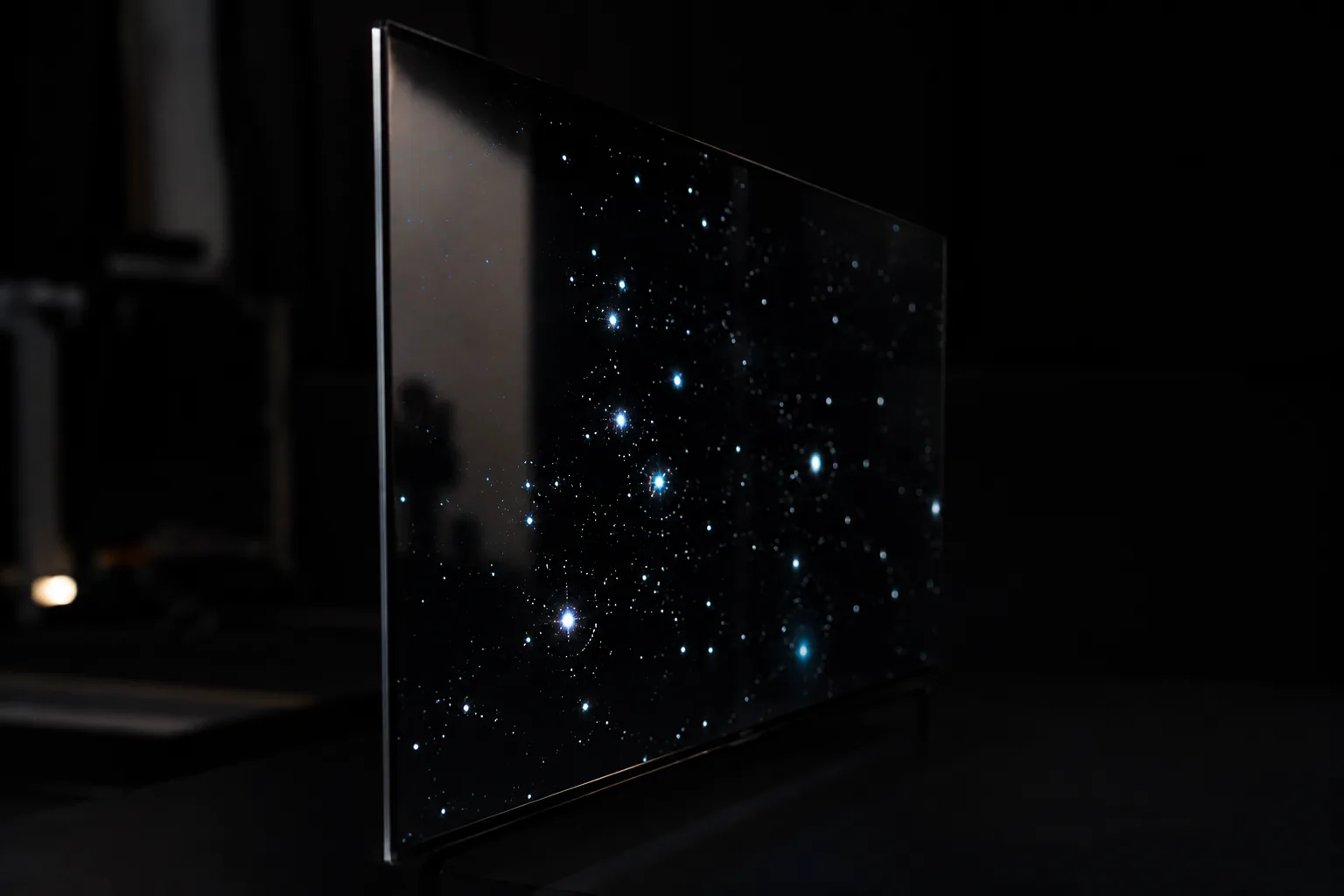

Watch a scene of stars against a black sky on an OLED screen in a dark room. The stars shine, but the space between them can seem to disappear into the darkness around the display. That is because the screen does not have to illuminate a black area and then try to hide the light. It can simply leave those pixels off. To understand how it does that, you have to look beneath the glass, into layers of material where moving electric charges become light.

A Screen Made of Tiny Lamps

OLED stands for organic light-emitting diode. The name sounds technical, but each part tells you something useful: “organic” describes the light-producing material, “light-emitting” describes what it does, and “diode” describes its electrical behavior.

The central idea is that an OLED screen’s pixels—the tiny picture elements that together form an image—produce their own light. You can imagine the screen as an enormous collection of miniature lamps, each controlled to contribute the right amount of light to the picture.

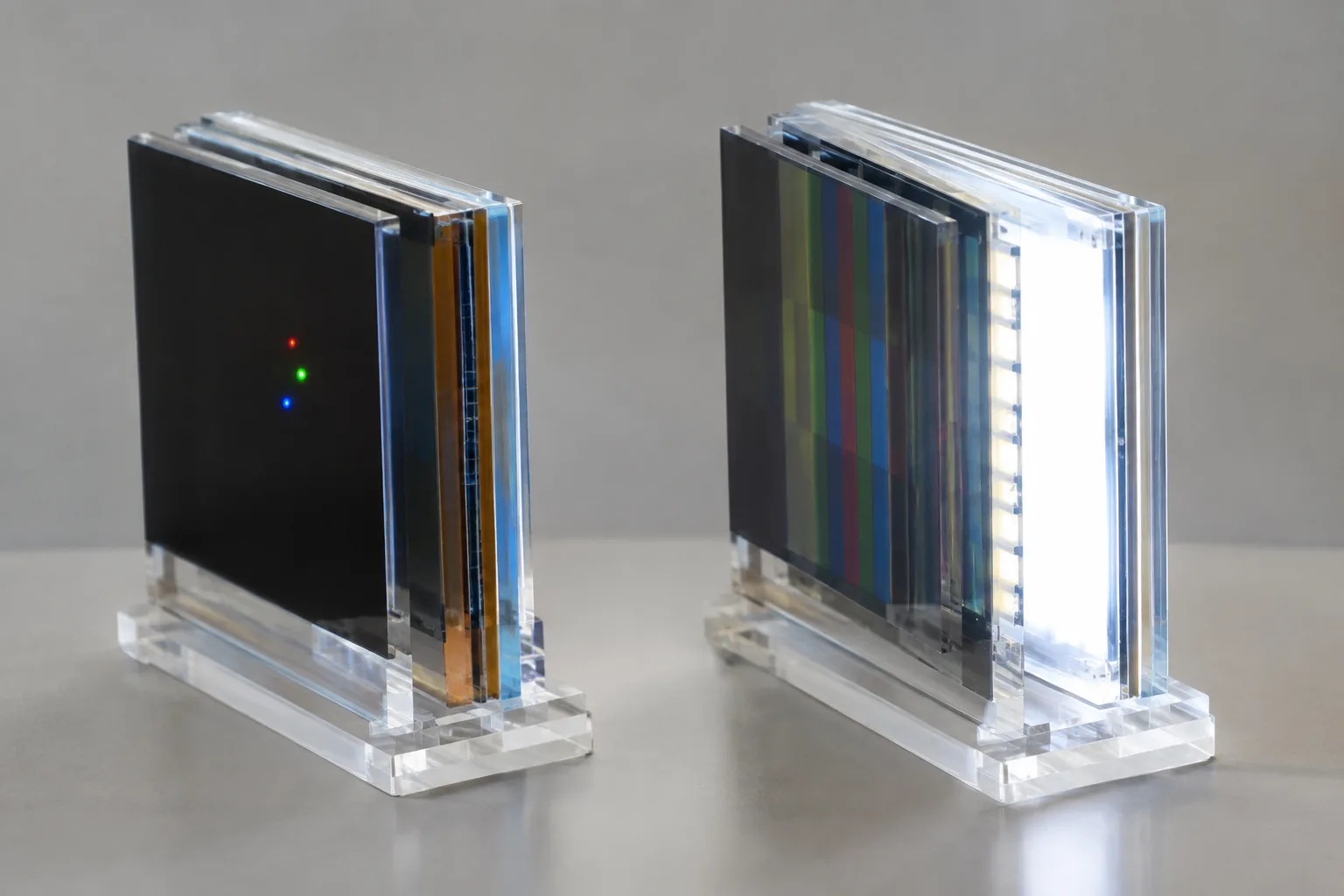

That is different from a liquid-crystal display, or LCD. An LCD uses a separate light source behind the image, called a backlight, and controls how much of that light passes through different parts of the screen. An OLED does not need that shared source of illumination. The image-making material is also the light source.

This difference explains much of OLED’s appeal. But it raises a more interesting question: how do you make a thin layer of material glow merely by passing electricity through it?

The One-Way Gate

Start with the final word in the name: diode.

A diode is an electronic component that lets electric current flow much more easily in one direction than in the other. If you are new to electronics, think of it as a one-way gate. It is not a perfect gate under every possible condition, but the analogy captures its most important behavior.

A light-emitting diode, or LED, is a diode designed to give off light when current flows through it. The gate does not mechanically open, and the light is not a spark. Instead, electrical energy is converted into light inside the material.

In an OLED, thin layers of organic material sit between two electrodes: conductive contacts that connect those layers to the electrical circuit. Apply a voltage—an electrical push—in the appropriate direction, and the contacts supply the charges needed to make the material emit light.

Here, “organic” does not mean natural, living, or grown without pesticides. It is a chemistry term referring to carbon-based compounds. OLEDs use such compounds as their light-producing materials. Conventional LEDs instead commonly use inorganic semiconductors, materials whose electrical behavior can be controlled, such as gallium nitride.

Both kinds of device turn electrical energy into light. They use different materials to do it.

When an Electron Meets an Absence

Inside the OLED, two kinds of charge have a role.

The first is the electron, a tiny particle with negative electric charge. The second is a hole, which is not a separate positive particle hiding in the material. It is an empty place where an electron could be.

That absence can behave like a moving positive charge. Picture a row of seats with one empty chair. If someone moves into the empty chair, their previous seat becomes vacant. As people shift, the vacancy appears to travel in the opposite direction. Likewise, electrons moving between available states allow a hole to move through a material.

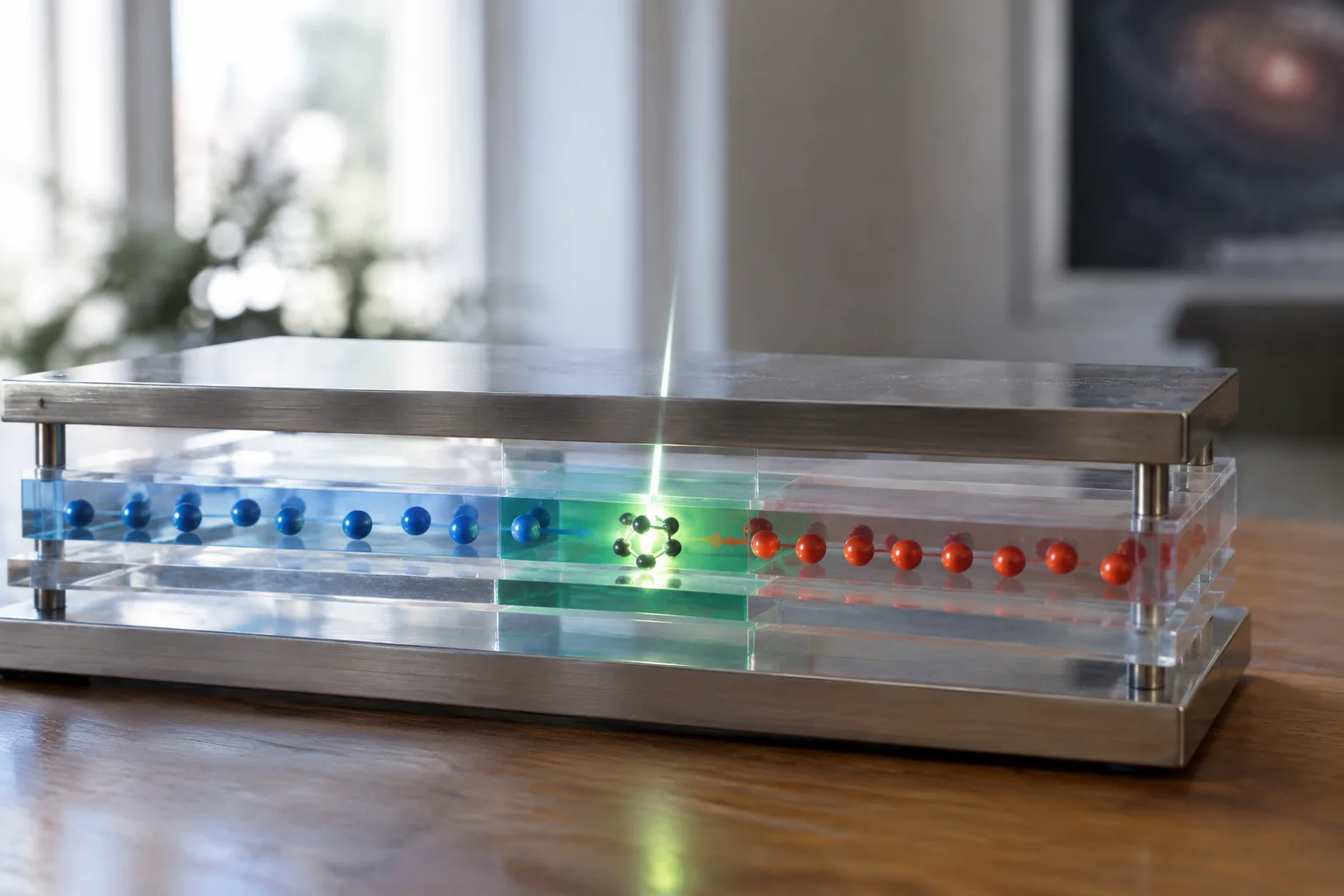

The OLED’s electrical contacts supply electrons and holes from opposite sides. They travel through the organic layers and meet in the region designed to produce light, called the emitting layer.

Their meeting can put a molecule into an excited state, meaning it temporarily holds extra energy. When it returns to a lower-energy state, that energy can leave as a photon—a particle of light.

The light is electrical energy leaving the material in a new form.

This process is called electroluminescence: light produced through electrical excitation. Rather than heating a filament until it glows, as an old-fashioned incandescent bulb does, an OLED uses changes in the energy states of its material to produce light.

The material also helps determine the color. Different light-producing compounds release different amounts of energy in these transitions, and a photon’s energy determines its color. Higher-energy visible photons are toward the blue end of the spectrum; lower-energy ones are toward the red.

Making a Picture—and Making Nothing

One glowing spot is not yet a screen. The display’s electronics must control the light across millions of picture elements, adjusting their output to build up shapes, colors, shadows, and movement.

The crucial freedom is local control: a bright part of the picture does not require every other part to be illuminated.

For a star, the relevant elements emit light. For the empty sky beside it, they can remain off. That gives OLED its deep blacks and high contrast, the difference between the bright and dark parts of an image. Ambient light can still reflect from the screen, but a switched-off OLED element is not generating its own unwanted glow.

An OLED’s most distinctive trick is not only how it makes light, but where it makes none.

The same construction brings other advantages. Without a separate backlight, OLED displays can be thin. Their light output can also change quickly, giving them a fast pixel response—the speed at which a picture element changes from one state to another. That helps them follow rapidly changing images, although the sharpness of motion also depends on how the display is driven.

The Cost of Glowing

The materials that make this possible do not remain unchanged forever. OLED compounds gradually lose light-producing efficiency with use, and different parts of a screen may age at different rates.

If the same bright logo or interface element stays in one location for long periods, that region can wear differently from its surroundings. Eventually, the unevenness may become visible as burn-in: a persistent trace caused by differential aging, not an image literally scorched into the glass.

Power use also depends on the picture. Dark areas need little or no power for light emission, but a large, bright image requires many elements to shine strongly at once. OLED therefore is not automatically a low-power technology in every situation; what you put on the screen matters.

These trade-offs follow from the same principle as its strengths. Each part of the image is an active light source, doing its own work and accumulating its own wear.

Look again at those stars. Behind each bright point is a flow of charge, a brief excited state, and energy escaping as light. Between them, the screen’s achievement is quieter: it knows when to stop glowing.
