How Baseball Seams Turn a Thin Layer of Air into Movement

A baseball’s raised stitches look too small to steer a pitch. Yet they sit exactly where small disturbances can matter most: in the thin layer of air brushing the ball’s surface. By changing where that air lets go, the seams can reshape the airflow behind the ball—and change the pressure pushing it off a straight path.

To understand how, follow a chain of events: boundary layer → separation → wake → uneven pressure.

The Boundary Layer: Where Air Meets the Ball

Imagine watching a pitch from a camera traveling alongside the baseball. From that viewpoint, the air approaches the ball, flows around it, and continues behind it.

But the air does not move at the same speed everywhere near the surface.

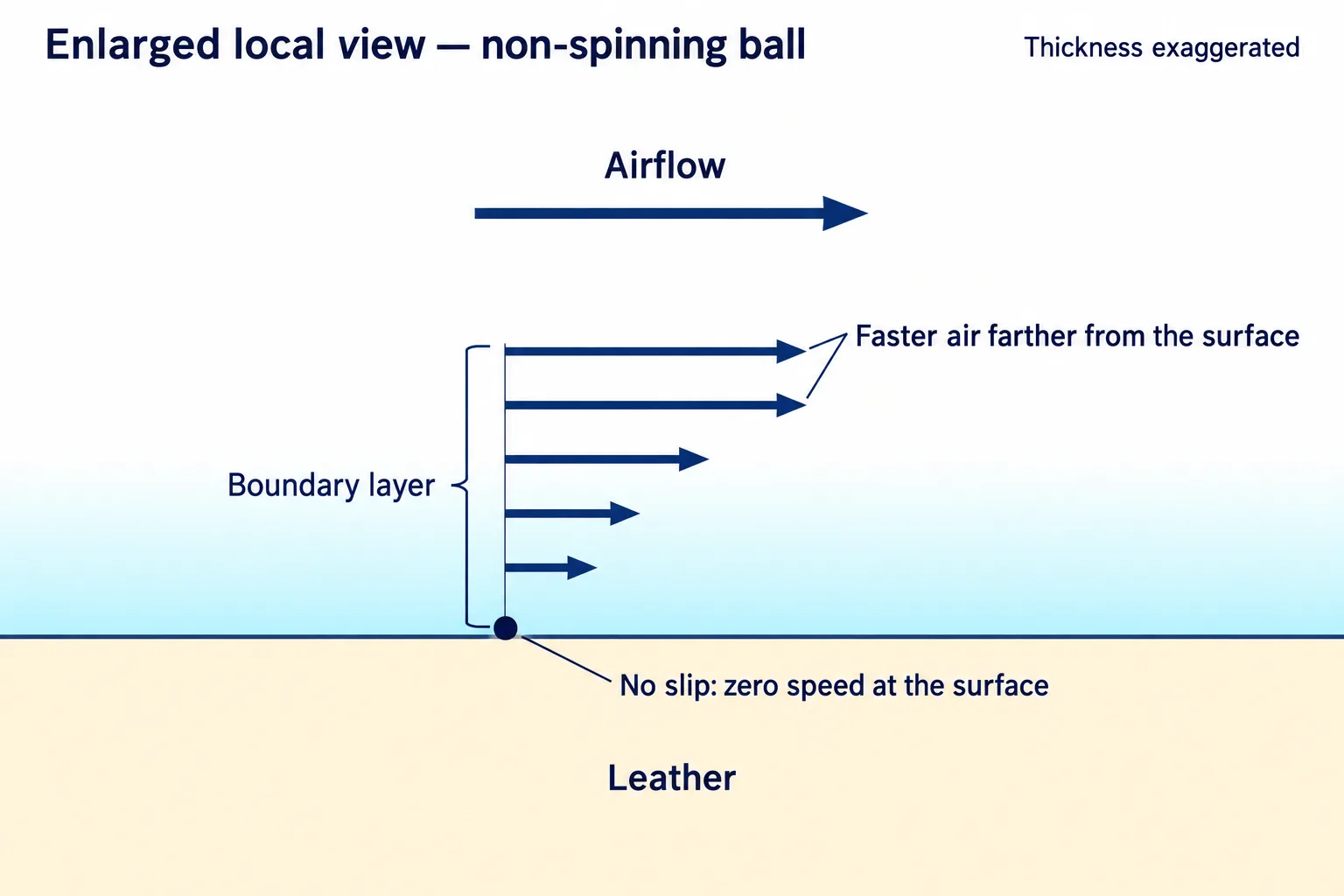

Right against the leather, air moves with the local surface. This is called the no-slip condition: at the point of contact, air does not slide freely past a solid. If the ball is spinning, the air immediately touching it follows that moving surface.

A little farther away, the airflow is less constrained by the leather. The thin region over which that change happens is the boundary layer.

The boundary layer is not a separate shell of trapped air. It is the region where the ball’s surface strongly affects the air’s motion.

The forces associated with air’s internal friction—its viscosity—are especially important here. Although the layer is thin, its behavior helps determine the much larger airflow pattern around the ball.

Its most consequential job is deciding how far the air can follow the ball’s curved surface before peeling away.

Why the Air Eventually Peels Away

Following the surface gets harder at the back

As approaching air reaches the front of a ball, it slows and the pressure rises. The airflow then accelerates around the sides, where pressure is lower.

Toward the rear, the pressure generally rises again. Air traveling along the surface must therefore move into a region of higher pressure—rather like a cyclist trying to coast uphill.

The air close to the leather has relatively little forward momentum because of friction. It may not have enough to keep moving along the surface against that rising pressure. The nearby flow can slow drastically, reverse locally, and detach from the ball.

This detachment is called flow separation. The location where it happens is the separation point, or, around a three-dimensional ball, a separation line.

Separation creates the wake

Behind the ball lies the wake: a disturbed region of air with swirling motion and a different pressure pattern from the surrounding flow.

You can picture something loosely similar behind a bridge support in a stream. Water flows around the support, but downstream it does not immediately return to a smooth, undisturbed current.

Where the airflow separates helps determine the wake’s size and shape. Crucially, separation does not have to occur at matching locations on opposite sides of a baseball.

That is where the possibility of an extra sideways or vertical force begins.

How the Wake and Pressure Produce a Force

Air pressure is the push air exerts on a surface. It acts all around the baseball, with each small patch of pressure pushing inward, perpendicular to the local surface.

If the pressure pattern were perfectly balanced from side to side, those sideways pushes would cancel. If it is unbalanced, they do not.

For example, if the overall pressure pushes more strongly from one side than the other, the ball experiences a net force toward the less strongly pushed side.

Unequal separation can create just such an imbalance. When the airflow peels away differently on opposite sides, the wake and the pressure distribution around the ball change together.

A tiny change near the leather can alter a large region of airflow—and therefore the total pressure force on the ball.

This is why “the air goes faster on one side” is not a complete explanation of a breaking pitch. Air speed and pressure are related, but the boundary layer, separation, and wake are essential parts of the actual flow around a baseball.

Pressure also helps determine whether the boundary layer stays attached in the first place. It is not simply the last step in a one-way chain; the whole airflow pattern is connected.

What the Raised Seams Actually Do

A seam is a small ridge standing above the leather. As air passes over it, that ridge disturbs the boundary layer.

The result depends on where the seam is, how high it is, and what the nearby airflow is already doing.

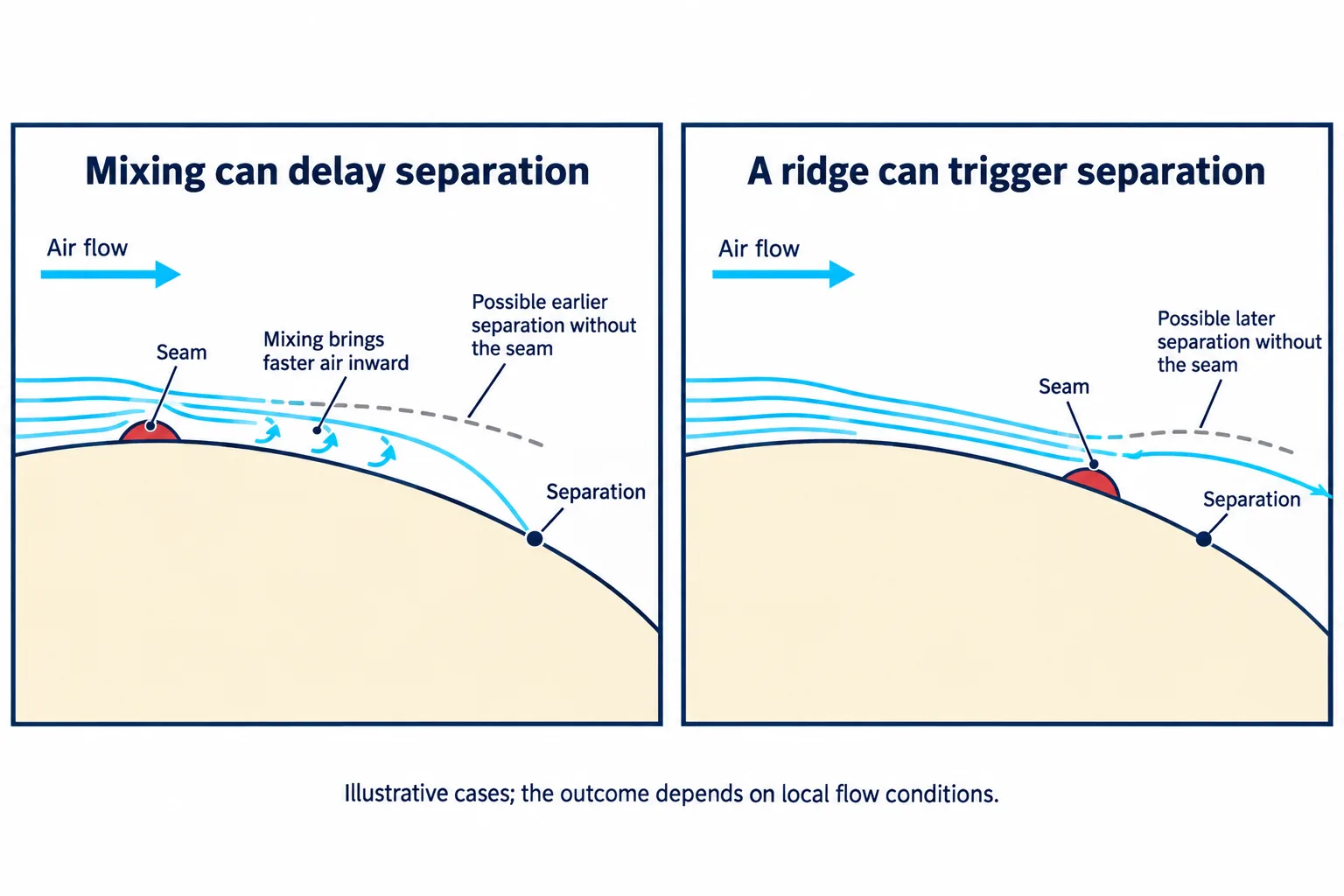

A seam can stir the layer and delay separation

Boundary-layer flow can be relatively orderly, called laminar flow, or full of irregular fluctuations and mixing, called turbulent flow.

A seam can help trigger that transition to turbulence. The mixing can bring faster-moving air from the outer part of the boundary layer closer to the surface. That gives the near-surface flow more momentum to keep moving against rising pressure.

The surprising result: adding a disturbance can sometimes help the airflow stay attached longer.

A seam can also prompt earlier separation

A ridge is also an obstacle. In the right location—particularly near a region where the airflow is already close to separating—a seam can cause the air to detach near the ridge.

Measurements of airflow around baseballs show that seams in this influential region can shift the separation location toward themselves.

So neither “seams always delay separation” nor “seams always make air peel away sooner” is reliable. Their effect depends on the local conditions.

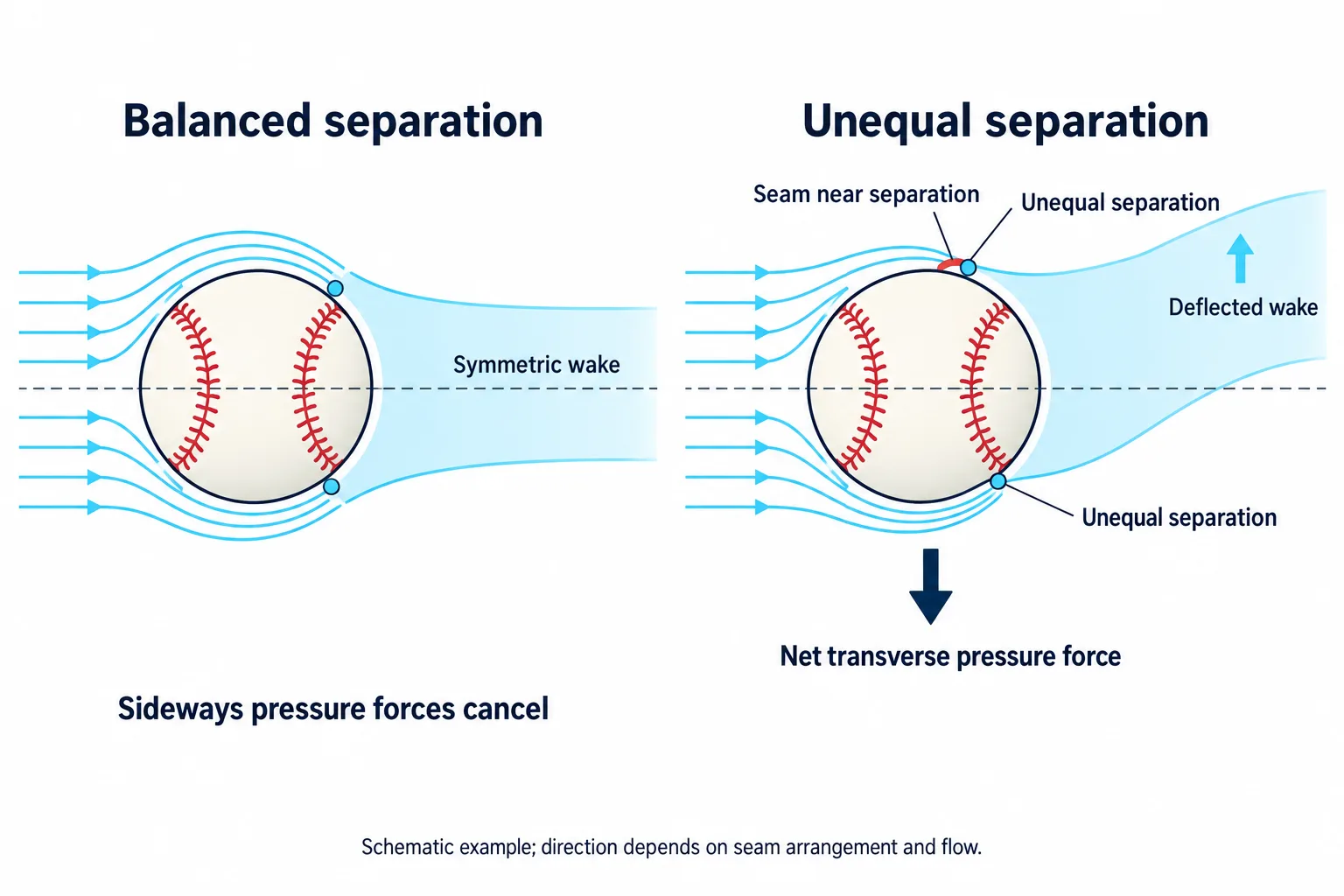

When Unequal Separation Becomes a Seam-Shifted Wake

If seams affect the two sides of the ball similarly, much of their sideways influence may cancel. But suppose a seam causes separation earlier on one side while the flow stays attached farther around the other.

The sequence is:

1. The seam changes the boundary layer locally.
2. Separation becomes uneven around the ball.
3. The wake becomes asymmetric, rather than balanced about the direction of travel.
4. The pressure forces no longer cancel sideways or vertically.

This seam-related alteration of the wake is called a seam-shifted wake. It can produce movement in addition to the movement normally associated with spin.

The name does not mean that a seam captures a pocket of air and carries it around. The seam changes how the passing air separates.

Why seam orientation matters

On a rotating baseball, seams continually move through different positions relative to the oncoming air. What matters is not merely whether a ball has raised stitching, but which parts of that stitching repeatedly pass through the regions most sensitive to separation.

That makes the outcome dependent on:

• Seam height: how far the ridge protrudes into the airflow.
• Seam orientation: how the stitching is arranged relative to the airflow and the spin axis—the imaginary line around which the ball rotates.
• Rotation: how that arrangement changes during flight.

As a result, seams do not push every pitch in the same direction. Some arrangements produce a sustained imbalance; others produce effects that largely average out.

How This Fits into a Curveball

A curveball’s topspin generally produces a downward aerodynamic force, often discussed as the Magnus effect: the force arising from the interaction between a spinning object and the surrounding airflow.

The seams can modify that airflow and add a seam-related contribution to the ball’s movement. You should not imagine two completely separate systems—one for spin and one for stitches. Both act through the air surrounding the same ball.

The central lesson is simple:

Baseball seams steer indirectly. They disturb the boundary layer, change where air peels away, and help create an uneven pressure pattern that pushes the ball.

The stitches are small. Their leverage comes from being placed at a sensitive boundary between air that follows the ball and air that leaves it behind.
