How Ice Crystals Make a Rocket Plume Shine
A rocket plume can look like a glowing jellyfish even after the ground has fallen into darkness. Part of the trick is sunlight—and, when conditions allow, tiny ice crystals that redirect it toward your eyes. Think of them as a drifting cloud of miniature optical surfaces, not little lamps.
How Ice Redirects Sunlight
Scattering means changing the direction in which light travels. An ice crystal can do this in several ways:
- Reflection: light bounces off a crystal’s surface, somewhat like light off a window.
- Refraction: light bends as it enters or leaves the ice, because it travels differently through ice than through air.
- Diffraction: light spreads around a particle or its edges—a wave effect whose importance depends on the particle’s size compared with light’s wavelength.
You do not usually see individual crystals. Instead, you see the combined light redirected by enormous numbers of particles.
A bright patch is a place where plenty of sunlight is being sent toward you—not necessarily where the plume is hottest.
The viewing angle matters, too: particles do not send equal amounts of light in every direction.
Why It Looks White—or Colored
White: a broad mixture of colors
Sunlight contains a range of visible colors. When the crystals redirect a broad mixture of those colors toward you, the plume looks white.

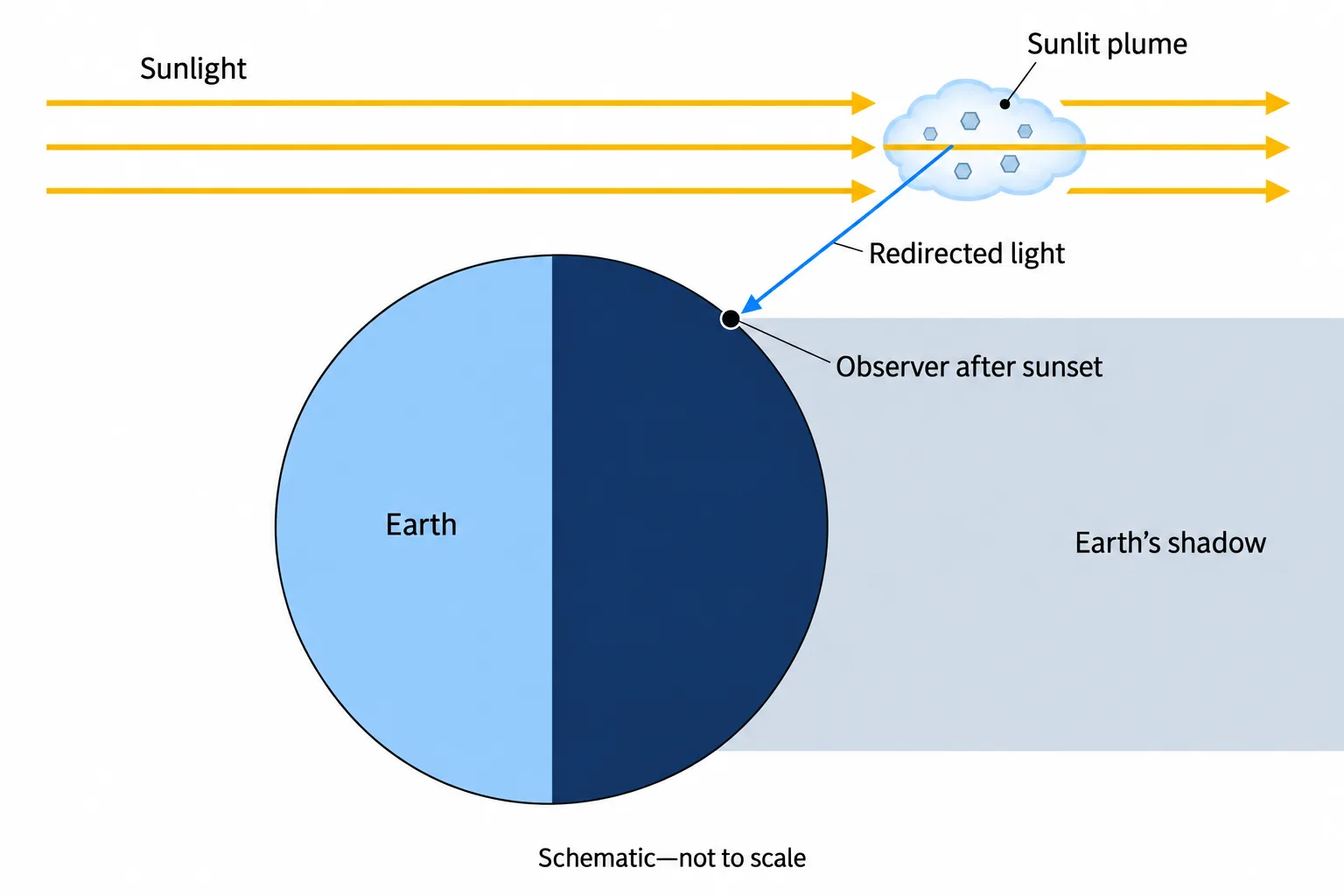

Its brightness becomes especially striking at twilight. High-altitude exhaust can still receive direct sunlight while you—and much of the sky behind the plume—are already in Earth’s shadow. The dark background makes the illuminated particles stand out.
Color: more than one possible cause
Colored patches do not all have the same explanation:
| Possible cause | What it does |
|---|---|
| Very small particles | Can scatter shorter-wavelength blue light more strongly than red light. |
| Refraction through crystals | Can separate colors because different wavelengths bend by slightly different amounts. |
| Sunlight filtered by the atmosphere | Can illuminate the plume with light that is already orange or pink, especially when the Sun is low. |
Which effect matters depends on particle sizes, crystal shapes, illumination, and viewing geometry. A colored plume is not automatically a rainbow made by ice.
Where the Crystals Form

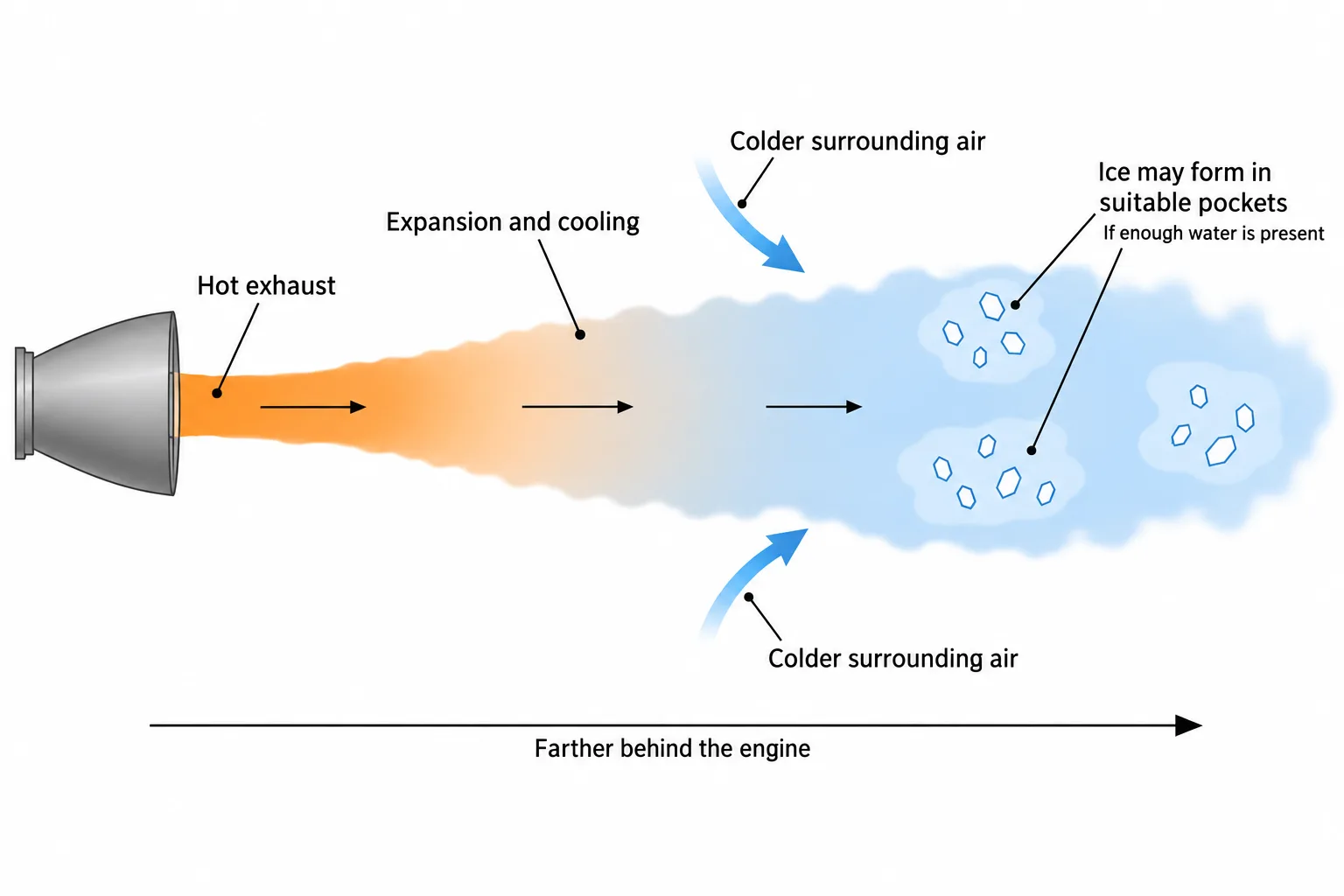

Ice does not generally form right at the engine nozzle, where the exhaust is hottest. If the exhaust contains enough water, crystals can develop farther behind the engine as the gas expands and cools, and as it mixes with colder surrounding air.
There is no single fixed “ice-forming distance.” Crystals appear in pockets where temperature and moisture conditions allow water to condense and freeze.
Nor is the plume’s visible outer edge necessarily its first freezing point. Older exhaust has had longer to spread and drift with winds.
The distinction to keep in mind is simple: ice crystals can help make a plume visible; expanding exhaust and winds give it its shape. And depending on the rocket and conditions, not every bright part of that shape is necessarily ice.
