How Refineries Remove Sulfur from Diesel—and Why the Last Traces Cost So Much

Making cleaner diesel isn’t like straining grit out of water. Most sulfur in diesel is chemically bound inside the fuel’s molecules. To remove it, a refinery has to break chemical bonds—using hydrogen, heat, pressure, and specialized equipment.

The challenge isn’t just removing most of the sulfur. It’s removing enough to meet an exceptionally tight limit, including the stubborn compounds left behind after the easier work is done.

What “Ultra-Low-Sulfur” Actually Means

Ultra-low-sulfur diesel, usually shortened to ULSD, is diesel containing no more than 15 parts per million of sulfur. Parts per million, or ppm, describes a very small concentration: here, 15 ppm means at most 15 milligrams of sulfur per kilogram of fuel.

The previous U.S. highway-diesel sulfur limit was 500 ppm. Moving from that limit to 15 ppm meant lowering the permitted concentration by 97 percent.

ULSD was phased in for U.S. highway use from 2006 to 2010 and is now the required highway diesel fuel.

Why go to such lengths? Because sulfur interferes with modern exhaust-control systems—equipment that reduces pollution after fuel burns in the engine. Some of those systems use catalysts, materials that help chemical reactions happen. Sulfur can impair their performance and can also contribute to particle pollution.

Low-sulfur fuel isn’t merely cleaner on its own. It makes modern diesel exhaust-cleaning technology possible.

That explains the destination. Getting there requires a chemical process called hydrotreating.

Hydrotreating: Removing Sulfur with Hydrogen

Hydrotreating means treating a petroleum stream with hydrogen to remove unwanted substances or change certain molecules. When the goal is sulfur removal, the process is also called hydrodesulfurization—literally, removing sulfur using hydrogen.

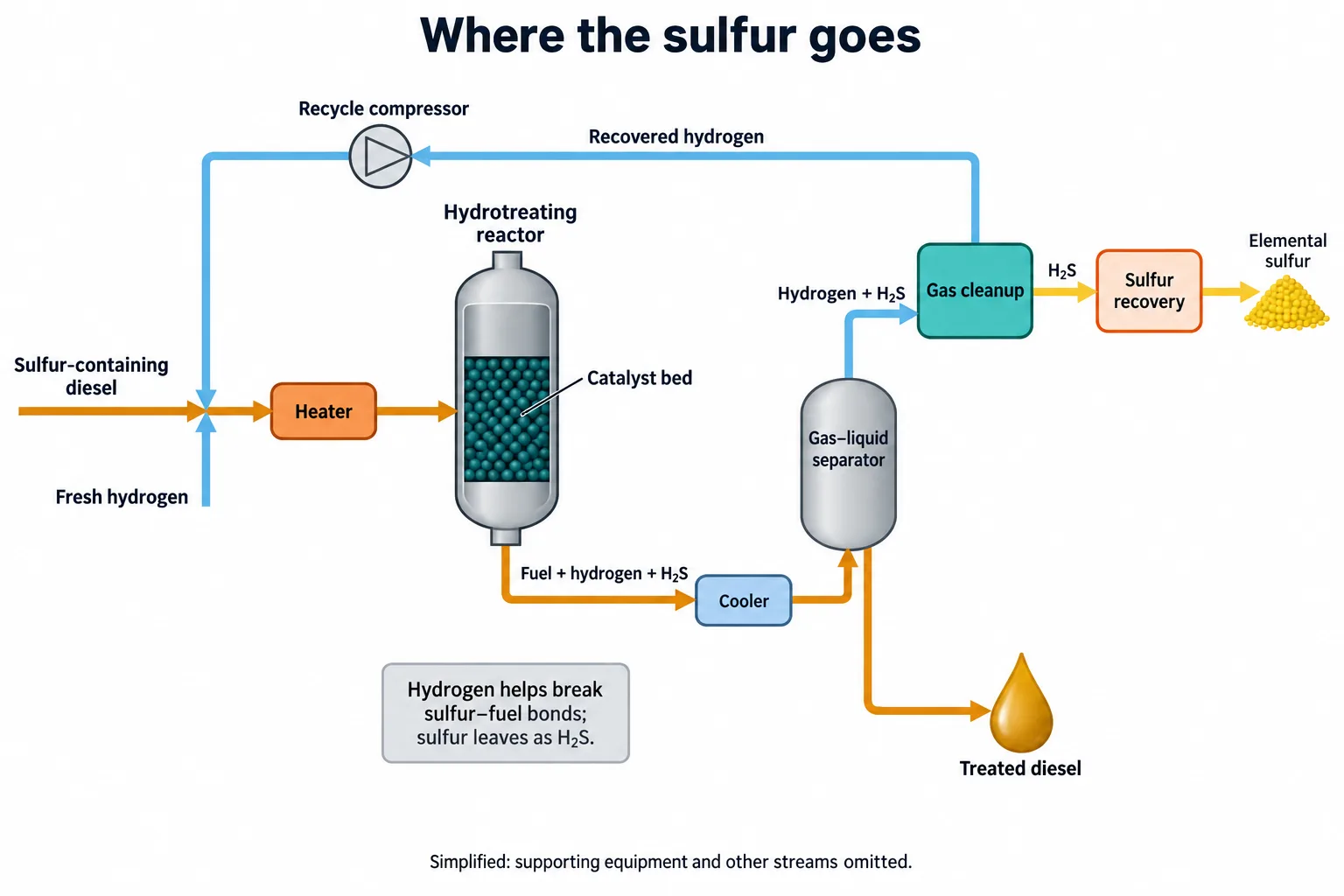

The basic idea is straightforward:

1. Bring the sulfur-containing fuel into contact with hydrogen.
2. Use heat, pressure, and a catalyst to make them react.
3. Convert the sulfur into a substance that can be separated from the fuel.

The actual refinery equipment makes those steps happen continuously, at industrial scale.

1. Heat the fuel and add hydrogen

A refinery takes a diesel-range stream—a mixture of hydrocarbons, or molecules made mainly of hydrogen and carbon, suitable for making diesel—and mixes it with hydrogen gas.

The mixture is heated and sent into a pressurized reactor. Heat helps the reactions proceed fast enough to be useful. High hydrogen pressure helps make hydrogen available where the reactions occur.

This is already a clue to the cost: you need heaters, compressors, piping, and vessels built to handle hot materials under pressure.

2. Pass the mixture over a catalyst

Inside the reactor, the mixture passes over a catalyst, a material that speeds up a chemical reaction without being consumed in the same way as the reactants.

Common hydrotreating catalysts are based on cobalt–molybdenum or nickel–molybdenum, supported on alumina, a porous form of aluminum oxide. The porous support provides a large internal surface where reactions can take place.

The catalyst helps hydrogen react with sulfur-containing molecules. Chemical bonds linking sulfur to the fuel molecules are broken, and the sulfur leaves as hydrogen sulfide, or ${\mathrm{H}}_2\mathrm{S}$.

A simplified description is:

Sulfur-containing fuel molecules react with hydrogen, producing treated hydrocarbons and hydrogen sulfide.

This is a summary rather than a complete chemical equation: the exact reaction depends on the starting molecule.

3. Separate the sulfur-bearing gas

The refinery then cools and separates the reactor’s output. The treated diesel is separated from gases, and the hydrogen sulfide is removed from the gas stream. Hydrogen that has not reacted can be recovered and recycled through the process.

At this stage, the sulfur has been removed from the diesel—but it has not disappeared. It has been transferred into another chemical form that the refinery must handle safely.

4. Recover the sulfur

Hydrogen sulfide is highly toxic, so it cannot simply be released. Refineries commonly send it to a Claus sulfur-recovery unit, which uses controlled chemical reactions to turn it into elemental sulfur: sulfur no longer bound into fuel molecules or hydrogen sulfide.

That recovered sulfur can be used industrially, including in the production of sulfuric acid.

The complete process therefore involves more than a single reactor. It also needs gas separation, hydrogen circulation, sulfur recovery, and associated safety and emissions-control systems. The U.S. Department of Energy describes these links in cleaner-fuel production.

Why the Last Traces Are the Hardest to Remove

It is tempting to imagine that removing 97 percent of the permitted sulfur simply means doing proportionately more of the same work. But sulfur compounds do not all react equally easily.

Some are relatively easy for the catalyst and hydrogen to attack. Others have more resistant molecular structures. In certain compounds, nearby groups of atoms physically hinder access to the sulfur-containing part of the molecule.

As treatment proceeds, the easy compounds disappear first. What remains becomes increasingly dominated by the difficult ones.

An analogy is cleaning a baking tray: the loose residue comes off quickly, but the last baked-on spots can take most of your effort. The chemistry is different, but the pattern is similar—the final increment of cleanliness can require disproportionately more work.

To reach the 15 ppm limit, a refinery may need some combination of:

• Higher hydrogen pressure, requiring more demanding equipment and compression.
• More hydrogen, increasing the supply and processing burden.
• A more capable catalyst system, suited to difficult sulfur compounds.
• Longer contact time, giving the slower reactions time to proceed.
• Carefully controlled operating temperatures, balancing reaction performance against equipment and catalyst constraints.

Longer contact time also has an economic consequence: for a given reactor size, processing the fuel more slowly can reduce how much it can treat per day.

The starting material matters, too. Two diesel streams with the same total sulfur concentration may contain different sulfur compounds and therefore require different treatment intensities. Sulfur concentration alone does not tell you how difficult a fuel will be to clean.

Where the Expense Comes From

The cost of ULSD includes both capital costs—money spent building or upgrading facilities—and operating costs, the continuing expense of running them.

Hydrogen is often a major operating expense. Refineries commonly make it from natural gas, so its cost can be affected by natural-gas prices as well as the energy and equipment needed to produce it.

Catalysts also age or become contaminated. Maintaining fuel quality as catalyst activity declines adds another operating challenge. Refinery maintenance and catalyst replacement require planning because shutdowns interrupt production.

EPA assessments of cleaner-diesel requirements examine these interacting costs, rather than treating sulfur removal as a simple filtration expense. See the EPA’s technical discussion of ULSD production.

What This Means for the Price at the Pump

Producing ULSD adds refining costs, but there is no universal, separate “sulfur-removal fee” per gallon. The expense is folded into the economics of making and supplying diesel.

How much it costs depends on the incoming petroleum stream, the refinery’s equipment, hydrogen and energy prices, catalyst performance, and how intensively the fuel must be treated.

Nor does sulfur removal, by itself, explain every diesel-price premium or price swing. Crude-oil prices, supply and demand, refinery availability, distribution, and taxes also matter.

The central point is narrower—and more revealing:

Refineries do not simply catch sulfur in a filter. They chemically remove it, separate it, and recover it safely. Reaching the last few parts per million is often the most demanding part of the job.

That demanding final cleanup is what allows today’s diesel fuel and modern exhaust-control systems to work together.
