How Turbine Blades Survive Gas Hotter Than Their Melting Point

Inside a jet engine, fuel burns in compressed air, producing a stream of extremely hot gas. Immediately downstream, that gas rushes past turbine blades—and can be hotter than the melting point of the metal those blades are made from.

So why don’t the blades melt?

The answer is not a metal that somehow remains solid above its melting point. It is a carefully managed difference between the temperature of the gas and the temperature of the blade.

Hot Gas Does Not Automatically Mean Equally Hot Metal

When hot gas flows past a cooler blade, heat moves from the gas into the metal. But the blade does not instantly become as hot as its surroundings. Its temperature depends on how quickly heat enters—and how quickly that heat is removed.

You already encounter this distinction in ordinary life. The air inside an oven can be much hotter than food you have just placed inside it. The food takes time to warm because heat transfer is a process, not an instantaneous equalizing of temperatures.

A turbine blade goes a step further: it is actively cooled throughout operation.

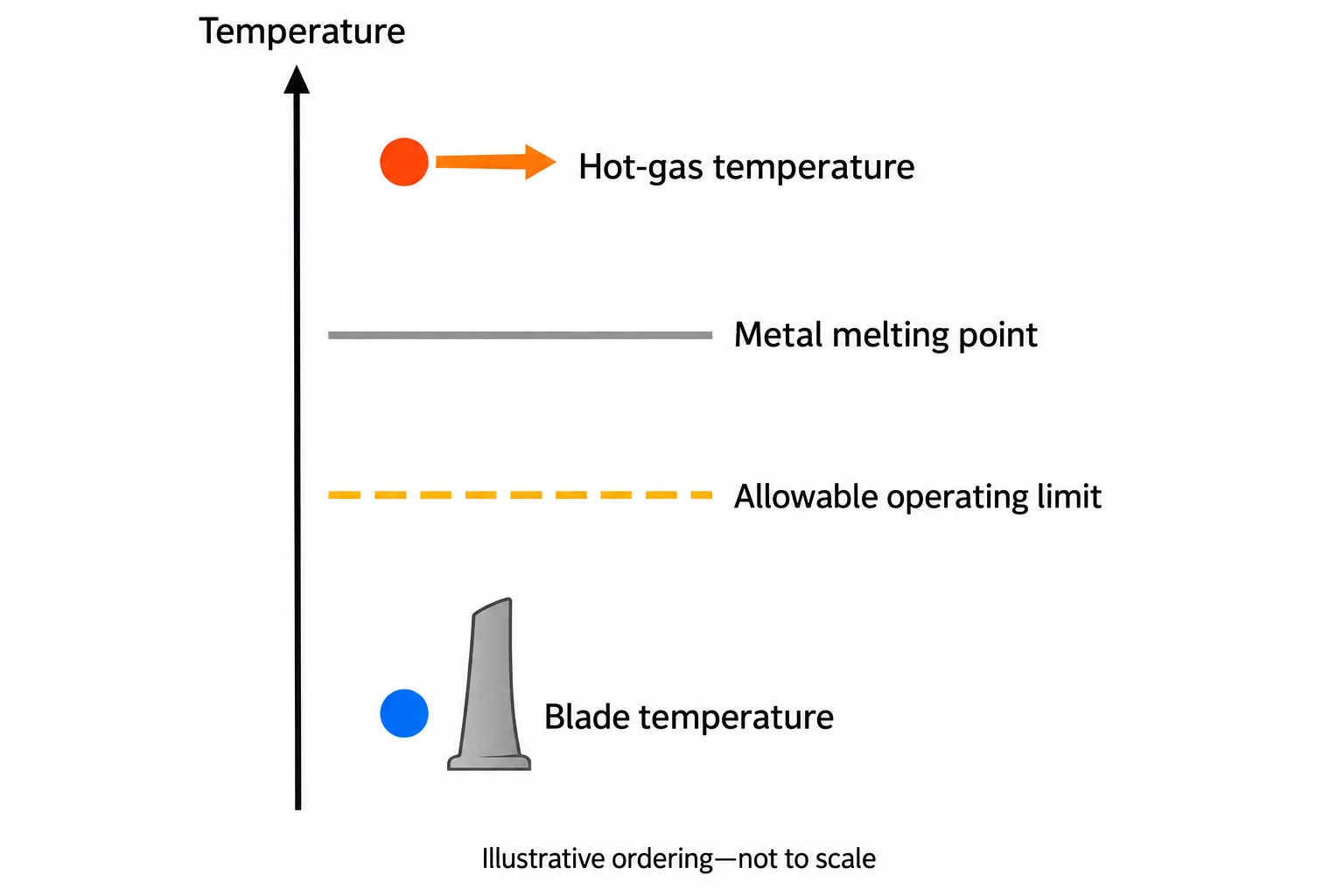

A blade can survive gas hotter than its melting point as long as the blade itself stays below its allowable operating temperature.

That last phrase matters. The goal is not merely to prevent melting. The metal must remain cool enough to stay strong while carrying enormous mechanical loads.

The hottest turbine blades achieve this through four defenses working together:

None is a complete solution by itself. Together, they make the temperature difference possible.

Cooling the Blade from the Inside

A hollow blade with an air supply

A turbine blade may look like a solid piece of metal, but the blades exposed to the hottest gas contain internal cooling passages.

Some air from the engine’s compressor—the section that squeezes incoming air to higher pressure—is diverted into these passages rather than being used directly in combustion.

This compressed air is already warm. Compressing air raises its temperature. Nevertheless, it is considerably cooler than the gas leaving the combustor, so it can serve as a coolant.

As the cooling air flows through the blade, it absorbs heat from the internal metal surfaces and carries that heat away.

Think of the blade as having a built-in ventilation system. Rather than allowing heat to accumulate unchecked, the engine continuously supplies air that can remove it.

“Cool” is a relative term

You do not need refrigerated air to cool a turbine blade. You need air that is cooler than the metal you are trying to protect.

That is an important general principle: cooling means transferring heat to something at a lower temperature, not necessarily making an object cold by everyday standards.

The blade can therefore remain extremely hot while still being successfully cooled. Its temperature is simply held far below what exposure to the combustion gas would otherwise produce.

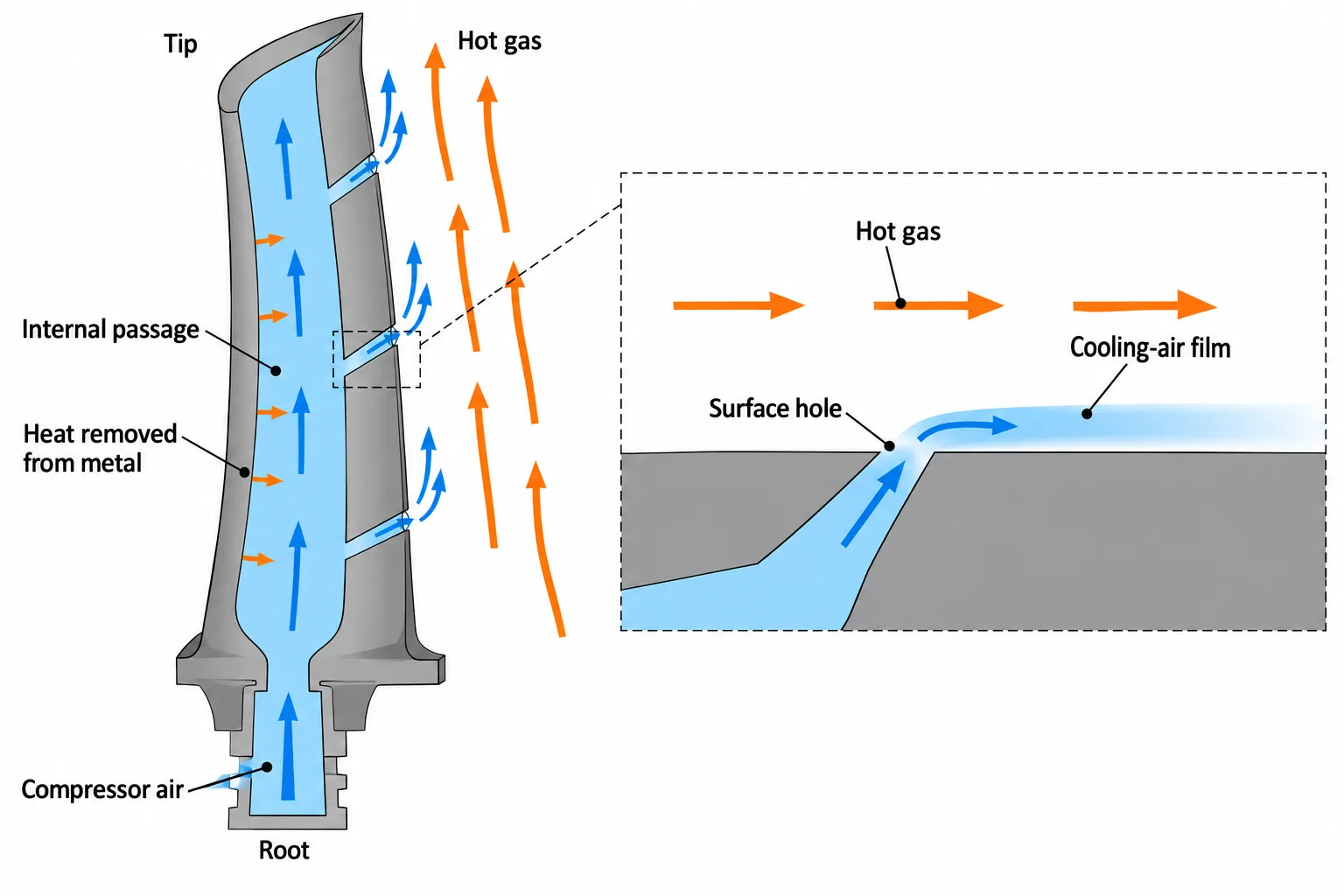

Shielding the Outside with a Film of Air

Internal cooling deals with heat after it enters the blade. Film cooling helps reduce the heat arriving in the first place.

Some of the cooling air escapes through tiny holes in the blade’s surface. These holes are arranged so that the air flows along the outside, forming a relatively cooler layer between the metal and the main stream of hot gas.

The “film” is not a solid coating. It is a moving layer of air.

You can picture it as an air curtain hugging the blade. The hot combustion gas still flows past, but the blade’s surface is partly protected from direct exposure to the hottest stream.

The protection is not perfect. The cooling air mixes with the surrounding gas, and the layer changes as it travels over the blade. Even so, it reduces the heating of the surface.

Internal and film cooling therefore perform complementary jobs:

• Inside the blade: cooling air absorbs heat from the metal.
• Outside the blade: cooling air reduces the blade’s exposure to hot gas.

Often, the air contributes to both: it flows through internal passages and then exits through surface holes.

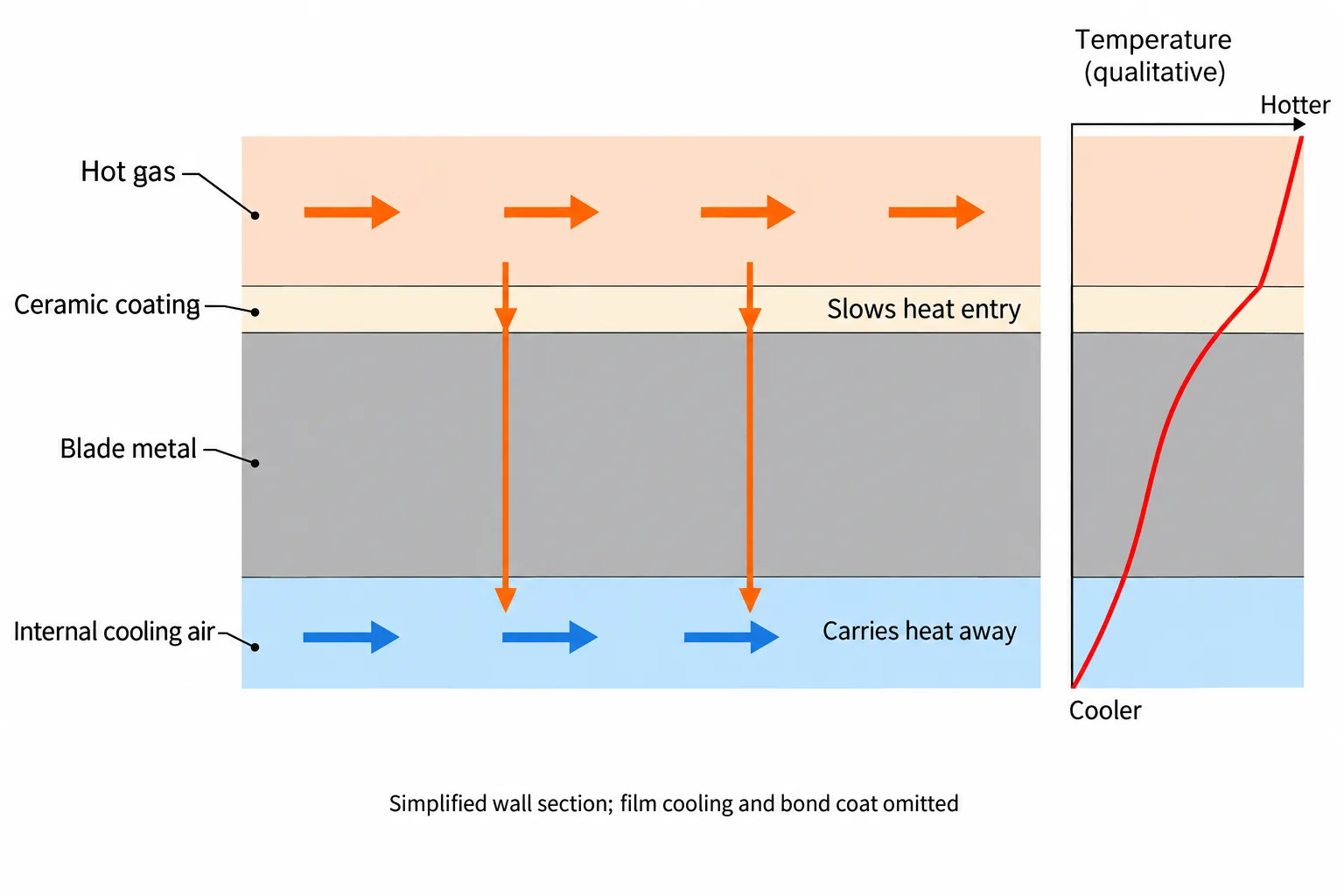

Adding a Ceramic Thermal Barrier

The metal also benefits from a thermal-barrier coating: a thin ceramic layer applied to its surface.

A ceramic is a nonmetallic material; the ceramics used here resist high temperatures and conduct heat less readily than the underlying metal. That makes the coating a form of insulation.

Its purpose is not to make heat transfer disappear. Instead, it adds resistance to heat flowing from the hot surface toward the metal beneath.

This allows the coating’s outer surface to be hotter than the underlying blade metal. Combined with cooling on the inside, that resistance helps maintain a substantial temperature difference.

The roles are distinct:

Insulation slows heat coming in; cooling carries heat away.

A coating alone would not keep the blade cool indefinitely. If heat continued entering with no way to remove it, the blade would keep warming. The coating works because it is part of a larger cooling system.

Why the Metal Still Matters

Even with cooling and insulation, turbine blades operate in an exceptionally demanding environment. They need a material that can retain useful strength at high temperature.

For this reason, the hottest blades are typically made from nickel-based superalloys—alloys, or mixtures of metals, engineered for high-temperature service.

“Superalloy” does not mean the material can operate safely while molten. It means the solid metal has properties suited to conditions that would severely weaken more ordinary materials.

And temperature is only part of the challenge. Rotating blades experience enormous outward loads as the turbine spins. Their metal must withstand those loads while hot.

Failure can happen before melting

A metal’s melting point is not its safe operating limit.

At high temperatures, a blade can lose strength or slowly deform under sustained load. This gradual deformation is called creep. A blade can therefore become unsafe while it is still entirely solid.

The relevant target is the blade’s allowable operating temperature: a temperature compatible with the strength and service life required of it.

Keeping below the melting point is necessary, but it is not enough.

A Controlled Heat Balance, Not a Paradox

Fuel burning in compressed air produces the hot gas that drives the turbine. The blades survive that gas because their temperature is actively controlled:

1. Internal airflow removes heat.
2. A surface film of air reduces heating.
3. A ceramic coating slows heat transfer.
4. A heat-resistant alloy withstands the temperature and loads that remain.

The key distinction is simple: being surrounded by gas above your melting point is not the same as reaching that melting point yourself.

A turbine blade survives by keeping that distinction intact—continuously, while the engine runs.

Further reading: NASA technical reports on turbine cooling, film cooling, and thermal-barrier coatings.
