Clearing the Crossbar: How Launch Angle and Wind Shape a Field Goal

A field goal is not simply a contest to see how far you can kick a football. The ball has to be high enough at the posts, stay between the uprights, and get past defenders near the line of scrimmage. Sending it higher helps with some of those demands—but can make others harder.

That is why there is no single launch angle that guarantees success. The useful question is: For this distance, launch speed, and wind, which flight path gives the ball enough clearance without sacrificing too much reach?

The Basic Trade-Off: Height Versus Forward Speed

The launch angle is the angle at which the ball leaves the kicker’s foot, measured upward from horizontal. A low angle sends the ball mostly forward; a steep angle sends more of its motion upward.

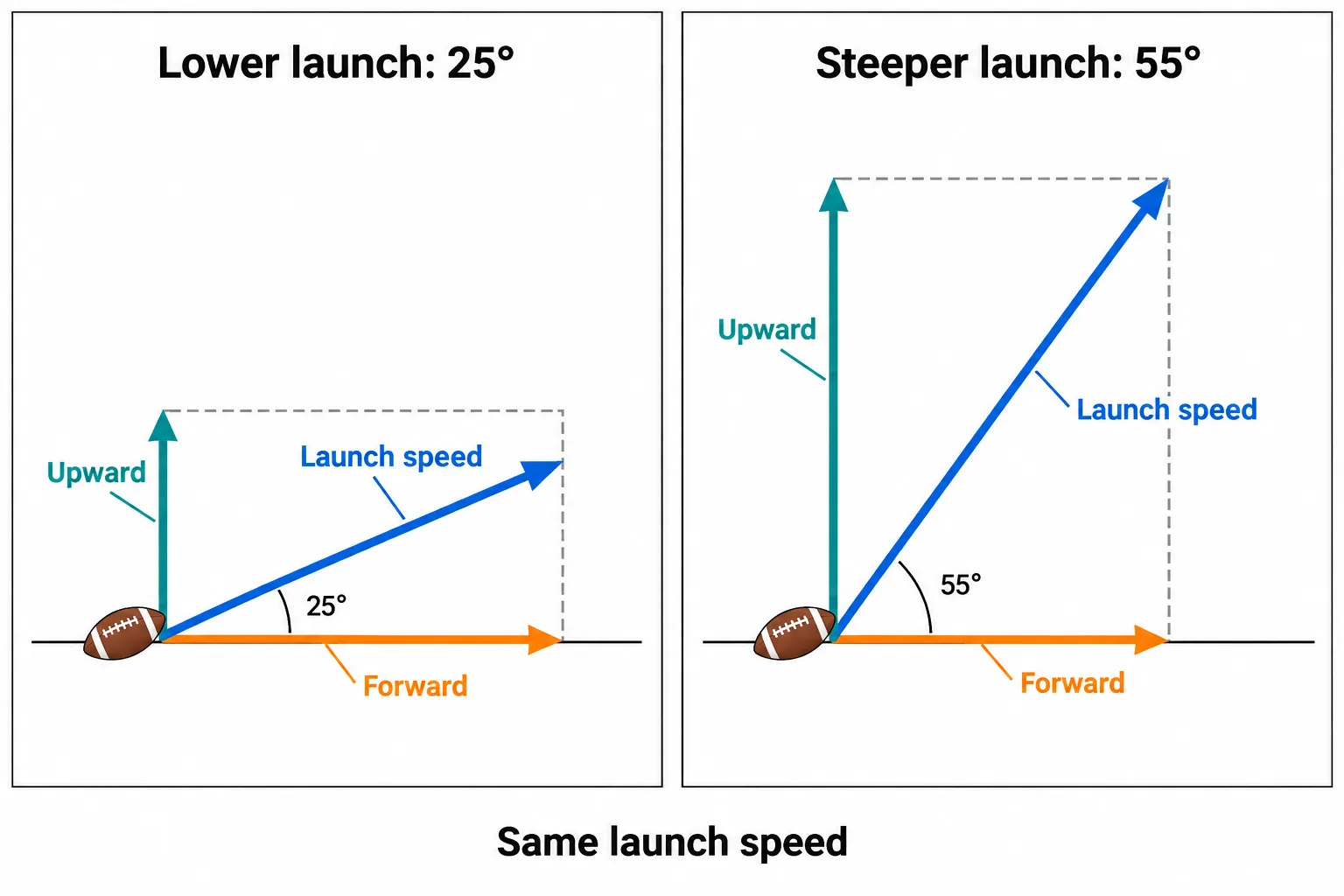

Imagine dividing the ball’s starting speed into two parts:

• Horizontal speed carries it toward the posts.
• Vertical speed lifts it above the ground.

At a fixed launch speed, increasing one component necessarily reduces the other. A steeper kick rises more sharply, but moves toward the goal more slowly. Meanwhile, gravity continually pulls it downward.

A successful field goal needs height in the right place—not just a high peak somewhere along the flight.

This distinction matters because the crossbar is not necessarily beneath the ball’s highest point. The ball might reach its peak well before the goal and be descending rapidly when it arrives.

Why “lower means farther” needs a qualification

Lowering a very steep kick can improve its reach by directing more speed forward. But flattening the trajectory indefinitely does not keep adding distance: a ball kicked almost horizontally hits the ground quickly.

Even the familiar textbook result that a $45^{\circ }$ launch gives maximum range has limits. It assumes no air resistance and that the ball lands at the same height from which it was launched. A field goal has a different requirement: the ball must still be above a raised crossbar when it reaches a particular distance.

What Angle Is Enough to Clear the Bar?

The crossbar is 10 feet, or about 3.05 metres, above the ground. To estimate whether a kick clears it, you need three things besides the angle:

1. Distance to the posts
2. Launch speed
3. Starting height

In a simplified model that ignores air resistance, the ball’s height at the posts is

Here:

• $h(d)$ is the ball’s height when it reaches the posts.
• $h_0$ is its starting height.
• $d$ is the horizontal distance from the kick to the posts.
• $v$ is its launch speed.
• $\theta$ is its launch angle.
• $g$ is gravitational acceleration, about $9.81{\text{m/s}}^2$ near Earth’s surface—the rate at which gravity changes its downward speed.

In words, the equation adds the height gained from the upward launch direction, then subtracts the height lost because gravity pulls the ball down during its flight. This is a standard projectile-motion model, meaning a model of an object moving after launch under gravity. OpenStax’s textbook treatment hosted by Queens College explains the underlying physics.

To clear the crossbar, the calculated height must exceed 3.05 metres.

A concrete example: a 40-yard kick

Suppose the ball:

• Travels 40 yards, or about 36.6 metres, to the posts
• Leaves the foot at 25 metres per second, roughly 56 mph
• Starts close to ground level
• Experiences no air resistance

Under those assumptions, the lower angle at which it just reaches crossbar height is about $23^{\circ }$.

That number is useful for understanding the physics, but it is not a recommended kicking angle.

At the threshold, the kick has essentially no clearance margin. Real air resistance changes its path, launch speed varies, and the ball must also get over nearby defenders. A practical trajectory needs room for those complications.

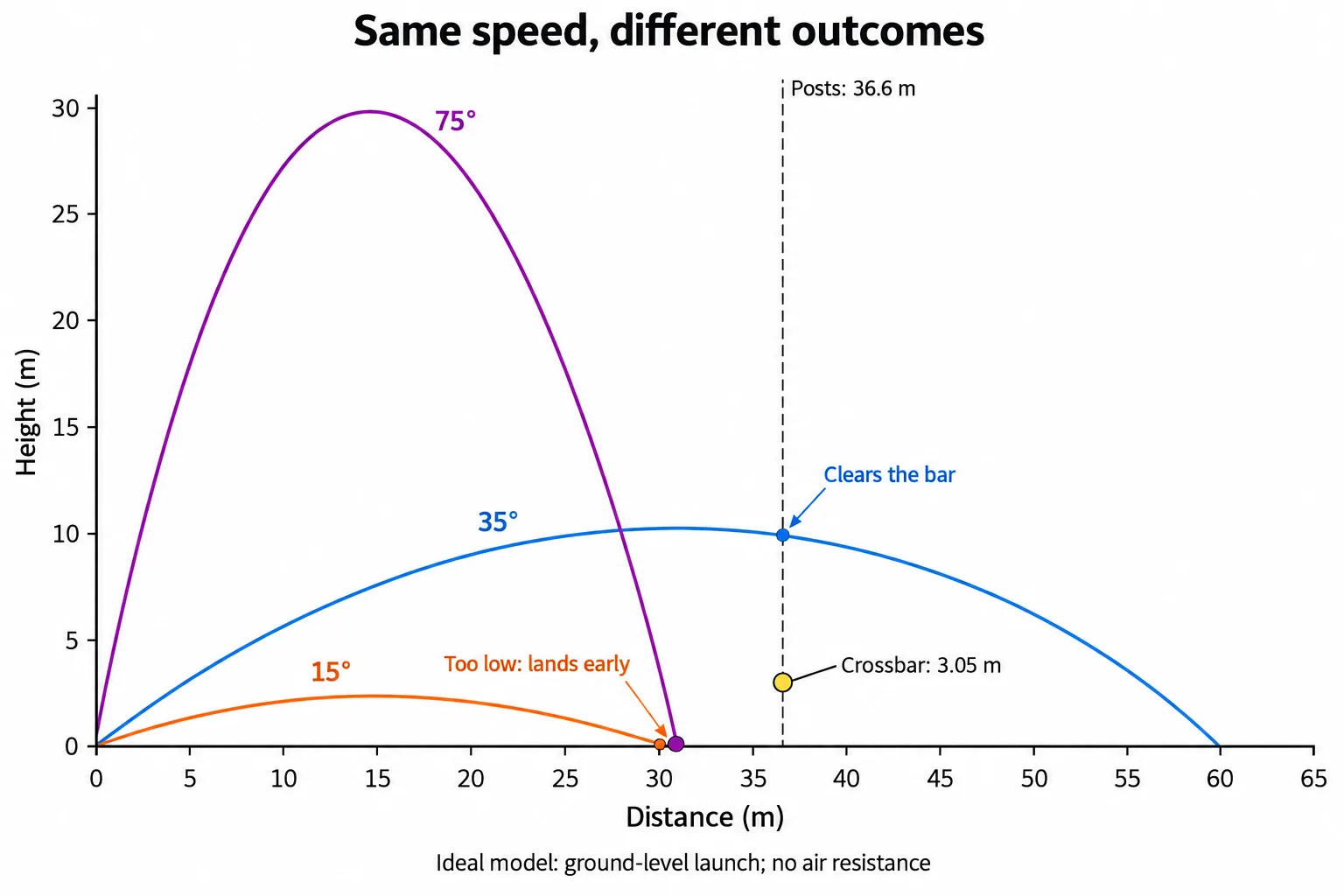

Nor does every angle above $23^{\circ }$ work. At a sufficiently steep angle, too little of the ball’s speed points toward the posts, and it falls short.

Clearing Defenders Is a Different Constraint

The crossbar is far away. Defenders are close.

A relatively flat kick might have enough height at the goal in an ideal calculation, yet still pass too low over the line of scrimmage. Raising the launch angle helps the ball climb more quickly near the kicker, reducing the opportunity for a block.

But that extra early height comes at the cost of forward speed.

You can think of the kicker’s challenge as finding a window of useful trajectories:

• Too low, and the ball risks being blocked or passing under the bar.
• Too steep, and it may not carry far enough.
• Between those extremes, there may be paths that satisfy both demands.

The size of that window depends strongly on launch speed and distance. An angle alone tells you very little without them.

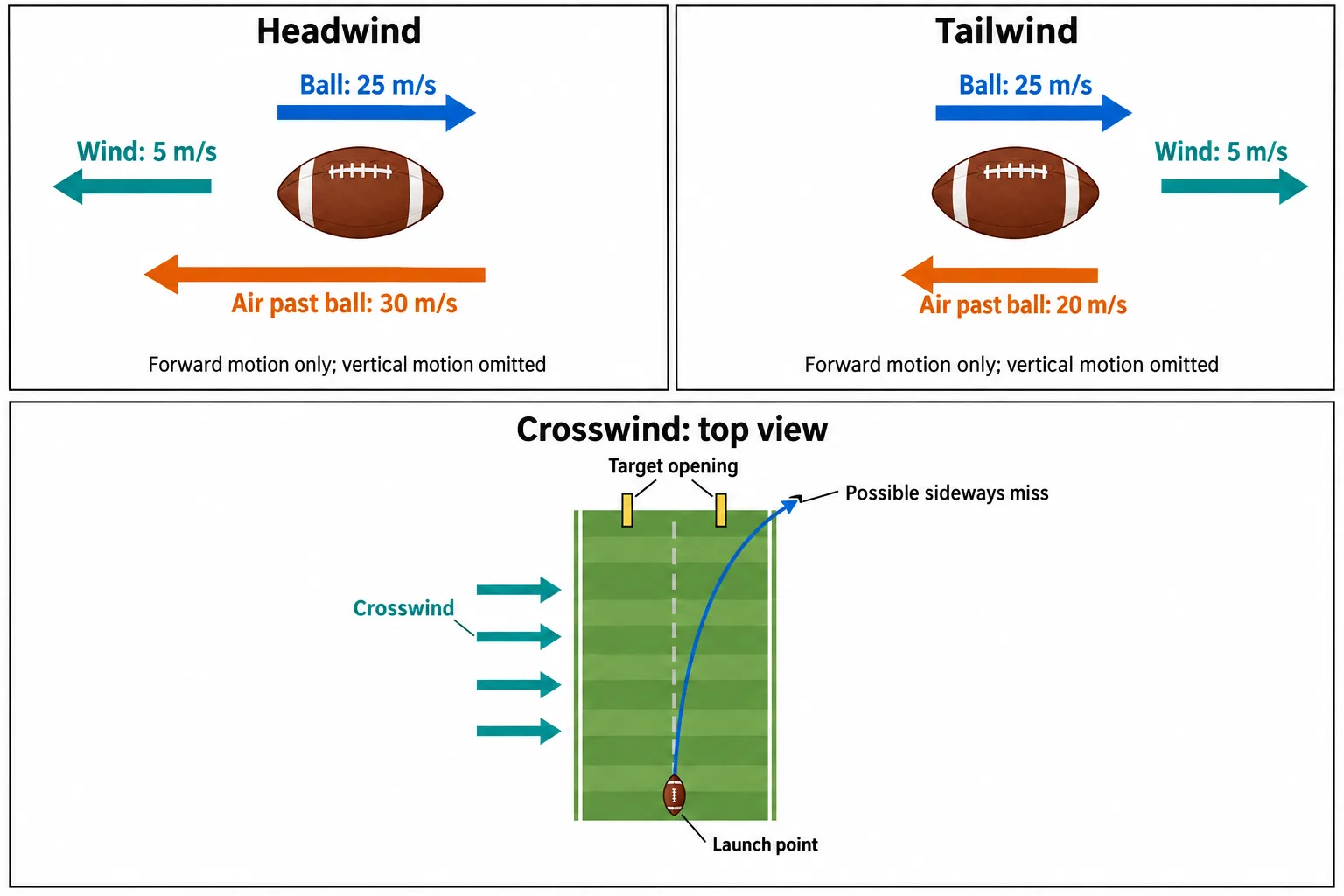

Wind Changes the Flight—not the Target

Wind does not change the crossbar’s height. It changes the forces acting on the ball as it travels.

The key idea is air-relative velocity: how fast, and in what direction, the ball moves compared with the surrounding air. Drag, the aerodynamic force that resists motion through air, depends on that relative motion—not just on the ball’s speed over the field.

If the ball is travelling forward into a headwind, it encounters air faster than it would in still conditions. If the wind blows in the same direction as the ball, the relative airflow is usually reduced.

These are broad tendencies, not a complete prediction of any particular kick.

Why there is no “add two degrees” wind rule

It is tempting to answer a headwind by simply kicking higher. But a steeper trajectory also reduces forward speed and changes the time the ball spends in the air. Those effects interact with drag throughout the flight.

A football adds another complication: its shape does not present the same surface to the airflow at every moment. As an end-over-end ball rotates, its orientation—which part faces the airflow—changes, affecting aerodynamic forces. Research on toppling football flight examines this complexity.

The useful adjustment therefore depends on several factors together:

• Wind speed and direction
• Kick distance
• Launch speed and angle
• The ball’s rotation and orientation

There is no dependable universal conversion from a wind reading to an angle correction.

A Long Kick Also Magnifies Sideways Error

Crossbar clearance is only half the target problem. The ball must also stay between the uprights.

Even without wind, a small error in horizontal aim grows into a larger sideways miss over a longer distance. For example, an initial aiming error of one degree corresponds to roughly:

• 0.64 metres sideways over 40 yards
• 0.96 metres sideways over 60 yards

Those figures describe simple aiming geometry, before adding wind-driven movement.

A crosswind introduces another source of sideways deviation. So a ball can have ample height and distance yet still fail because its path does not pass through the opening.

The Goal Is a Margin, Not a Magic Angle

The best way to understand field-goal launch angle is as a balancing act. You need enough upward motion to clear defenders and the crossbar, enough forward motion to reach the posts, and enough directional control to remain between the uprights.

The idealized calculation gives you a starting point. Wind and the football’s changing orientation explain why that calculation is not the whole answer.

The right trajectory is not the one that barely works on paper. It is the one that leaves room for the real flight to differ from the ideal.
