The Physics of a Field Goal: Why “Straight and Far” Isn’t Enough

A field goal can look perfect off the foot and still fall short, drift wide, or strike the crossbar. That is because a kicker is not simply trying to send a football a long way. You are watching someone launch a tumbling object through a narrow window—while defenders rush toward it and the air reshapes its flight.

To understand what makes a kick good, start with the target, then work backward to the foot.

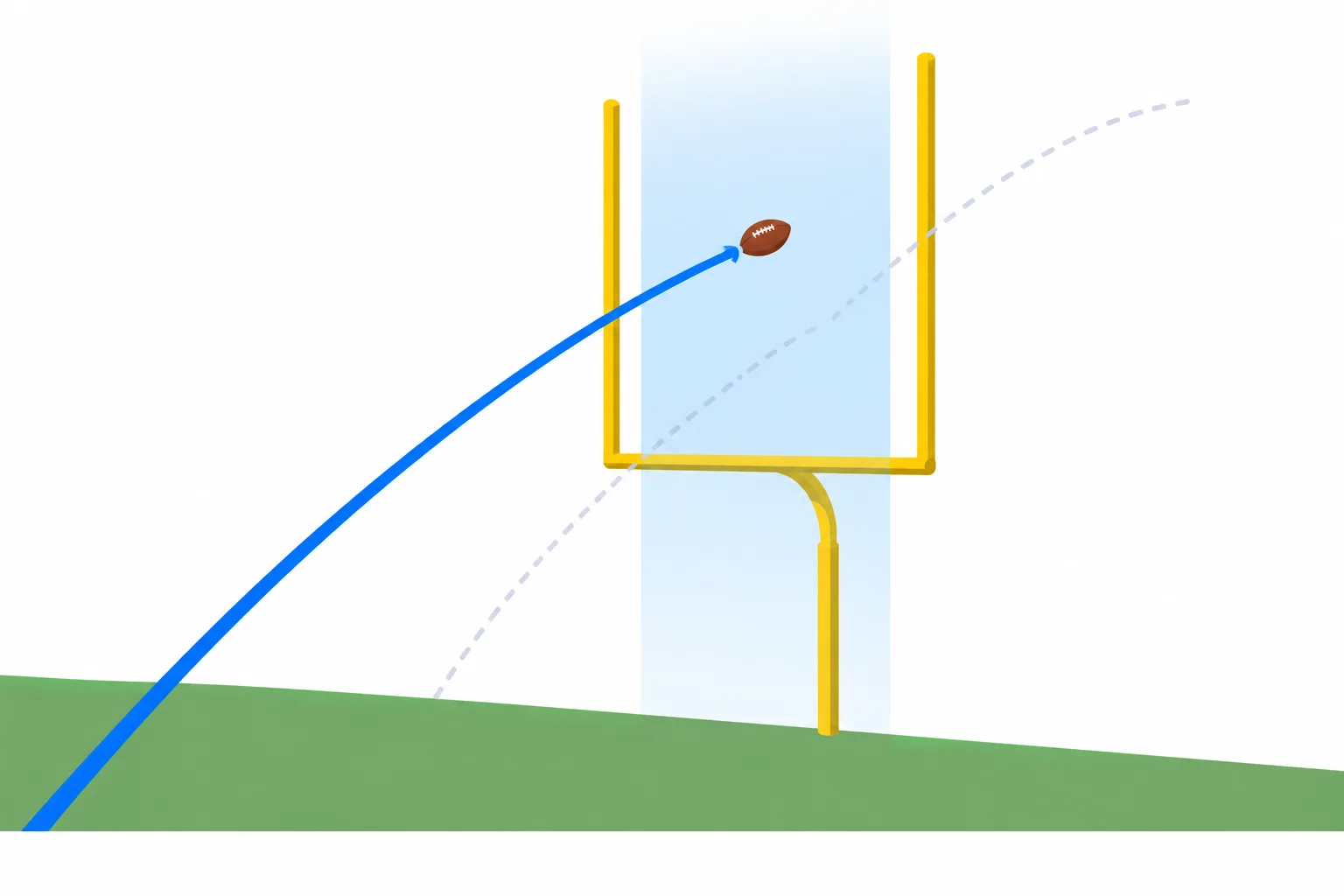

The Target Is a Window, Not a Landing Spot

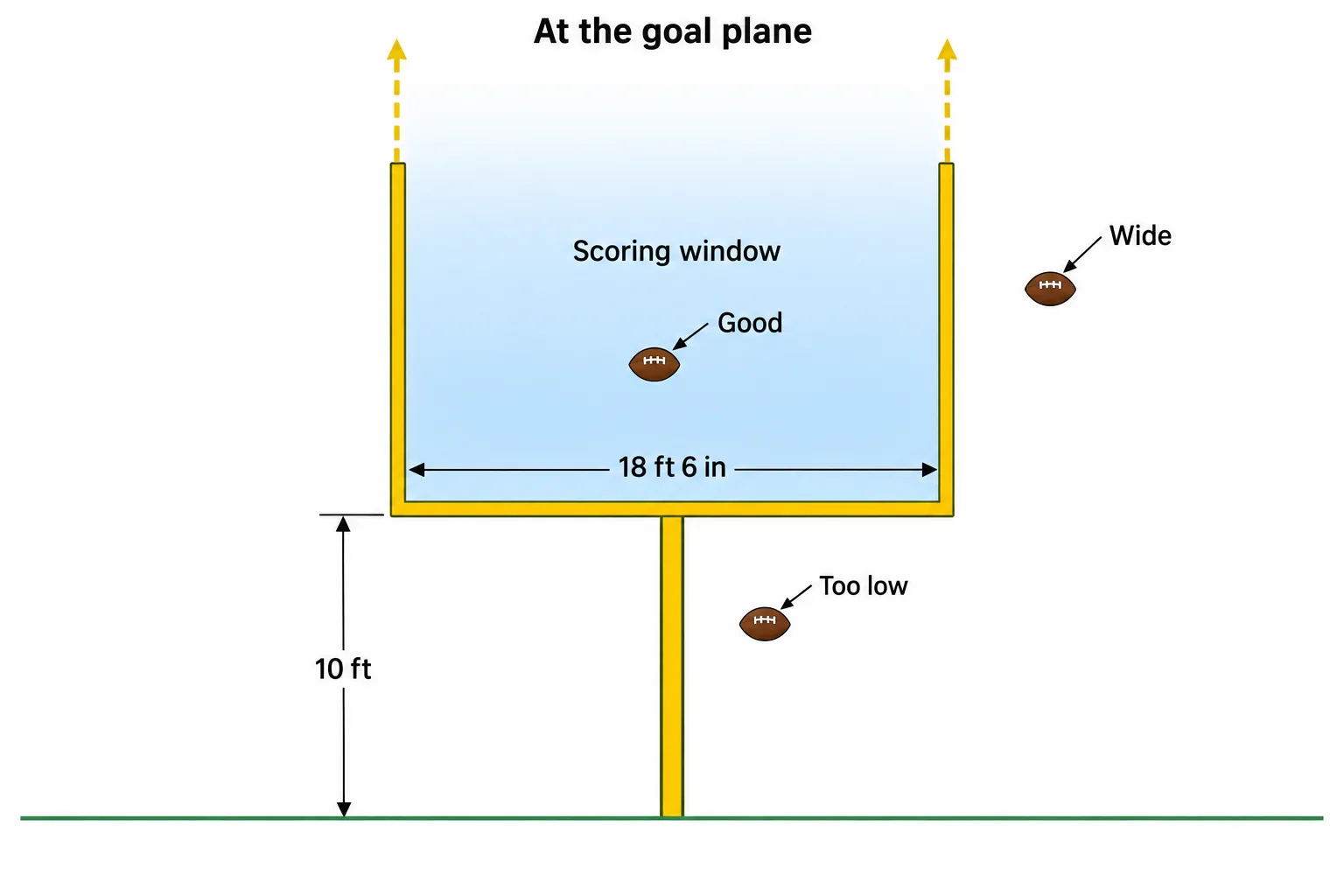

In the NFL, the crossbar is 10 feet high, and the uprights are 18 feet 6 inches apart. The goal sits at the back of the end zone. For a successful field goal, the ball must pass above the crossbar and between the uprights—or their upward extensions.

What matters is where the ball crosses the goal plane, not where it lands afterward.

Think of the goal plane as an invisible vertical sheet through the posts. A kick can land well beyond the goal and still miss because it crossed that sheet too far left or right. Another can barely clear the crossbar and count just as much as one that sails high overhead.

That gives the kicker two simultaneous jobs:

• Produce enough height and distance to clear the crossbar.
• Control sideways direction tightly enough to stay between the uprights.

Before either job is finished, the ball must also get past defenders. A low, powerful kick may have plenty of range but never make it beyond an outstretched hand.

Speed and Angle: The Basic Trade-Off

Once the ball leaves the foot, gravity accelerates it downward. Its initial motion has two parts: forward motion toward the goal and upward motion away from the turf.

The launch angle is the angle of that initial flight above the ground. A steeper angle sends more of the ball’s speed upward; a flatter angle sends more forward.

Why neither “higher” nor “harder” is enough

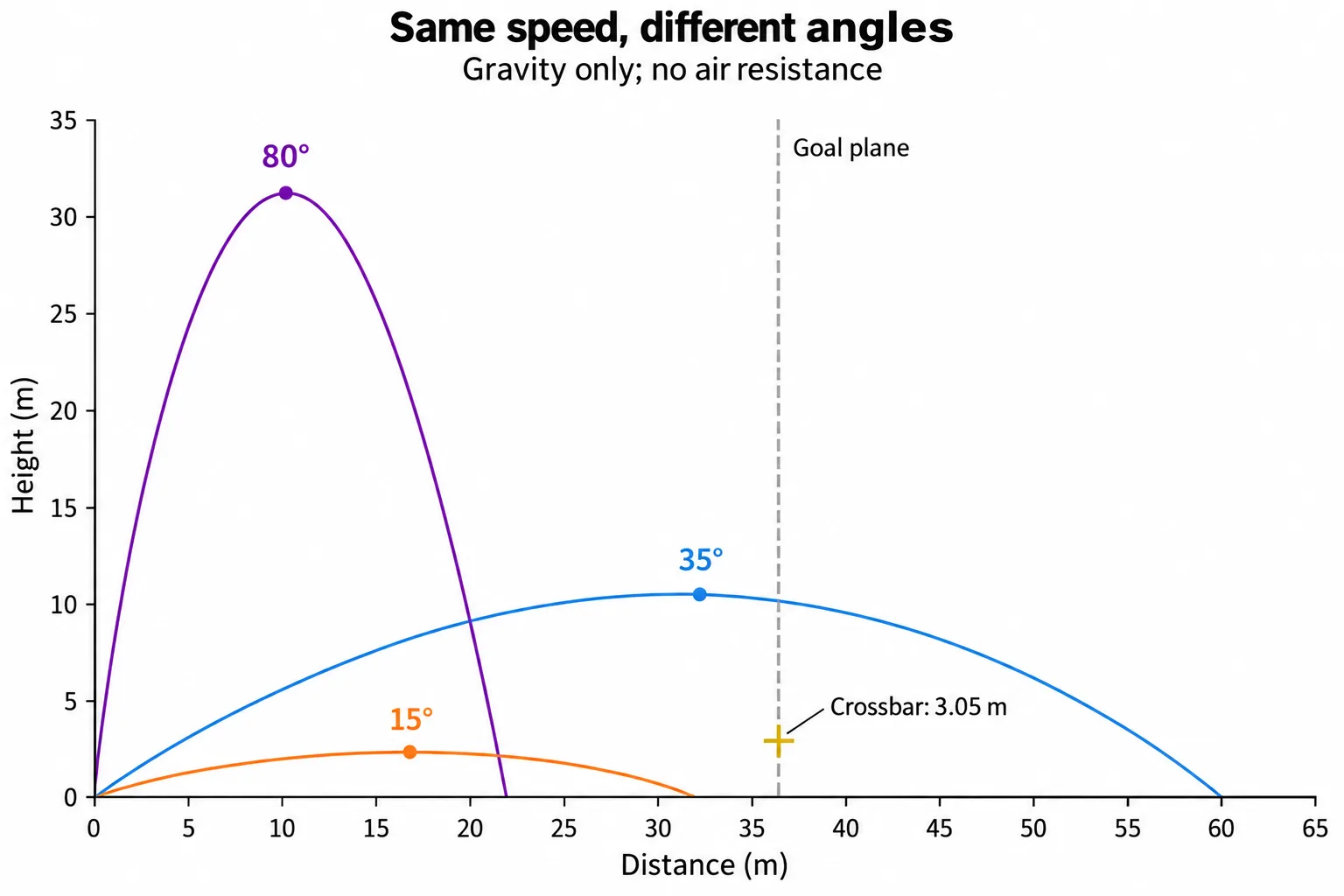

At a fixed launch speed:

• A low angle produces a flatter flight, risking a block or a kick under the crossbar.
• A higher angle helps with early clearance, but leaves less speed directed toward the goal.
• An excessively high angle sends the ball upward at the expense of useful distance.

Raising an extremely low angle can improve range, too. The point is not that lower always means farther, but that the kicker must find a workable balance.

A simple projectile model—a calculation that includes gravity but ignores air resistance—describes the ball’s height as:

Here:

• $h(x)$ is the ball’s height after traveling horizontal distance $x$.
• $h_0$ is its starting height.
• $v$ is its launch speed.
• $\theta$ is its launch angle.
• $g$ is gravitational acceleration, about $9.8$ meters per second squared.

In words, the ball gains height from its upward launch, while gravity increasingly pulls its path below that initial direction.

Is there a minimum angle to clear the crossbar?

There is no single required angle. The answer depends on distance, speed, and starting height.

For example, suppose the ball must travel 40 yards to the goal, leaves the foot at 25 meters per second—about 56 mph—and starts near ground level. In the gravity-only model, the lower angle that just clears the crossbar is about 23 degrees.

That is a mathematical threshold, not a recommended kicking angle. It provides essentially no clearance margin, ignores air resistance, and does not account for defenders. An actual kick needs room for all three.

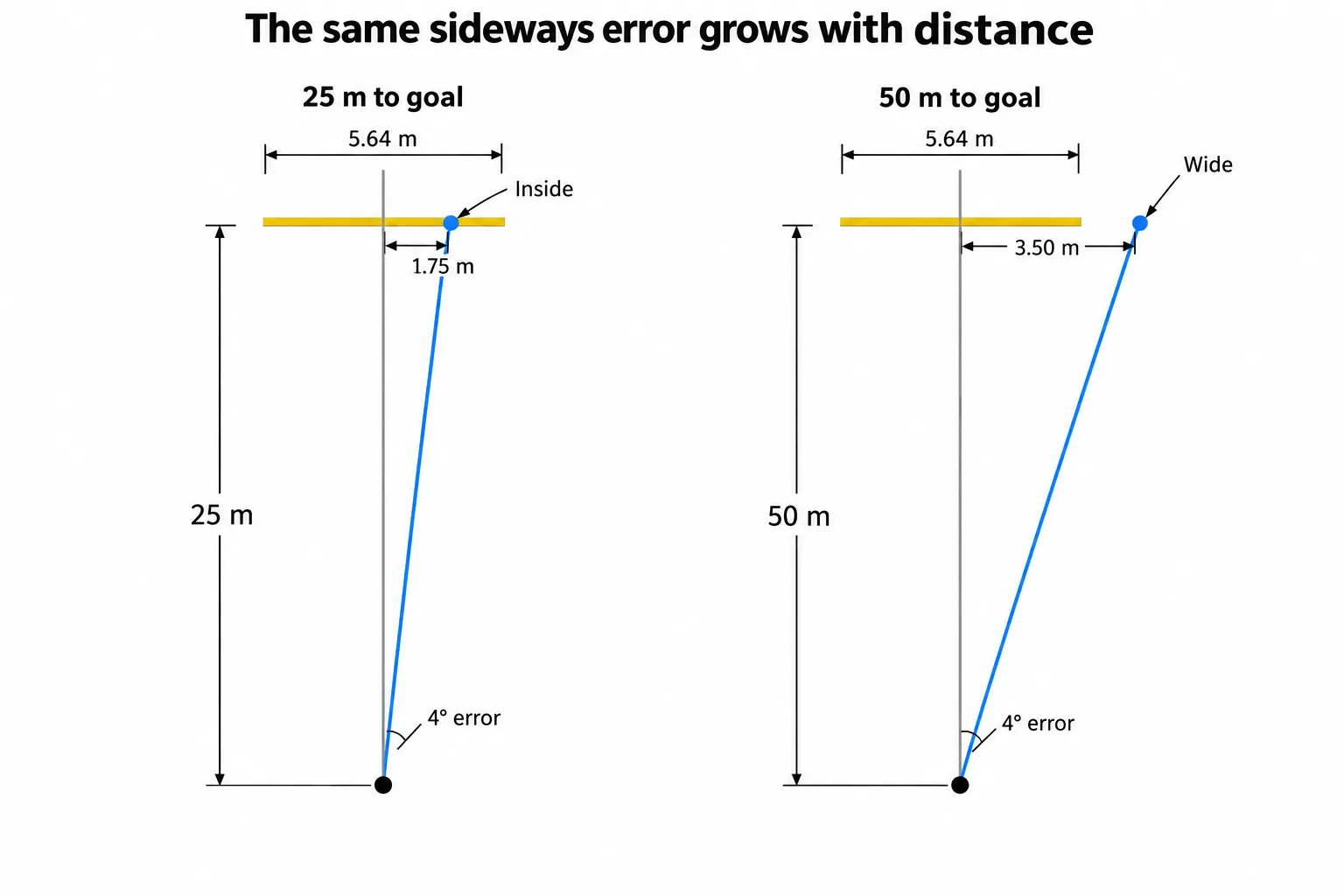

Why long kicks demand finer aim

A small sideways error grows with distance. Imagine drawing two nearly parallel lines from the ball: the farther you follow them, the farther apart they become.

The uprights do not get narrower on a long attempt, but the allowable aiming error does. That is why extra leg strength alone cannot solve long-distance kicking.

Air Changes the Flight

The gravity-only model is a useful starting point, but a football does not travel through empty space.

Drag is the aerodynamic force that opposes the ball’s motion through the air. It slows the ball and reduces its carry. For a football, drag also varies as the ball tumbles and presents different shapes to the airflow.

A standard relationship is:

Here, $D$ is drag force, $\rho$ is air density, $C_D$ is a number describing aerodynamic resistance, $A$ is a reference area, and $v_{\text{air}}$ is the ball’s speed relative to the surrounding air.

You do not need to calculate those quantities to see the important lessons:

• Denser air generally creates more drag.
• Greater speed through the air creates much more drag.
• The ball’s shape and orientation affect its resistance.

That phrase relative to the air is especially important when the wind blows.

Wind changes the trajectory, not the target

These are tendencies, not precise adjustment rules. Wind also changes the aerodynamic forces on a spinning football. There is no dependable instruction such as “add two degrees for a 10-mph headwind.” The right adjustment depends on the kick’s speed, spin, orientation, and conditions.

End-Over-End Spin: Regular Motion, Not a Straight-Flight Guarantee

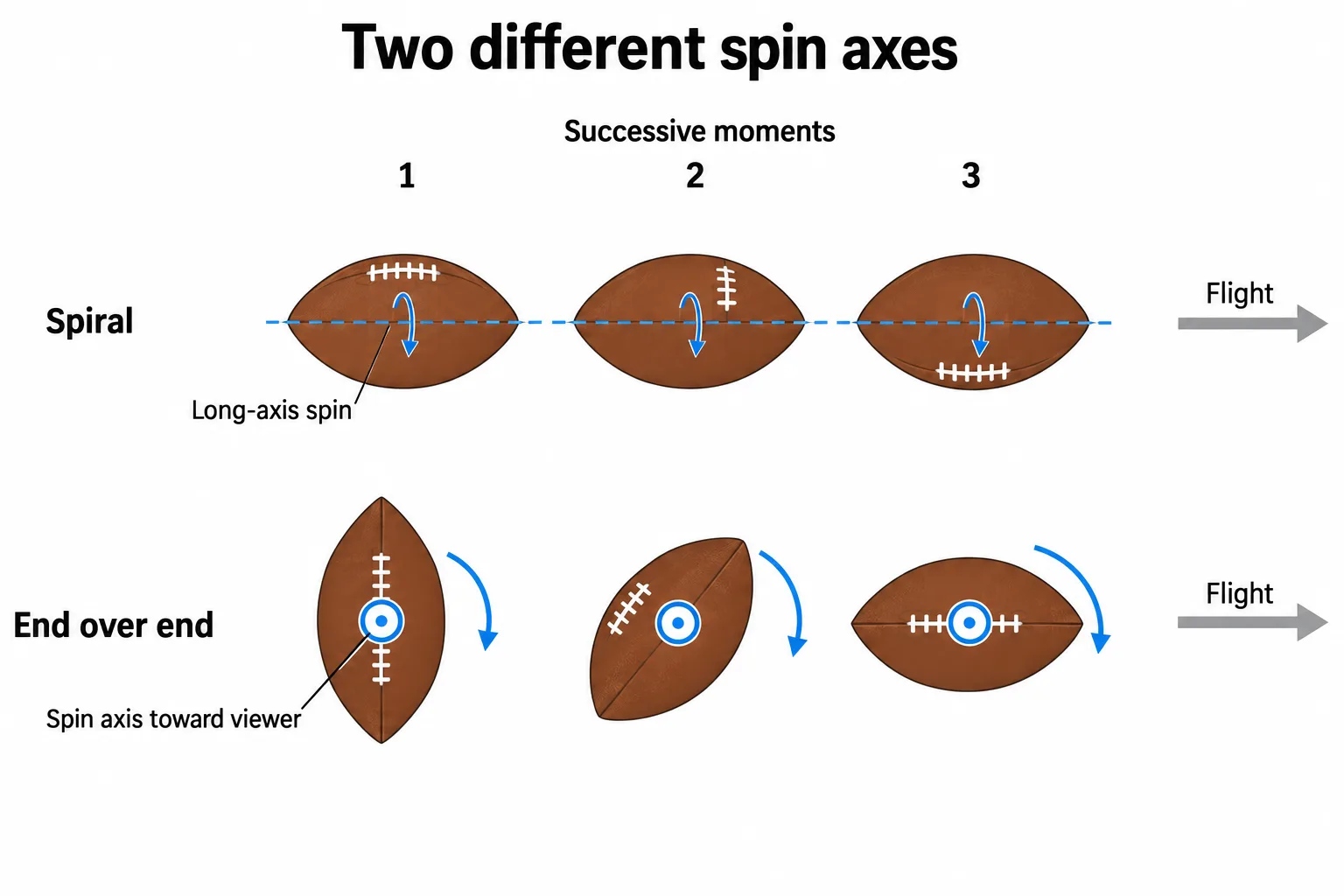

A thrown spiral rotates around the football’s long axis, the line running from one pointed end to the other. A field-goal kick usually rotates end over end, around an axis roughly across the ball’s width.

That distinction matters. A spiral tends to keep the nose oriented along its flight. End-over-end rotation repeatedly turns the nose through the air, exposing a changing profile.

Clean rotation makes the tumbling motion more regular. It does not lock the nose forward or guarantee a straight trajectory.

The Magnus effect: how spin can bend a path

The Magnus effect is a force perpendicular to an object’s motion through the air that arises because rotation changes the airflow around it. Its direction depends on the spin axis—the imaginary line around which the ball rotates.

For a football, the detailed airflow is complicated by its elongated shape. Still, wind-tunnel experiments on end-over-end footballs show that rotation changes both drag and lift. In this context, lift means an aerodynamic force perpendicular to the airflow; it need not point upward.

That helps explain two different flight behaviors:

• Extra rise or drop: With a suitably oriented spin axis, the spin-related force can act upward or downward, making the ball fly above or below a gravity-and-drag-only prediction.
• A sideways hook: A differently oriented spin axis can contribute a lateral force, bending the flight left or right.

Ordinary, well-aligned end-over-end rotation mainly affects the vertical path. Tilt or additional rotation can complicate that motion and contribute to sideways deviation. Wind can also make a kick curve, so a visible hook does not, by itself, identify the cause.

More spin does not automatically mean more distance, more height, or better accuracy. Its direction and alignment matter.

An aerodynamic simulation study found its most accurate kicks when the ball began vertically aligned, without extra rotation around its long axis. That is a model-specific result, but it reinforces the practical importance of a clean strike.

Why Denver and Provo Can Help a Long Kick

Higher elevation generally means lower air density: fewer air molecules occupy a given volume. With less air resisting the ball, the same launch can carry farther.

Under standard-atmosphere conditions, Denver’s roughly mile-high elevation has air about 14% less dense than at sea level. At the same relative airspeed, and with the same orientation and aerodynamic properties, that means about 14% less drag. Provo is at a somewhat lower but comparable elevation, so the same general advantage applies.

But 14% less drag does not mean 14% more distance. Gravity continues pulling downward, the ball slows throughout flight, and the aerodynamic forces change along the way.

How many extra yards?

A few yards is a reasonable scale, not a fixed allowance. One illustrative physics model estimated roughly four to five additional yards of total flight for a particular kick moved from sea level to Denver.

You should distinguish that from extra field-goal range. A field goal must still be above the crossbar at the goal plane; extra distance before landing does not translate directly into an equal increase in scoring range. Likewise, estimates based on punts should not be treated as field-goal measurements.

Altitude can make a borderline kick arrive higher at the posts. It does not give the kicker a stronger leg, meaningfully remove gravity, or guarantee accuracy. Wind and temperature can change the advantage on a particular day.

Why Soccer-Style Kicking Took Over

All these flight effects begin with the launch conditions: the ball’s speed, upward angle, sideways direction, and rotation at the moment it leaves the foot.

That is where technique matters.

Traditional straight-on kickers approached more directly and struck with the toe. Soccer-style kickers approach at an angle, plant beside the ball, rotate through the hip, and strike with the firm instep, the upper-inner part of the foot.

The angled approach supports an effective swinging motion that can generate substantial foot speed and transfer energy to the ball. The broader contact surface also offers useful control, although precise placement and timing remain essential.

Pete Gogolak helped establish soccer-style kicking in American professional football in the 1960s. As the approach proved successful, it displaced straight-on kicking.

The old technique was not physically incapable of working. Soccer-style kicking offered most kickers a better combination of range and control.

A Successful Kick Is a Chain of Small Successes

The snap and hold set the ball’s position. The plant foot and leg swing establish the strike. Contact determines speed, angle, direction, and spin. Gravity, air, and wind then shape the flight.

A successful field goal must survive every link:

1. Launch cleanly.
2. Clear the rush.
3. Retain enough speed and height.
4. Stay within the narrow sideways margin.
5. Cross the goal plane above the bar.

That is what makes the play so demanding. The kicker controls the launch—but success depends on where the entire flight carries the ball.
