How Fuel-Jettison Systems Work—and Why Only Some Airliners Have Them

An airliner that needs to return soon after takeoff may face an awkward problem: it is still carrying much of the fuel intended for a long journey. That fuel adds weight, and the aircraft may be heavier than its normal landing limit.

Some airliners can release fuel in flight to reduce that weight. Others cannot—and were designed that way deliberately. The difference is not simply a matter of aircraft size, nor does an emergency return automatically mean fuel must be dumped.

Why an Airliner Might Need to Lose Weight

Airliners have several certified weight limits. Two matter especially here:

• Maximum takeoff weight is the highest weight at which the aircraft is approved to begin its takeoff, subject to the runway and operating conditions.
• Maximum landing weight is the highest weight approved for normal landings.

On many aircraft, maximum takeoff weight is higher than maximum landing weight. That makes sense for a long flight: the aircraft leaves with a large fuel load, burns much of it during the journey, and arrives considerably lighter.

A return shortly after departure disrupts that plan. Whether the reason is unusual cabin fumes, a technical fault, or a medical emergency, there may not have been enough time to burn the expected fuel.

The crew then has three broad options:

Fuel dumping is one way to prepare for a return—not a prerequisite for every emergency landing.

If there is a serious threat, such as suspected smoke or fire, delaying a landing merely to reach the normal landing-weight limit may be the wrong choice.

What a Fuel-Jettison System Actually Does

A fuel-jettison system, commonly called a fuel-dumping system, is a controlled means of releasing fuel from an aircraft in flight.

It is not a single valve that suddenly empties every tank. The aircraft still needs fuel to keep its engines running, and removing weight from the wrong places could upset its balance.

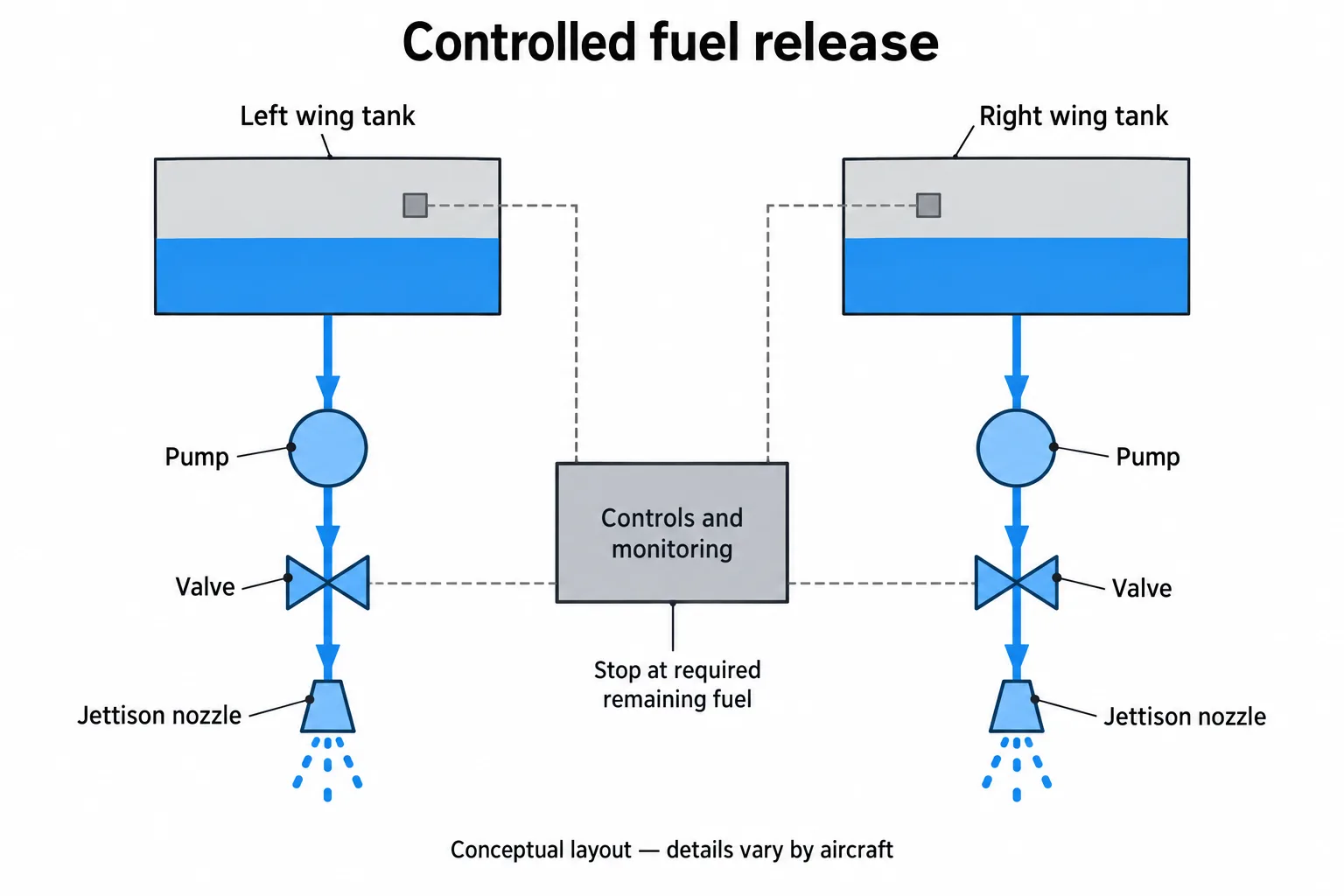

From the tanks to dedicated outlets

Although the details vary by aircraft, the basic process is straightforward:

1. The crew activates the system. Depending on the design, this involves arming it and selecting the appropriate controls.
2. Pumps move fuel through designated plumbing. Valves direct it toward the jettison outlets.
3. Fuel exits through dedicated nozzles. These are positioned to discharge it away from the aircraft.
4. The crew and system monitor the remaining fuel. The release is stopped when the required reduction has been achieved, either automatically or through crew action, depending on the design.

On aircraft such as the Boeing 777, the crew can select a quantity of fuel to remain. The system can stop dumping at that quantity and manage fuel removal to help keep the aircraft within its balance limits.

That balance matters. An aircraft’s centre of gravity is the point around which its weight is balanced. As fuel leaves different tanks, that point can move. A jettison system therefore has to do more than remove weight: it must do so in a controlled way.

The process takes time. Its duration depends on how much fuel needs to be removed and the system’s discharge rate. It is not an instant way to make a heavy aircraft light.

Why Only Some Airliners Have One

It is tempting to assume that any aircraft whose takeoff-weight limit exceeds its landing-weight limit must have a dumping system. That is not the rule.

A jettison system brings its own costs:

• Additional pumps, valves, pipes, outlets, and controls
• Extra aircraft weight
• More maintenance
• More system complexity and potential failures

Designers fit that equipment when the aircraft’s performance and operating needs justify it.

The certification question is broader than landing weight

Under U.S. transport-aircraft certification rules, a key question is whether the aircraft can meet specified climb-performance requirements after a prompt return from a maximum-weight takeoff without dumping fuel.

Climb performance means the aircraft’s ability to gain altitude under defined conditions. This matters because an approach does not always end in a landing: the crew may need to climb away and try again, including under demanding conditions specified by the certification rules.

The rules therefore do not reduce to “too heavy to land normally, so fuel dumping is mandatory.” They assess whether the aircraft can satisfy particular performance requirements without it. The FAA’s transport-aircraft flight-test guidance explains this certification framework.

There are practical landing considerations, too:

• Landing distance: Can the aircraft stop within the available runway?
• Brake energy: Can the brakes absorb the energy of slowing such a heavy aircraft?
• Tire speed: Will the landing speed remain within tire limits?
• Landing conditions: How do weather and runway condition affect the available margin?

Long-range aircraft carrying very large fuel loads are more likely to benefit from a jettison system. Other airliners are designed to operate without one, using fuel burn or, when necessary and appropriate, an overweight landing.

What Happens to the Fuel After It Leaves?

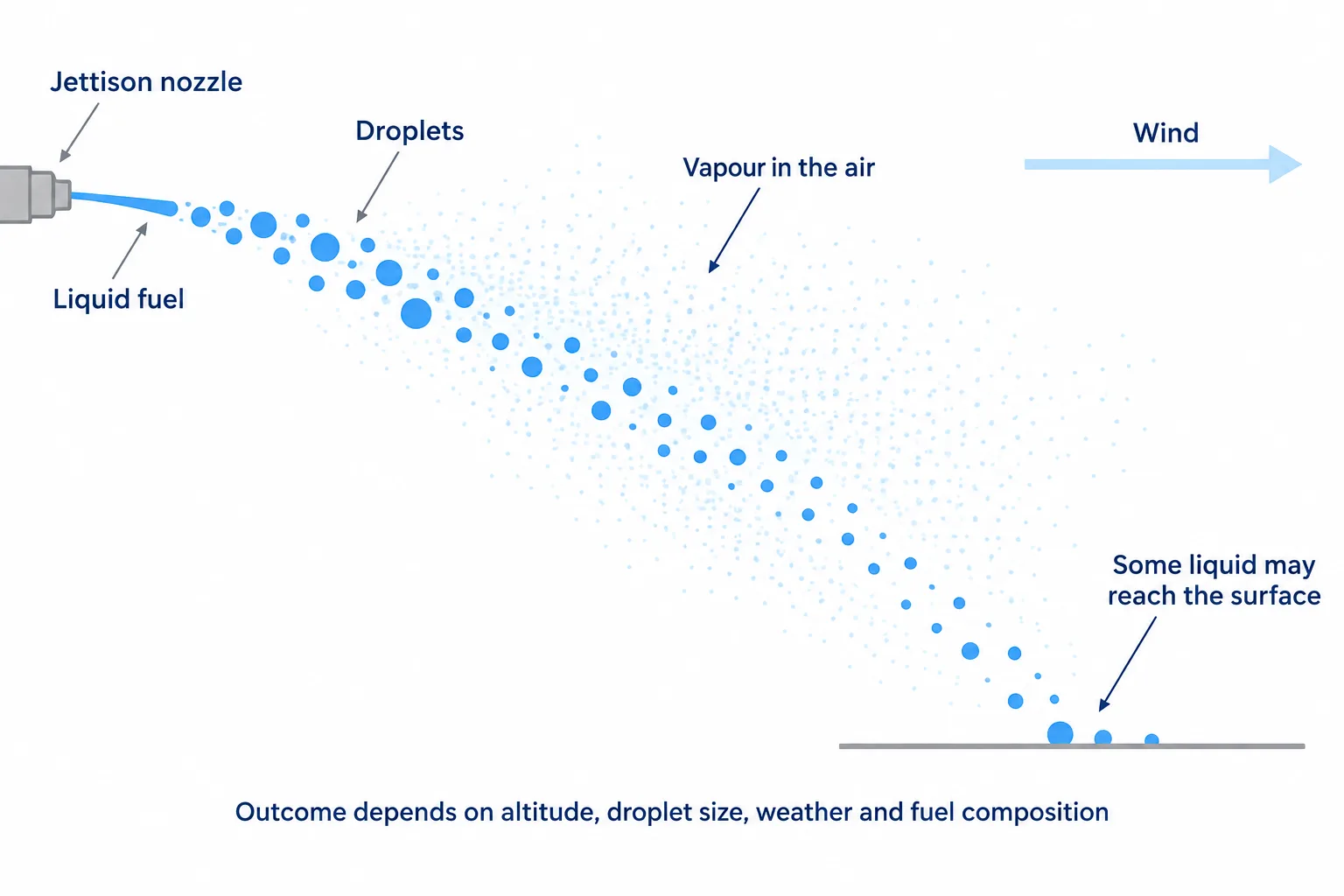

Fuel leaving the nozzles breaks into droplets. Those droplets spread, drift with the air, and evaporate as they fall.

At a suitable altitude and under favourable conditions, little or no liquid fuel may reach the ground. But that is not guaranteed.

The outcome depends on several interacting factors:

• Release altitude: A longer fall generally gives droplets more time to evaporate.
• Droplet size: Smaller droplets generally evaporate more readily than larger ones.
• Weather: Temperature, wind, and atmospheric mixing affect evaporation and where the fuel travels.
• Fuel composition: Different components evaporate at different rates.

A low-altitude release gives the fuel less time to disperse and evaporate. In those circumstances, liquid fuel can reach the surface.

Evaporation is not disappearance. It changes fuel from liquid droplets into vapour dispersed in the atmosphere.

That distinction matters. Saying that fuel “evaporates before reaching the ground” does not mean the release has no environmental consequences.

Is There a Minimum Altitude for Dumping Fuel?

There is no worldwide altitude number that answers every situation. In particular, the United States does not have a blanket rule that every fuel dump must occur above 10,000 feet.

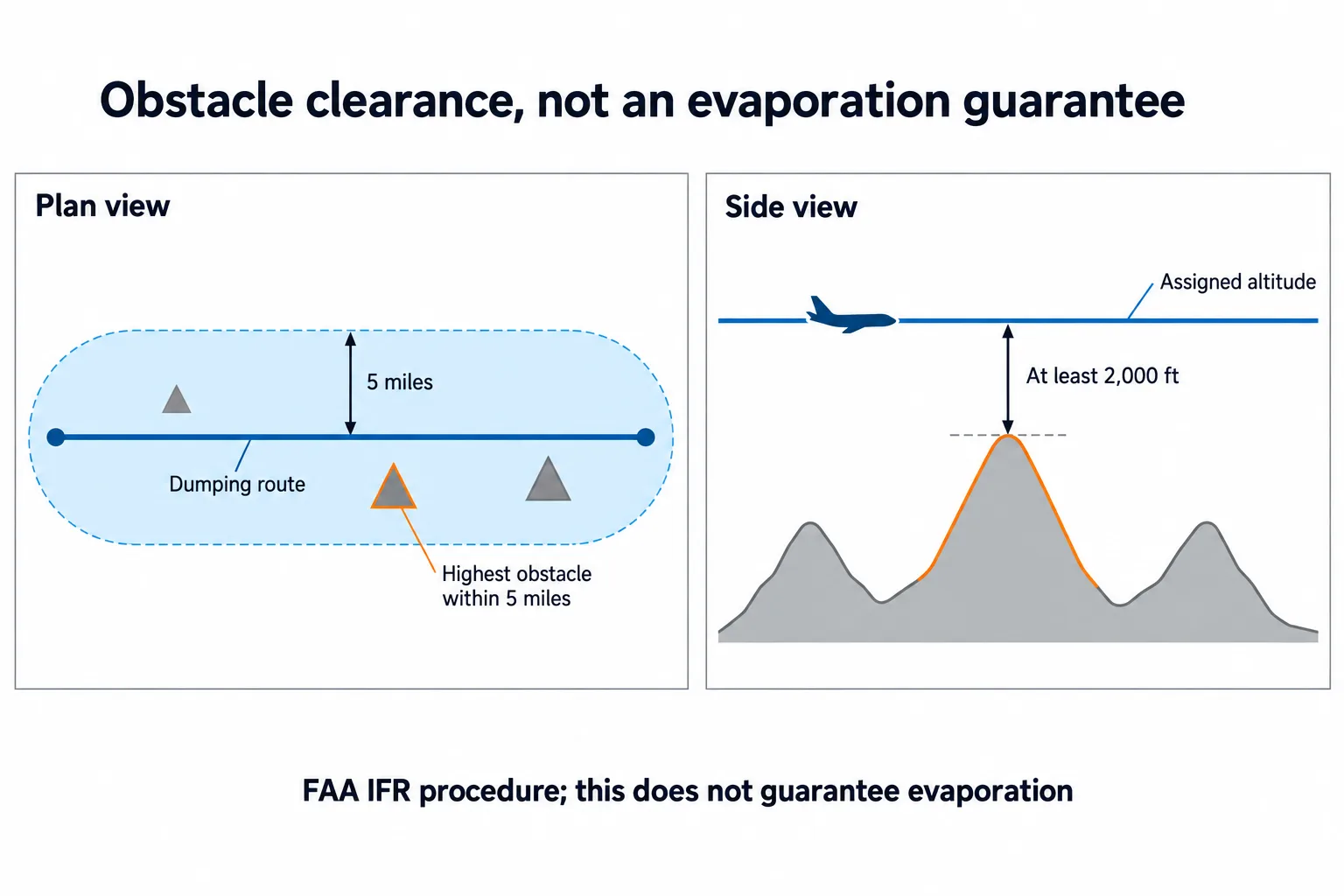

The FAA’s specific instruction for aircraft operating under instrument flight rules, or IFR—the rules used for flight under instrument procedures and air traffic control clearances—is that controllers must assign an altitude at least:

2,000 feet above the highest obstacle within 5 miles of the dumping route or pattern.

That requirement appears in the FAA’s fuel-dumping air traffic control procedures.

It is important to understand what that number means:

An obstacle-clearance minimum is not an evaporation guarantee.

Being high enough to meet the clearance requirement does not establish that every droplet will evaporate before reaching the surface. Weather and the other factors still matter.

How pilots and controllers coordinate

When circumstances permit, the crew tells air traffic control, the service that coordinates aircraft movements, about the intended fuel dump.

Controllers then coordinate the route and altitude, consider relevant weather information, keep other aircraft clear, and broadcast fuel-dumping advisories. Except in an emergency, they may ask the crew to use a different route.

The aim is to find a suitable place to release fuel while maintaining safe separation from terrain and other traffic and reducing the chance of fuel reaching people or the ground.

An urgent emergency may leave fewer choices. The safest available action may require landing sooner, dumping at a less desirable location, or not dumping at all.

A Tool for Managing Weight, Not a Universal Emergency Step

The phrase “if the aircraft has a fuel-jettison system” captures an important distinction. Some airliners have a controlled, purpose-built way to reduce fuel weight quickly; others are designed to meet their requirements without one.

Even when the equipment is available, the decision is not automatic. The crew must weigh the urgency of landing against the benefits of becoming lighter, while considering aircraft performance, runway conditions, weather, and the consequences of releasing fuel.

The goal is not simply to achieve a particular weight. It is to get the aircraft on the ground with the lowest overall risk.
