How Hot Engine Bleed Air Becomes Cool Cabin Air

The air entering an airliner’s cabin may have started its journey inside an engine compressor—at temperatures of several hundred degrees Celsius. That sounds surprising until you follow the plumbing: the air is taken before combustion, cooled in several stages, and delivered at a controlled temperature.

Understanding that route also explains how an engine-related problem can sometimes cause an unusual smell in the cabin, even though passengers are not breathing engine exhaust.

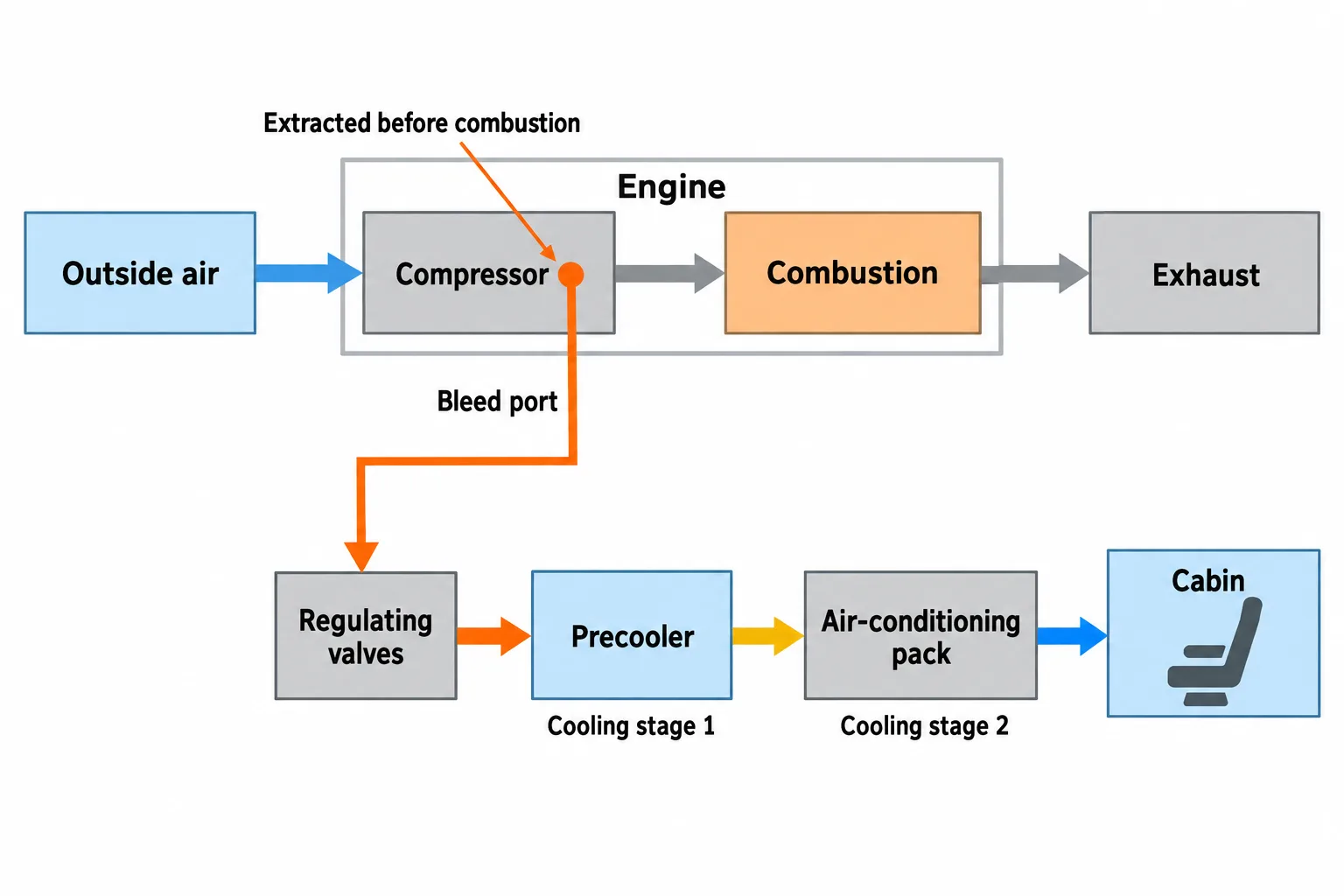

The route from engine to cabin

On a typical bleed-air airliner, some of the cabin’s fresh air follows this path:

Outside air → engine compressor → bleed port → regulating valves and precooler → air-conditioning pack → cabin

Bleed air simply means air diverted, or “bled off,” from the engine’s compressor. The compressor is the section that squeezes incoming air to a higher pressure before it reaches the combustion chamber, where fuel is added and burned.

That distinction is essential:

Bleed air is compressed intake air, not engine exhaust. It is extracted before the combustion chamber.

Not every airliner uses engine bleed air for cabin ventilation, but this is a common arrangement. On aircraft that do, getting that air ready for passengers requires two main cooling stages: a precooler near the engine and an air-conditioning pack farther downstream.

First, tap the compressed air

Why take air from the compressor?

The compressor supplies air at a pressure well above the outside atmosphere. That makes it useful for ventilation and for maintaining cabin pressure at altitude.

The engine compresses air in stages, with each stage increasing its pressure. Depending on the aircraft and operating conditions, the bleed system may take air from an intermediate-pressure stage or switch to a higher-pressure stage when the lower-pressure source cannot provide enough.

Regulating valves control the supply pressure and airflow. Other valves allow the supply to be shut off—for example, to isolate a faulty source.

The drawback is heat. Compressing air raises its temperature, just as a bicycle pump can become warm when you use it. An engine compressor does this on a much larger scale.

As an illustration, Airbus describes bleed air that can reach about $400^{\circ }\text{C}$ at extraction. That is an example, not a fixed temperature for every engine or flight condition.

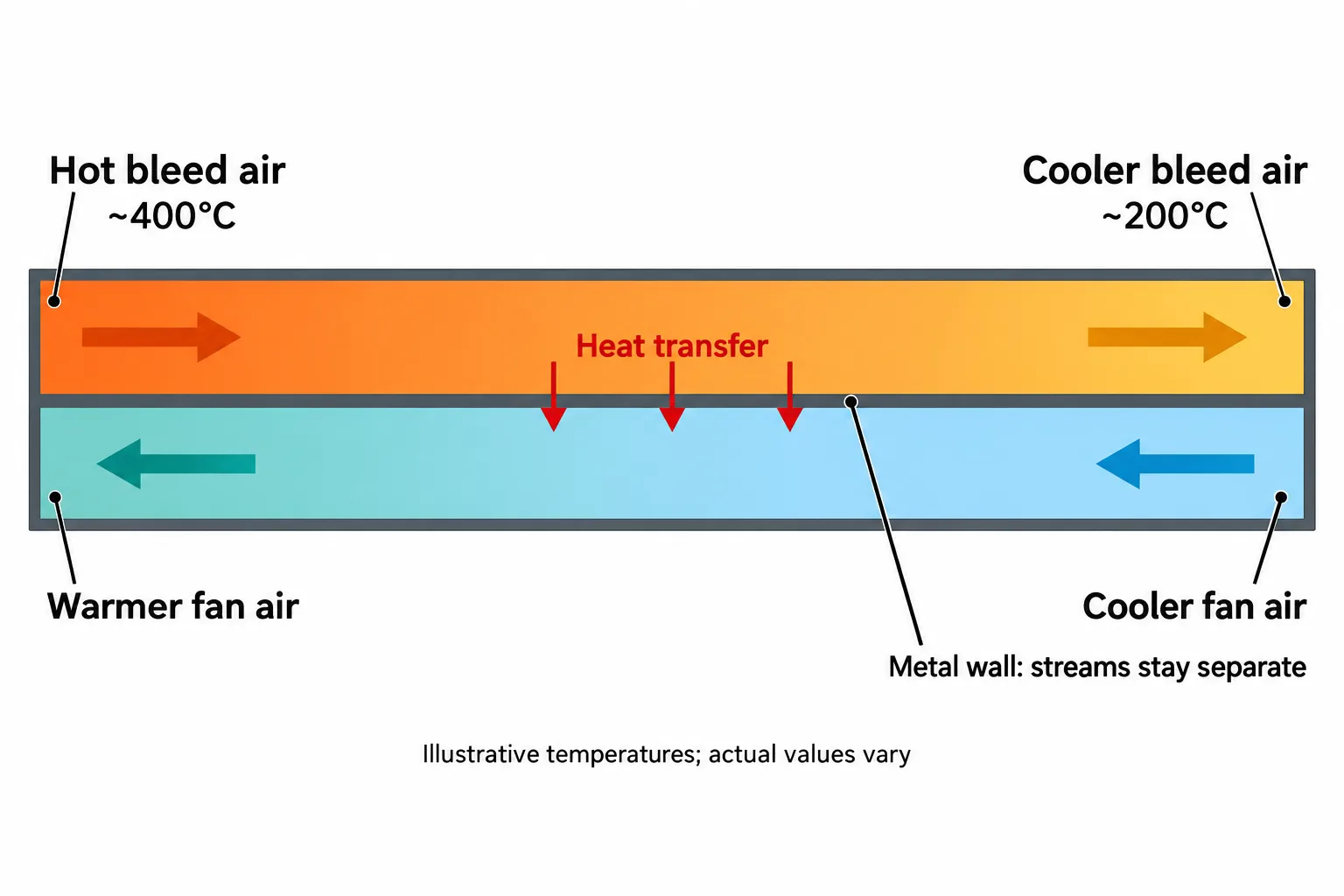

Stage one: the precooler removes the first big load of heat

Before the bleed air travels onward, it passes through a precooler—a device that removes some of its heat.

The precooler is a heat exchanger. This means it allows heat to move between two separate streams without normally mixing them. Think of a car radiator: heat passes through metal surfaces from a hotter fluid to a cooler airflow.

In the engine precooler:

• Hot bleed air flows through one side.
• Cooler air from the engine’s fan section flows through the other.
• Heat crosses the separating surfaces, cooling the bleed air and warming the fan air.

The fan section is the large front part of a turbofan engine that moves a substantial flow of air. Some of that air provides a convenient cooling source.

In Airbus’s example, precooling reduces the bleed-air temperature from roughly $400^{\circ }\text{C}$ to about $200^{\circ }\text{C}$. That is a major reduction, but the air is still far too hot to send directly into the cabin.

The precooler therefore does only the first part of the job.

Stage two: the air-conditioning pack makes it suitable for the cabin

The next stop is an air-conditioning pack: an assembly that cools and conditions the incoming compressed air.

Unlike a typical household air conditioner, which circulates a separate refrigerant, many aircraft packs use an air-cycle machine. This system cools air through a combination of heat exchange, compression, and expansion.

Outside air carries heat away

The pack contains heat exchangers cooled by ram air—outside air routed through a separate cooling duct.

Again, there are two separate streams. The ram air absorbs heat and carries it away; it is not normally mixed into the bleed air inside the heat exchanger.

The distinction between the cooling streams is worth keeping clear:

You can think of fan air and ram air as carrying heat away on the other side of a wall. They do not normally join the cabin-supply stream at those heat exchangers.

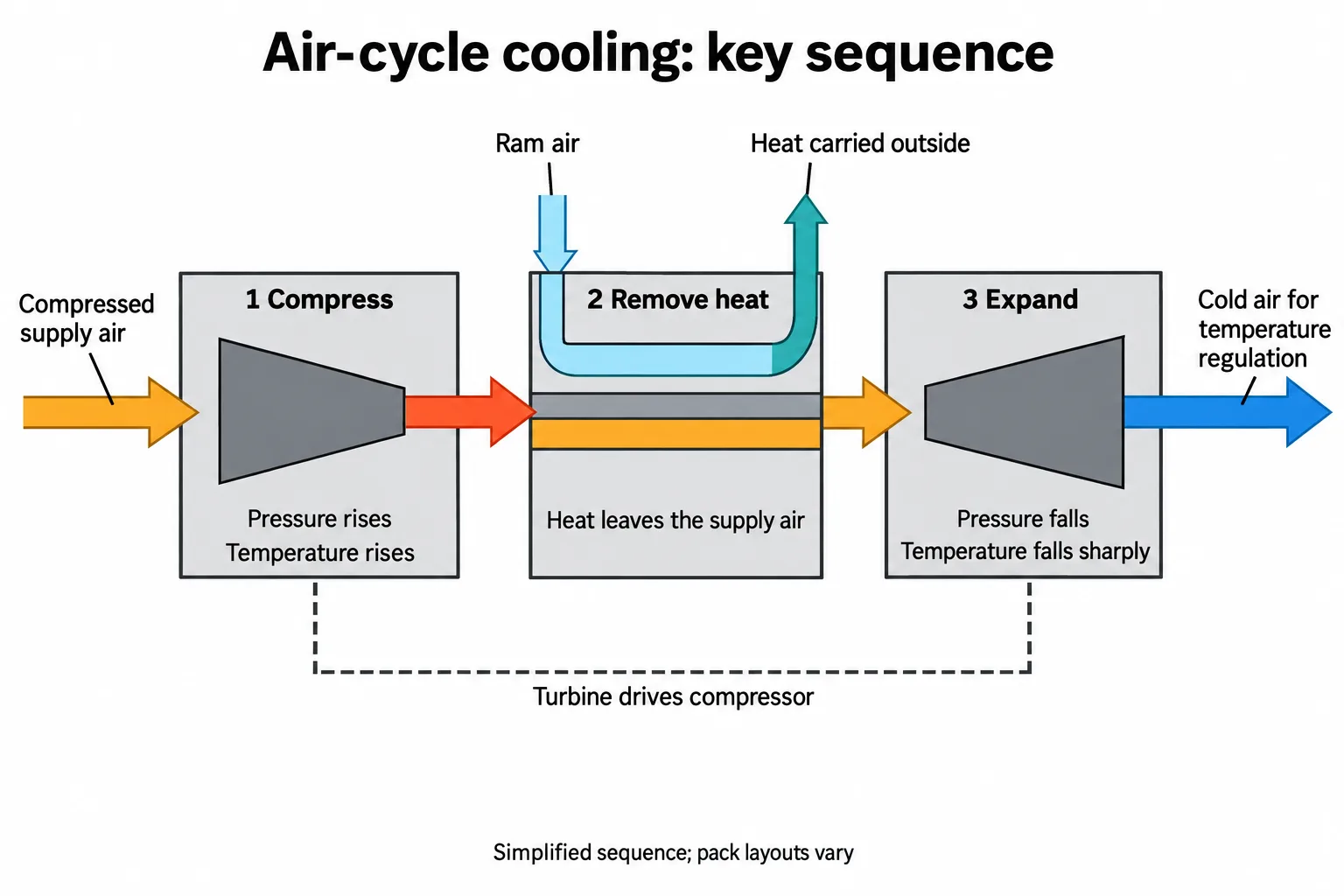

Why compress air again if compression makes it hot?

Inside a typical air-cycle machine, the air undergoes further compression. That may seem backward: if compression heats air, why do it while trying to cool it?

The answer is that compression is only one step in a sequence:

1. Compress the air, raising its pressure and temperature.
2. Remove heat in another heat exchanger.
3. Expand the air through a turbine, causing its temperature to fall sharply.

A turbine is a rotating machine that extracts energy from a flowing gas. As the air expands through it and does work turning the machinery, the air loses energy and becomes colder.

The useful trick is not compression alone. It is compression, heat removal, and then expansion.

The system regulates the resulting airflow to produce an appropriate cabin-supply temperature. On many aircraft, that conditioned fresh air is then mixed with filtered, recirculated cabin air before distribution.

How can oil get into air taken before combustion?

Taking air before the combustion chamber keeps it separate from normal engine exhaust. It does not make contamination impossible.

Engines contain oil-lubricated bearings, which support rotating shafts. Seals and pressure arrangements normally keep the bearing oil separate from the engine’s main airflow.

If that separation is compromised, oil can enter the compressor airflow. The potential route is:

1. Oil leaks past a seal or otherwise escapes its intended space.
2. It enters airflow from which bleed air is extracted.
3. Oil-derived vapor or tiny droplets travel into the air-supply system.
4. Heat can chemically alter the oil before the air is cooled.

A similar contamination problem can originate in the auxiliary power unit, or APU—the small onboard engine that can supply electrical power and, on many aircraft, compressed air.

The important point is that cooling is not the same as purification. A precooler and an air-conditioning pack remove heat; they are not a guarantee that contaminated incoming air will become clean.

What about hydraulic fluid?

Hydraulic fluid is used to transmit force in aircraft systems—for example, to operate actuators. It is not normally part of the engine compressor’s lubrication system, so its route into the air supply is generally less direct than an engine-oil leak.

A leaking or burst hydraulic line can release fluid near an engine or APU intake. If the fluid is drawn into that intake, it may enter the air-supply path. The precise route depends on the aircraft’s layout and the location of the fault.

FAA research identifies both oil-related contamination and hydraulic-fluid leaks as possible sources of air-supply contamination.

A “fume event” describes an observation, not a diagnosis

A fume event is an episode in which an unusual odor, vapor, mist, or smoke is reported in the cabin or flight deck. The FAA notes that it does not use a single formal definition of the term.

Crucially, an unusual smell does not by itself establish that bleed air is contaminated. The source might instead be an electrical component or something inside the cabin.

Nor does a smell alone prove an oil-seal failure or a hydraulic-fluid leak. Identifying the cause requires investigation, and sometimes the source cannot be established conclusively.

The core distinction is simple: the bleed-air system is designed to turn hot, compressed intake air into a controlled cabin supply. Its heat exchangers and expansion machinery explain how that air becomes cool—but tracing an unusual odor requires a separate investigation into what, if anything, entered the airflow along the way.
