How Foldable Phone Screens Bend Thousands of Times Without Breaking

A foldable phone seems to break a basic rule: glass is rigid, yet you can close the screen like a book. The secret isn’t glass that suddenly becomes stretchy. It’s an extremely thin, carefully layered screen—and a hinge that makes sure it bends without being sharply creased.

Once you understand what happens inside a bend, the whole design starts to make sense.

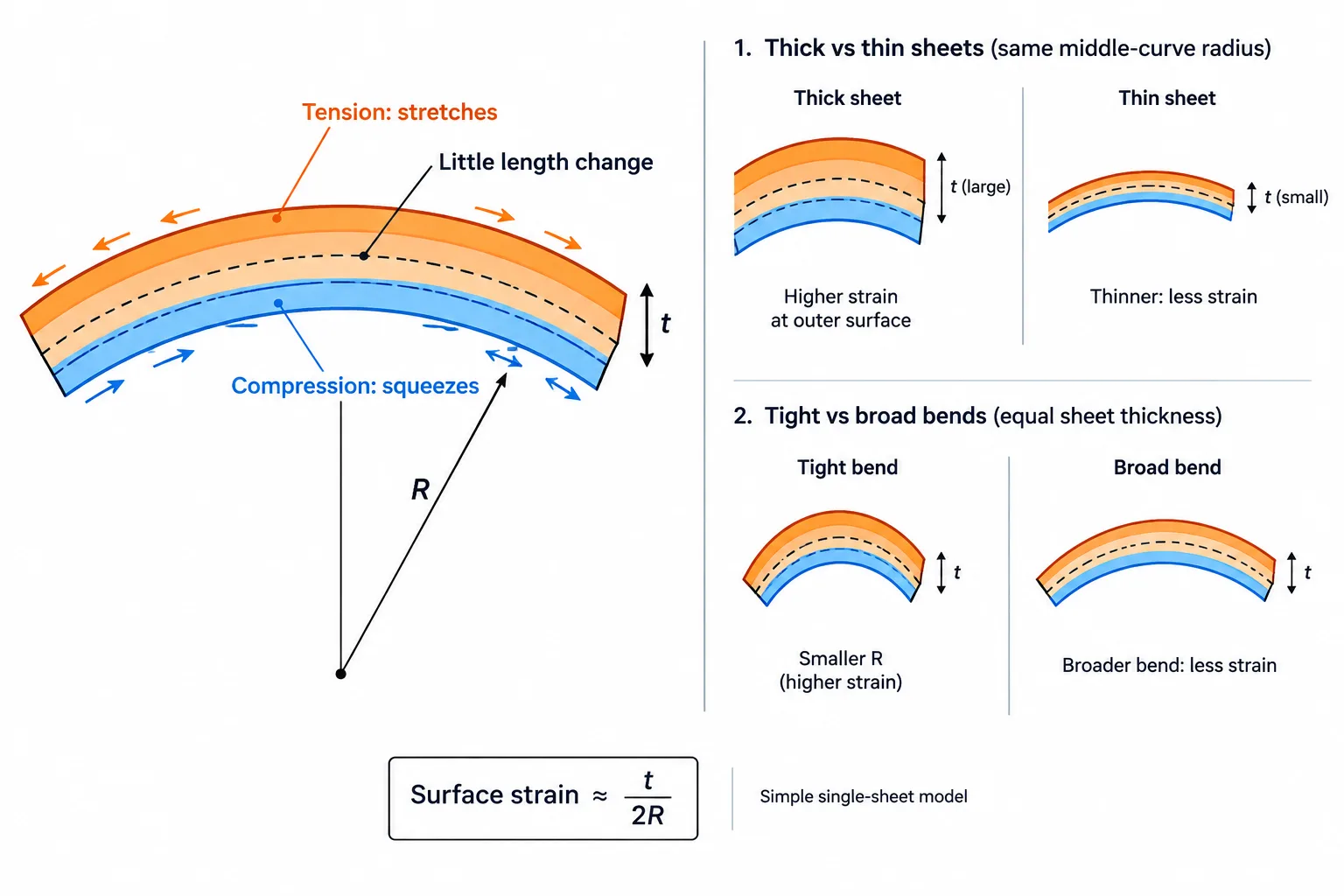

The Basic Trick: Bend Gently, Keep the Layers Thin

Imagine bending a thick paperback book. The pages on the outside of the curve need to travel farther than the pages on the inside. Something similar happens inside a solid sheet:

• The outer surface stretches, putting it under tension—a pulling force.
• The inner surface compresses, putting it under a squeezing force.
• Somewhere between them, there is a region that stretches or compresses much less.

The amount of stretching is called strain. Too much strain can start a crack or damage a display layer.

For a simple sheet, the strain at its outer surface is approximately:

Here, $t$ is the sheet’s thickness, and $R$ is its bending radius: a measure of how broad the curve is.

In plain language, the equation says two things:

1. A thinner sheet stretches less when you bend it.
2. A broader curve stretches the surface less than a tight curve.

Foldable screens survive by keeping the strain in their layers low—not by making those layers impossible to break.

The equation is a simplified picture of a single sheet, rather than a complete model of a multilayer screen. But it captures the central engineering idea.

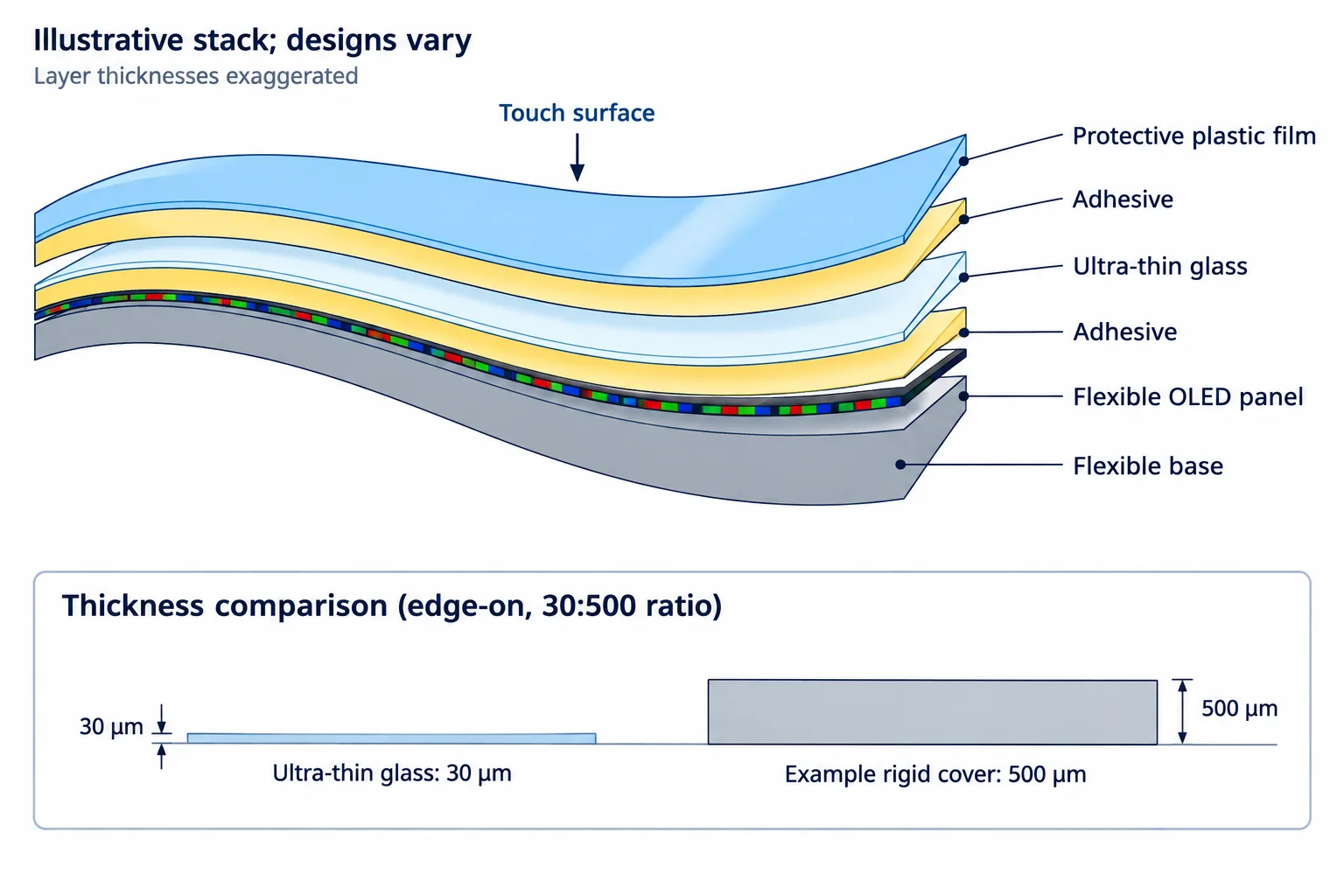

A Foldable Screen Is a Stack, Not a Pane

A conventional phone has a relatively thick, rigid glass cover. A foldable display instead uses a carefully designed stack of thin materials, each with a different job.

At its heart is a flexible OLED panel. OLED stands for organic light-emitting diode: a display technology in which the light-producing materials emit light when electrically driven. In a foldable version, that panel is built on a flexible base rather than a rigid one.

Above and around it are protective layers, adhesives, and—in many designs—ultra-thin glass. These layers must move together without forcing any one of them to stretch too much.

That makes the hinge part of the screen’s protection system. A flexible panel can still fail if the mechanism supporting it forces it around too sharp a corner.

How Can Glass Be Thin Enough to Fold?

Glass does not become rubbery when it becomes thin. It simply needs much less surface stretching to follow a curve.

Samsung’s first foldable ultra-thin glass was about 30 micrometres thick. A micrometre is one-thousandth of a millimetre, so that is just 0.03 millimetres. The rigid cover glass Samsung compared it with was roughly 500 micrometres thick—more than 16 times thicker. Samsung Display describes that comparison here.

Making usable glass this thin takes more than shaving down an ordinary phone screen. Manufacturers must:

• Form or process very thin sheets.
• Cut and finish the edges carefully.
• Minimize tiny surface and edge flaws.
• Strengthen the glass so those flaws are less likely to grow into cracks.

Flaws matter because glass is especially vulnerable when a pulling force opens an existing scratch or microscopic crack.

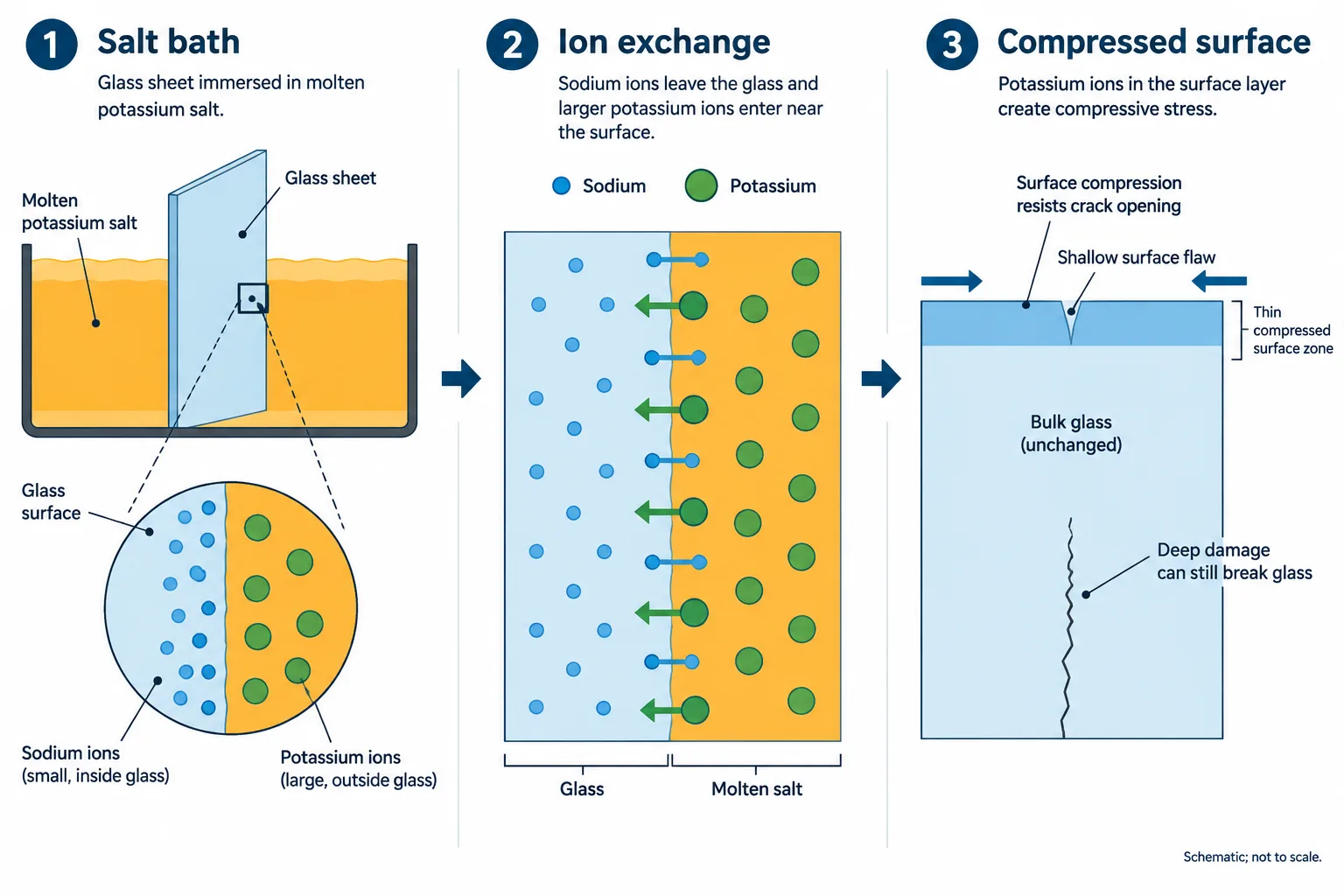

Strengthening Glass With Ion Exchange

One way to strengthen glass is ion exchange, a chemical treatment that puts its surface under compression.

In a common version of the process:

1. The glass goes into a hot bath of molten salt.
2. Larger potassium ions—electrically charged atoms—replace smaller sodium ions near the glass surface.
3. Those larger ions occupy more room, creating a thin surface layer under compressive stress.

Think of that surface as already being squeezed. When bending tries to pull it apart, it first has to overcome some of that built-in compression.

This helps prevent small flaws from opening and growing into cracks. Corning explains the process in its guide to ion exchange.

But chemical strengthening does not make glass unbreakable—or stretchy like a flexible plastic. Deep scratches, excessive force, and bends that are too tight can still damage it.

Why There Is Still Plastic on Top

Early foldable phones used flexible plastic cover materials, including polyimide, a type of polymer suited to thin, flexible films. Later designs introduced ultra-thin glass, but that did not make every plastic layer unnecessary.

The materials have different strengths:

Ultra-thin glass is therefore not equivalent to a conventional rigid phone cover. You may have glass in the stack while still touching a plastic film on top.

The plastic layers help protect the delicate glass from everyday contact and impacts. In some designs, they also help keep fragments in place if the glass cracks.

Should You Remove the Factory-Applied Film?

Do not peel the factory-applied protective film off the inner folding screen yourself. It is not simply shipping packaging.

Although that film may be replaceable, removal can damage the display. Manufacturers also warn against adding an unapproved protector on top of it.

If it bubbles, lifts, or becomes badly scratched, follow your phone maker’s instructions or use an authorized service provider. The rules for a separate, rigid outer screen may be different. Samsung’s care guidance explains this distinction.

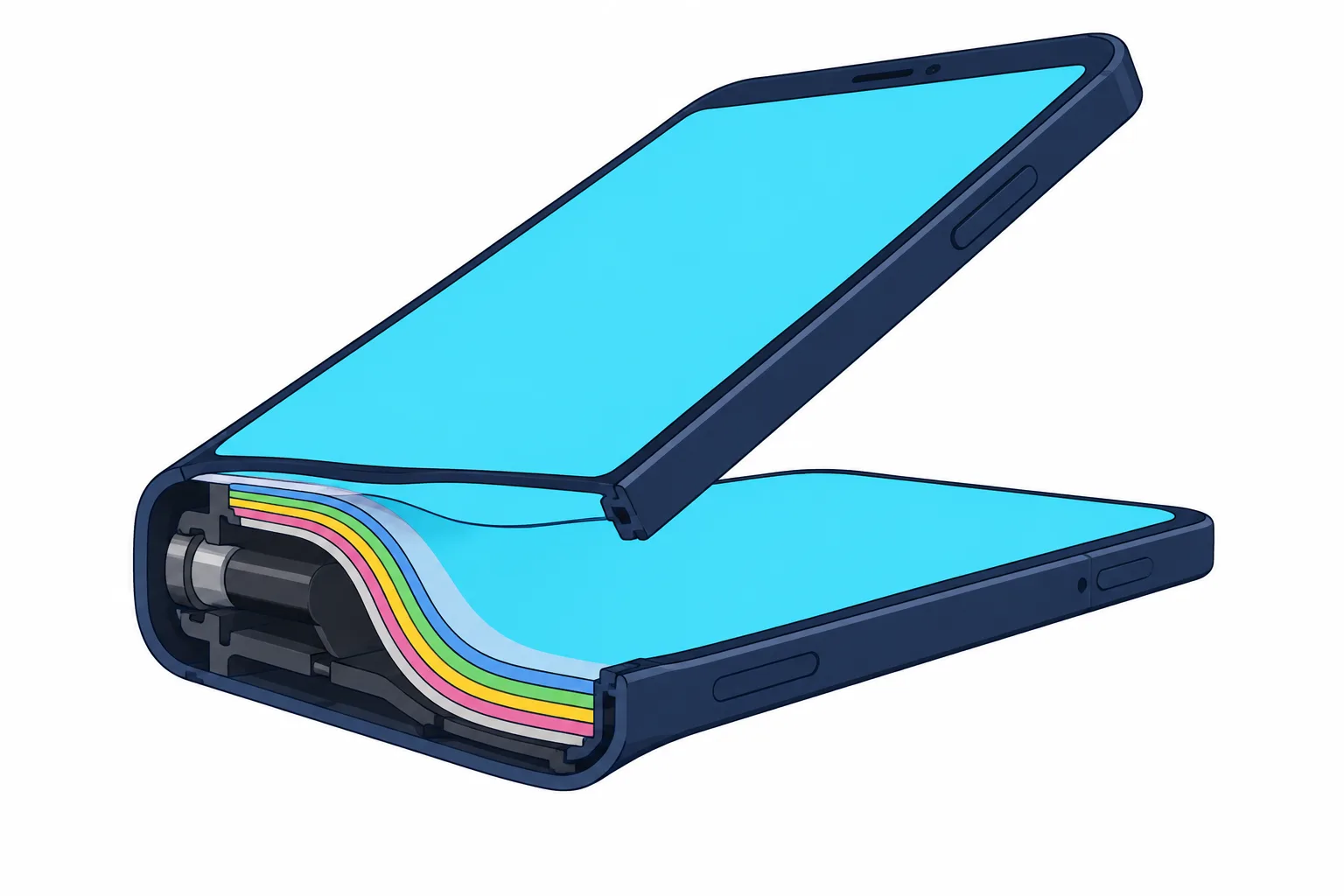

The Hinge Gives the Screen Somewhere to Go

When you close a foldable phone, its two halves can sit nearly flat against each other. But the screen inside should not be pinched into a sharp fold like a sheet of paper.

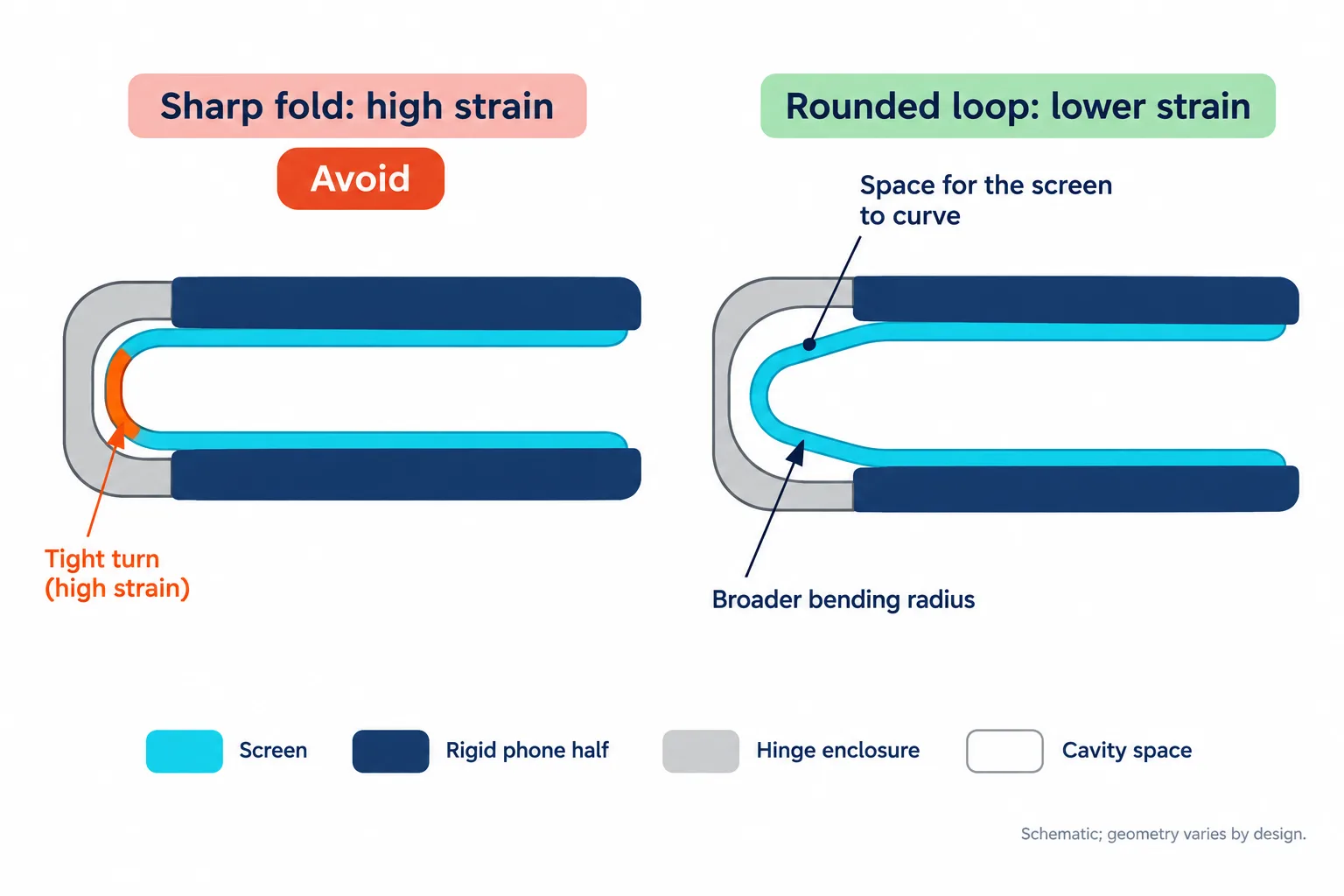

Some hinges instead let the screen curl into a water-drop shape.

That name describes the screen’s cross-section inside the closed hinge—not the overall shape of the phone. The display forms a small, rounded loop in the space between the two halves.

The loop gives the screen a larger bending radius. Rather than concentrating deformation along one narrow line, it spreads the bend over a broader region.

This is why a hinge is much more than a mechanical convenience:

The hinge does not just close the phone. It controls the shape the screen must survive.

A broader bend reduces strain during repeated folding. It can also help make the crease less pronounced when you open the phone, though hinge geometry is only part of that story.

Why the Crease Still Exists

The crease is a slight change in the screen’s shape along the folding region.

Every time you close the phone, the layers follow a curve. Some stretch, some compress, and the materials between them must accommodate that movement. Repeated folding—or simply spending time closed—can leave a little deformation visible after the screen opens.

You often notice it most under angled light. Even a shallow dip changes how the surface reflects its surroundings.

Can It Disappear Completely?

A crease can become hard to notice. A wider folding radius, improved materials, and better support beneath the open screen can all help.

But making a layered screen return to a permanently, perfectly flat surface after repeated folding remains difficult. Foldable designs generally minimize the crease rather than eliminate it.

A water-drop hinge helps by avoiding a tightly concentrated bend. It does not, by itself, guarantee an invisible fold line.

And a normal crease is not automatically a sign that the display is broken. It is different from a crack or a functional problem such as failed pixels or lost touch response.

How Engineers Test Whether It Will Last

Engineers test the display panel, hinge, and assembled phone, because success at one level does not guarantee success at another.

A screen might survive repeated bending in a test fixture yet suffer damage when paired with a hinge that bends it incorrectly. Likewise, a phone that survives clean laboratory folding may still be vulnerable to debris or an impact.

Repeated-Fold Tests

Machines open and close samples thousands or hundreds of thousands of times. Engineers check whether the screen still displays images correctly and whether the hinge continues to move as intended.

Samsung Display, for example, has reported a 500,000-fold panel test. That is a result for a particular panel under particular test conditions—not a promise that every finished phone will last that long. The company’s report provides the context.

Temperature and Real-World Stress Tests

Materials can behave differently in heat and cold, so engineers also repeat folding inside temperature-controlled chambers. Samsung Display has reported tests at $-20^{\circ }\text{C}$ and $60^{\circ }\text{C}$. Its testing overview describes these conditions.

Testing assembled phones also includes stresses such as:

• Drops and pressure.
• Moisture exposure.
• Debris.
• Repeated mechanical wear.

Throughout testing, engineers look for changes in crease shape, image quality, touch response, and hinge operation. The goal is not merely for the phone to keep opening and closing. It is for the whole device to remain usable.

The Secret Is Controlled Flexibility

A foldable screen survives through a combination of small advantages: thin materials need less stretching, strengthened glass better resists cracks, protective layers cushion contact, and the hinge maintains a manageable curve.

None of these makes the screen indestructible. Together, they let something that looks surprisingly fragile bend again and again.

The most useful way to picture it is this: you are not folding a conventional glass screen in half. You are guiding a specially engineered, thin-layered display around a carefully controlled curve.
