Why Foldable Phone Hinges Give Screens a Water-Drop Shape
A foldable phone can close almost flat without folding its screen into a sharp corner. Hidden inside the hinge, the display takes a gentler route: it curls into a small, rounded loop often called a water-drop shape.
That loop is not wasted space. It gives the screen room to bend without concentrating all the deformation along one narrow line—and it can help make the crease less noticeable when you open the phone.
What “Water-Drop Shape” Actually Means

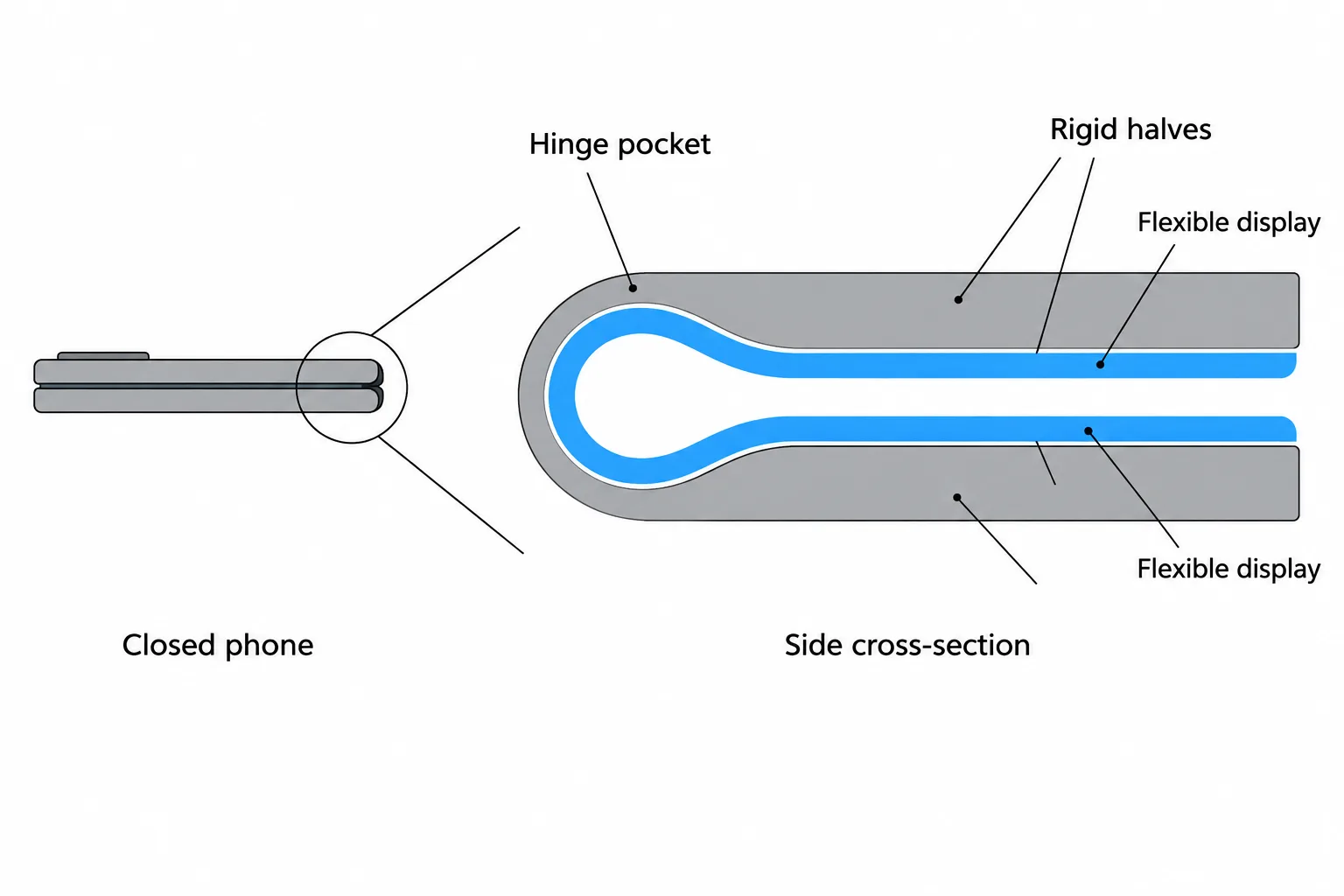

The phrase describes the screen’s cross-section inside the closed hinge: the shape you would see if you could look through the phone from the side.
It does not mean the whole phone becomes shaped like a droplet. The two rigid halves can sit nearly parallel, while the flexible display curves into a wider pocket between them. The screen’s path through that pocket resembles a small teardrop or loop.
The phone’s halves can close nearly flat while the screen inside bends in a rounded curve.
That distinction answers the apparent puzzle. “Closing flat” describes the position of the phone’s two halves. “Folding sharply” describes what happens to the screen between them. A hinge can achieve the first while avoiding the second.
Samsung Display’s explanation of foldable display designs illustrates how this internal folding geometry differs from the phone’s outside shape.
Why Not Just Pinch the Screen Flat?
Imagine bending a thin strip of plastic around a marker, then bending it around a much narrower object. The tighter bend asks the material to deform more severely.
A foldable screen faces the same basic problem. Although it is flexible, it is not a loose sheet of cloth. It is a stack of thin materials that must keep working while repeatedly changing shape.
A sharp fold concentrates the deformation

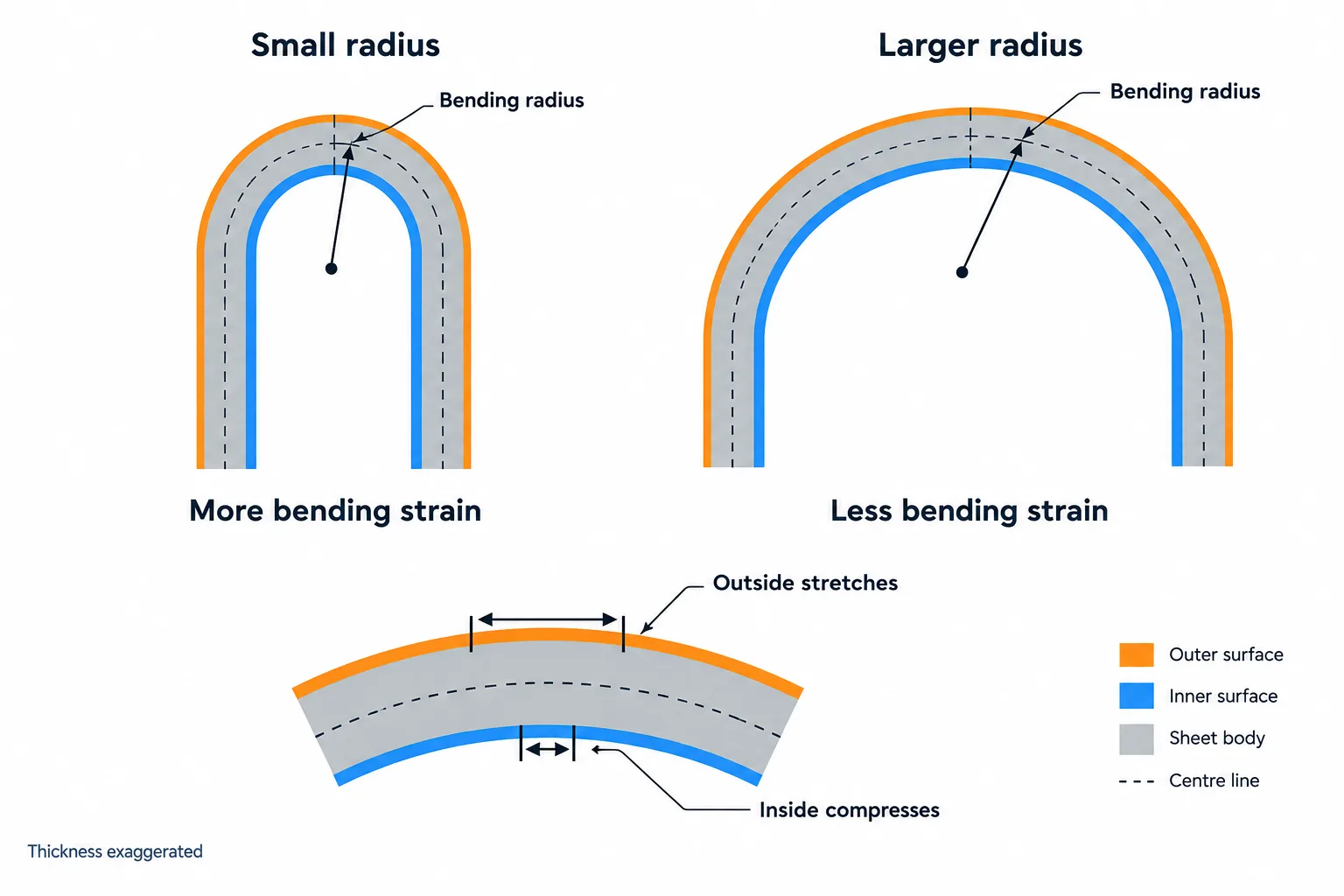

When a sheet bends, the material toward the outside of the curve has to travel farther than the material toward the inside. The outer part tends to stretch, while the inner part tends to compress.
Engineers call this deformation strain: a change in a material’s shape or dimensions compared with its unstressed state. Stress is the internal force associated with that deformation.
If the screen were forced into an extremely tight fold, much of that strain would be concentrated in a narrow region. Repeating the same severe bend would place greater demands on the materials there.
A rounded loop gives the screen more room
The important measure is the bending radius—roughly, the size of the curve around which the screen bends.
- A small bending radius means a tight, sharp turn.
- A large bending radius means a broader, gentler turn.
For an otherwise similar sheet, a gentler bend generally produces less bending strain. The water-drop shape lets the display make its turn through a rounded loop rather than being pinched into a knife-edge fold.
Think of it as allowing a flexible strip to turn around a rounded guide instead of pressing it into a hard crease. The strip still changes direction, but the change happens over more of its length.
What the Hinge Is Doing

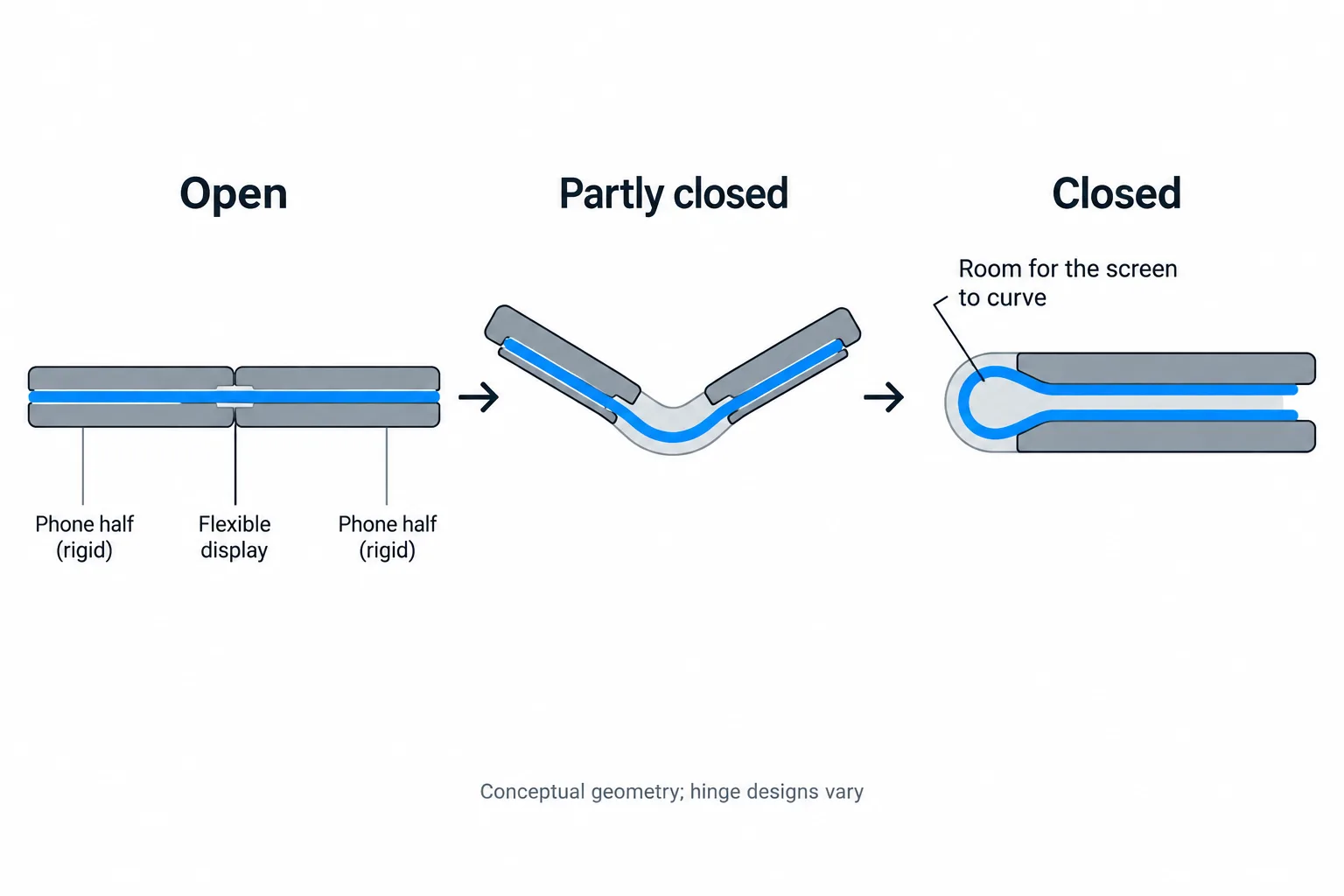

The hinge is more than a pivot joining two halves. Its design helps control the space and movement available to the display as the phone closes.
For a water-drop fold, the mechanism must allow the screen to curve into that internal pocket rather than trapping it between two closing surfaces. The exact mechanism varies between phones, but the goal is the same: close the device compactly while preserving a gentler bend in the screen.
This is why the outside appearance can be misleading. A tightly closed phone does not necessarily contain a tightly pinched display.
| What you notice outside | What matters inside |
|---|---|
| The phone’s halves close nearly flat | The screen retains room to curve |
| The device looks compact | The hinge accommodates a rounded loop |
| The screen bends in the middle | The bend is spread through a broader region |
Does It Make the Crease Less Visible?
Yes, it can—but reducing a crease is not the same as eliminating it.
The crease is the visible or feelable change in the display’s surface near the fold when the phone is open. By avoiding a tightly concentrated bend, water-drop geometry can reduce the mechanical demands that contribute to a pronounced crease.
OPPO’s explanation of its Find N folding design describes this connection between a broader folding curve and a less noticeable crease.
However, hinge geometry is only part of the result. Crease visibility also depends on:
- The screen materials: how the different layers respond to bending and recover afterward.
- The folding geometry: how tightly, and over what region, the display bends.
- Support when open: how well the structure beneath the display supports the fold area.
A water-drop hinge therefore helps the screen open flatter, but it does not guarantee a perfectly smooth surface.
The Essential Trade-Off
The screen needs room to bend gently; the phone needs to close compactly. A water-drop hinge reconciles those needs by making space for a rounded loop inside the closed device.
That is its central benefit: the hinge lets the phone fold shut without asking the display to fold sharply. Less concentrated bending can ease the demands of repeated folding and reduce the visible crease—while leaving the two halves of the phone nearly flat against each other.
