Ion Exchange: How a Salt Bath Makes Thin Glass Stronger

Glass sounds like an unlikely material for a folding screen. It is brittle, and a tiny scratch can become the starting point for a crack. Yet thin glass can bend—and a treatment called ion exchange can help it survive the stresses that bending creates.

The trick is not to turn glass into something rubbery. It is to give its surface a built-in squeeze, so that a crack is harder to pull open.

Why glass needs help at the surface

To understand how ion exchange works, start with the way glass breaks.

Glass surfaces contain small flaws: microscopic scratches, pits, or other imperfections. You may not be able to see them, but they matter because they concentrate stress. Under enough force, a flaw can develop into a growing crack.

Two kinds of stress are especially important:

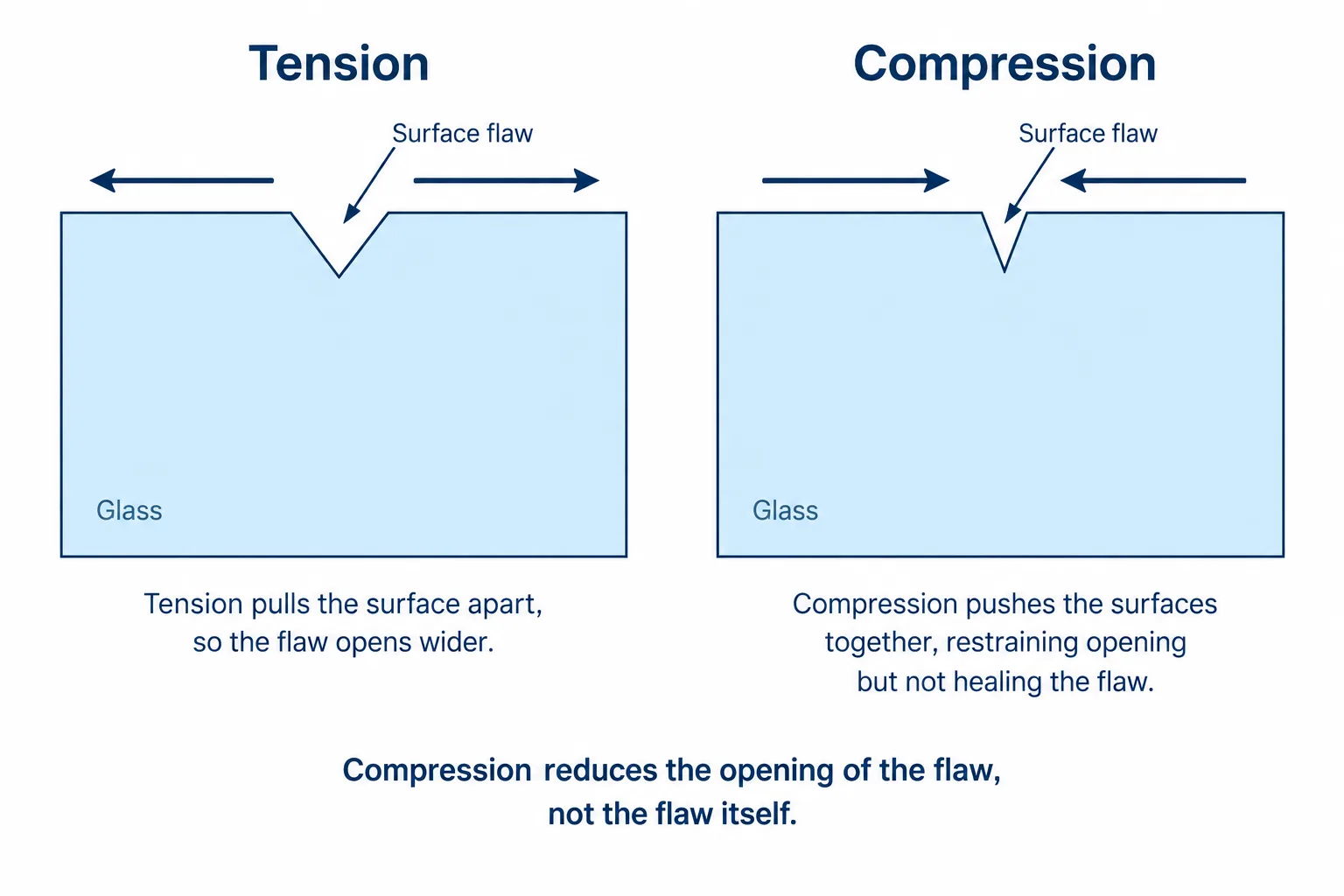

Think of a small cut in a piece of material. Pull the edges apart and the cut opens; push them together and it closes. Glass behaves differently from a soft material, but the basic distinction helps explain why compression is useful.

Ion exchange strengthens glass by making its surface harder to pull apart—not by removing every flaw.

What “ion exchange” actually means

An ion is an atom or a group of atoms with an electric charge. Some of the ions in glass can be replaced by ions supplied from outside it.

In a common glass-strengthening process, the exchange is between sodium ions already present in the glass and potassium ions supplied by a hot salt bath. The important difference is their size: potassium ions are larger than sodium ions.

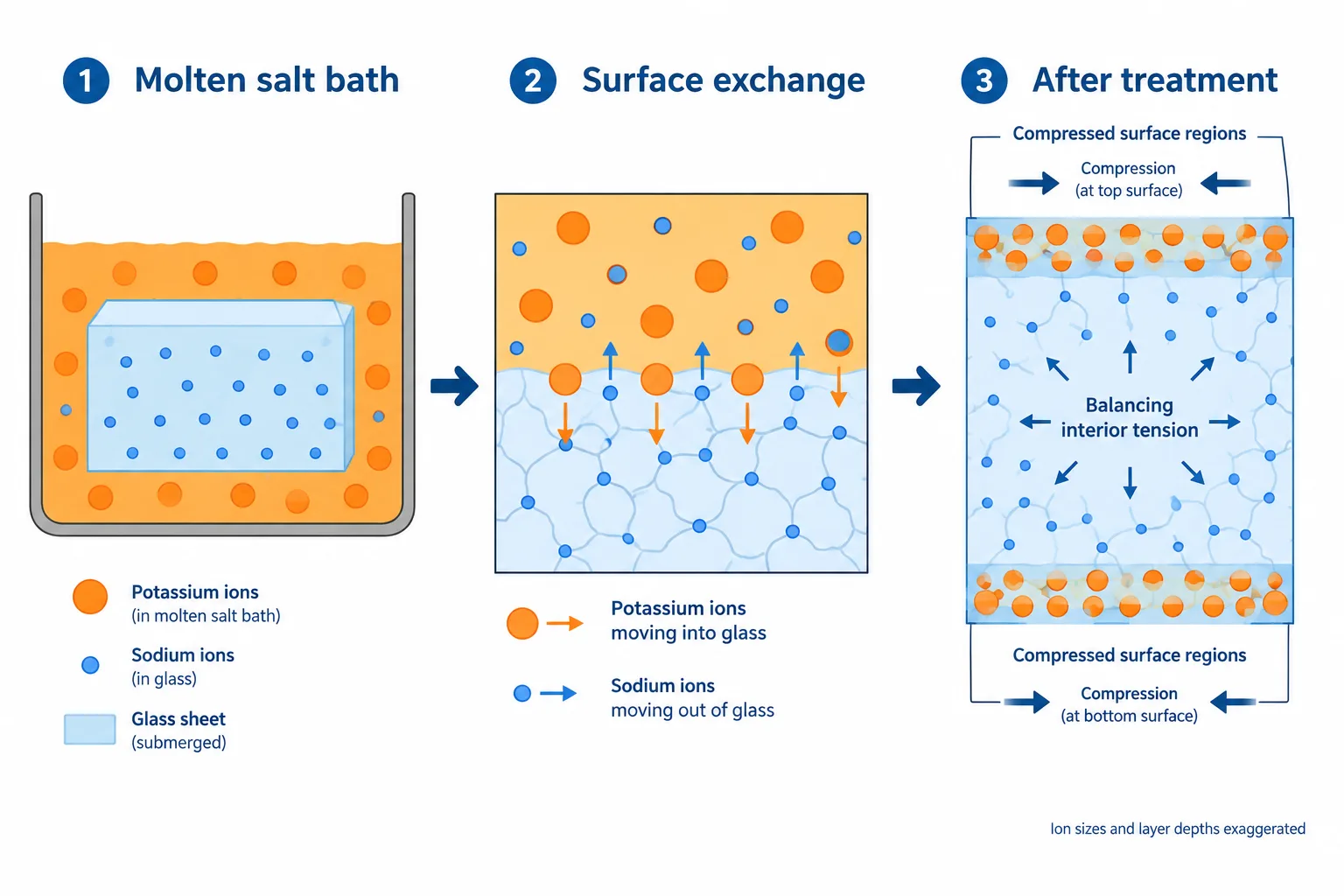

Step 1: Put the glass in molten salt

The glass is immersed in a bath of molten salt—salt heated until it becomes liquid. The bath supplies potassium ions and provides the conditions that allow the exchange to occur.

This is a chemical treatment of the glass surface, rather than simply the application of a protective coating.

Step 2: Exchange smaller ions for larger ones

Near the surface, potassium ions from the bath replace sodium ions in the glass.

A useful analogy is replacing small occupants in a tightly packed row of seats with larger ones. The larger occupants need more room, but the surrounding arrangement restricts how much they can spread out.

The analogy is not an exact picture of glass’s atomic structure, but it captures the essential point: larger ions are introduced into a constrained space.

Step 3: Create a compressed surface layer

Because the larger potassium ions occupy more space, the exchange produces compressive stress in a thin layer near the surface. The surrounding glass constrains that layer, leaving it in a state of compression.

That stress remains after the treatment. The surface is therefore already “pre-squeezed” before you bend or load the glass.

Corning describes this larger-for-smaller ion exchange as the basis of its chemical strengthening process.

How a compressed surface helps glass bend

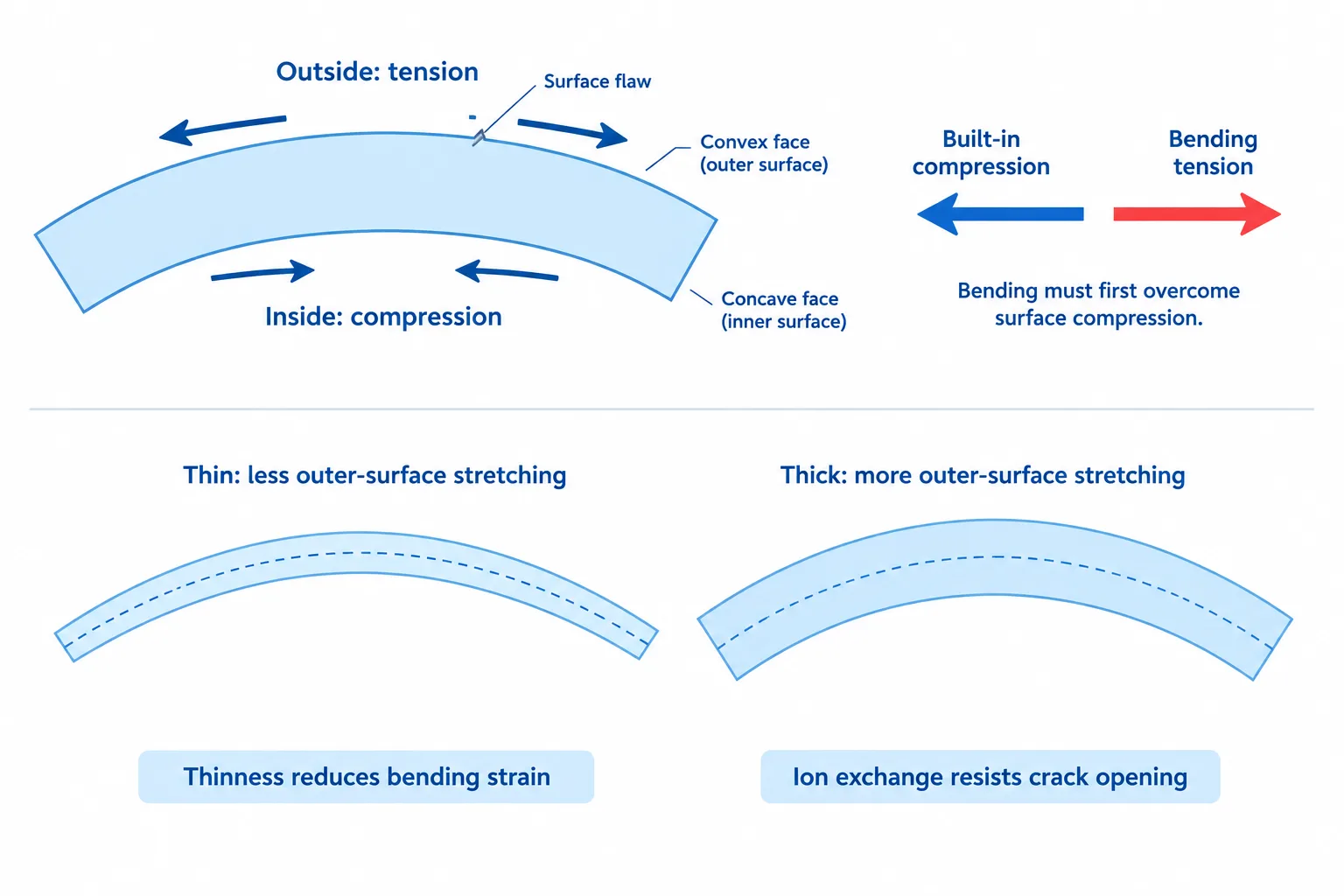

When you bend a sheet, the two sides experience different stresses:

• The outside of the curve is stretched and put under tension.
• The inside of the curve is squeezed and put under compression.

The outside is especially important for breakage because its tension tends to pull surface flaws open.

Ion exchange gives that surface a head start in the opposite direction. Before bending can put the treated surface into crack-opening tension, it must first overcome the compression already present there.

Imagine a seam held shut by a clamp. A pulling force has to counteract the clamp before it can start opening the seam. In chemically strengthened glass, the “clamp” is not a separate object: it is the stress built into the surface.

The result is that the glass can tolerate more applied bending stress before a surface crack begins to grow.

Thinness and strengthening do different jobs

For a foldable screen, it helps to distinguish two ideas:

• Making glass thin allows it to bend with less stretching of its outer surface for a given curve.
• Strengthening it through ion exchange helps it resist the crack-opening stress that remains.

These effects complement one another. Ion exchange does not, by itself, turn a thick, rigid pane into a foldable sheet.

What ion exchange does—and does not—change

“Stronger glass” can sound like “glass that cannot break.” That is not what the treatment achieves.

Glass can deform elastically—meaning it can return to its original shape after a small deformation—but chemical strengthening does not make it behave like a flexible plastic. It remains a brittle material.

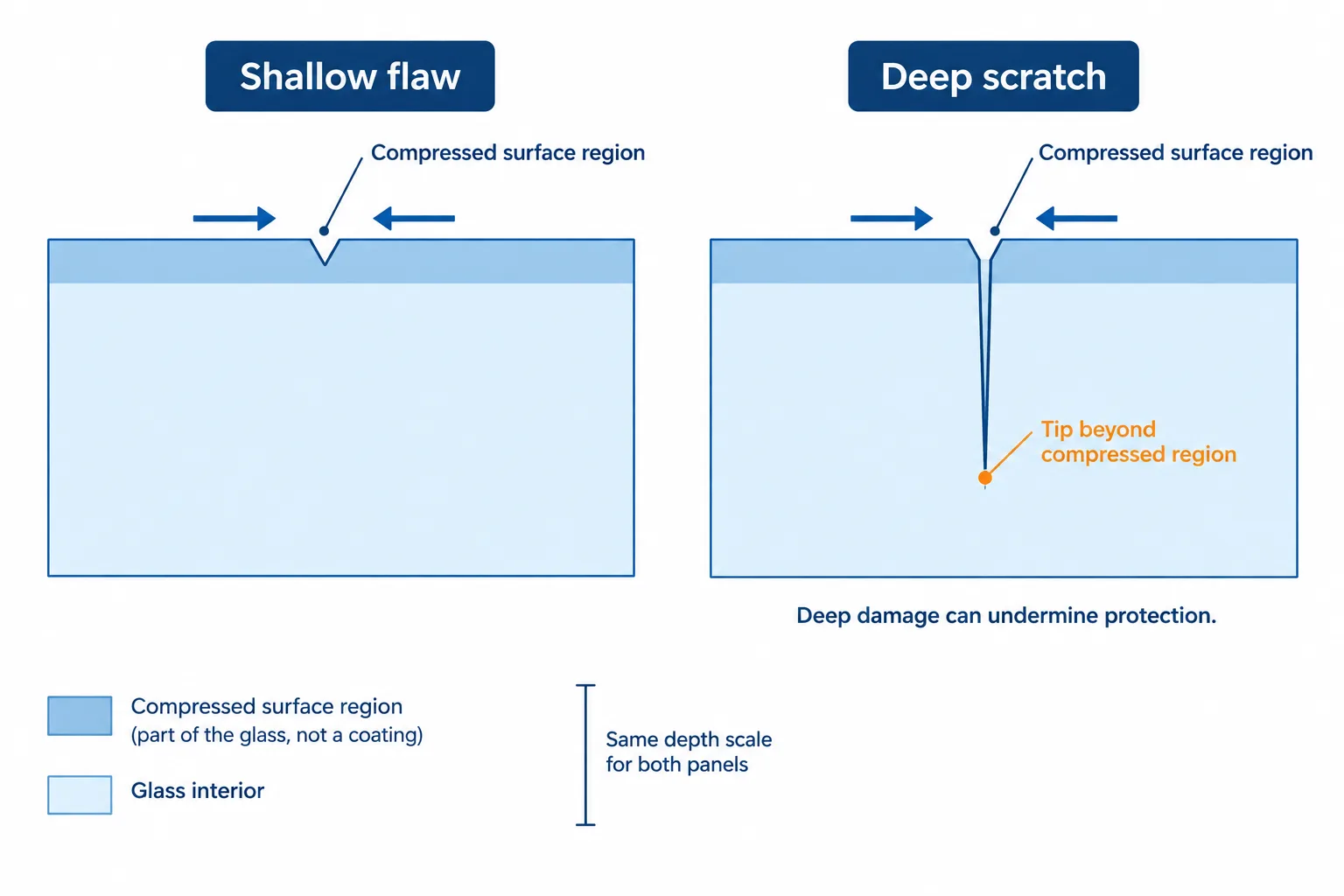

The protection also has limits. A deep scratch can undermine the benefit of the strengthened surface layer. A sharp bend or excessive force can create enough tension to overcome its compression and drive a crack forward. Corning’s explanation of glass strengthening emphasizes the role of surface compression in resisting those crack-opening forces.

The key idea: make cracks harder to open

Ion exchange is a small-scale chemical change with a large mechanical benefit. Larger ions replace smaller ones near the glass surface, creating a compressed layer that opposes the tension produced by bending.

For thin glass, that provides a valuable safety margin. The glass is not made unbreakable, and it is not transformed into plastic. Instead, its most vulnerable region—the surface—is prepared to resist the kind of stress that usually starts a fracture.

The treatment works by making a crack harder to open, not by making glass incapable of cracking.
