How Foldable Phone Screens Bend Thousands of Times Without Breaking

Glass is brittle. Phone screens are delicate. So how can you close a foldable phone again and again without snapping its display?

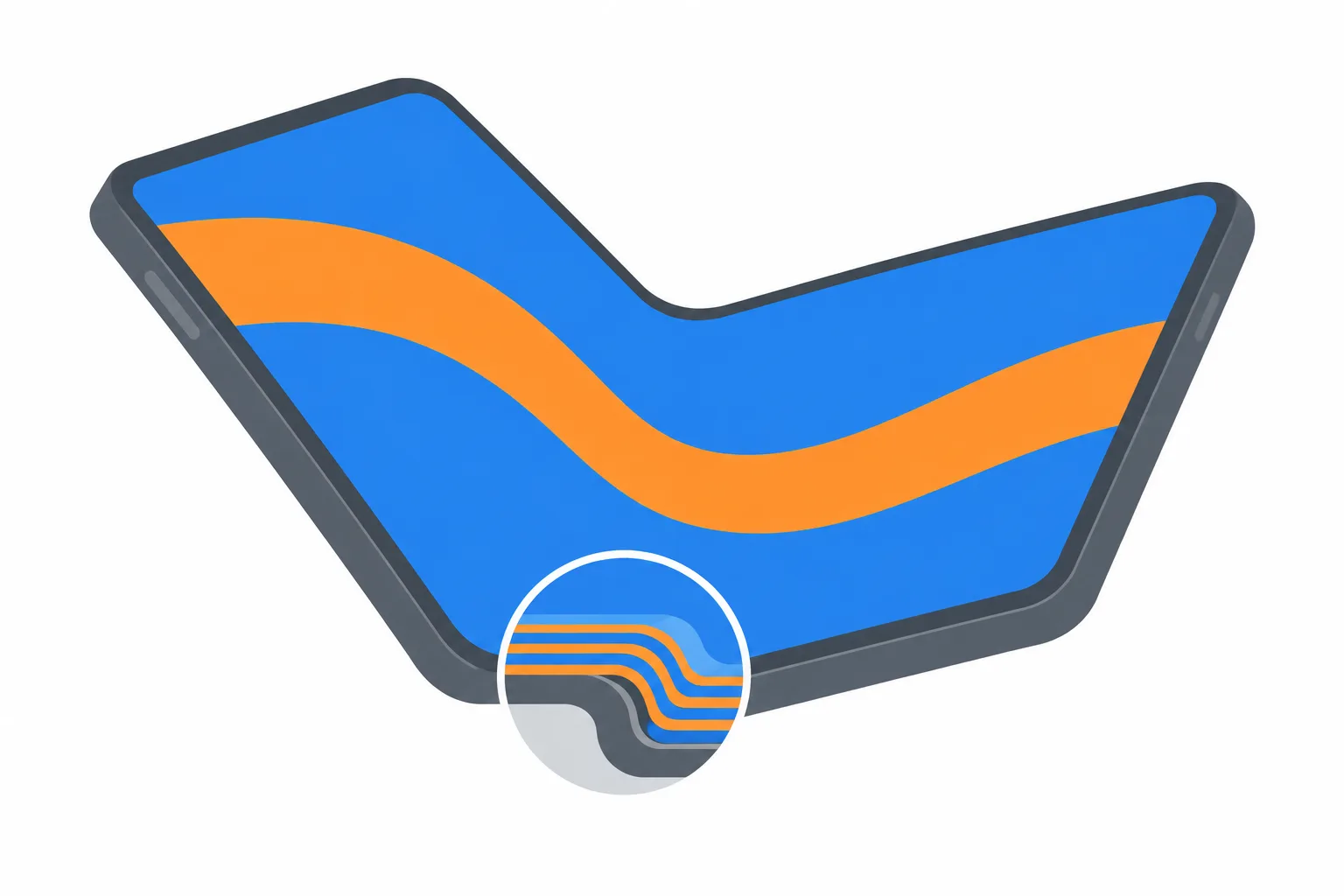

The trick is that the screen never folds like a sharply creased sheet of paper. It follows a carefully controlled curve—and every part of the phone, from its microscopic layers to its hinge, is designed to keep that bend gentle enough to survive.

The Basic Trick: Bend, Don’t Crease

Imagine bending a thick piece of cardboard, then a thin sheet of paper. The thin sheet curves much more easily. A similar principle applies to a foldable screen, even when one of its layers is glass.

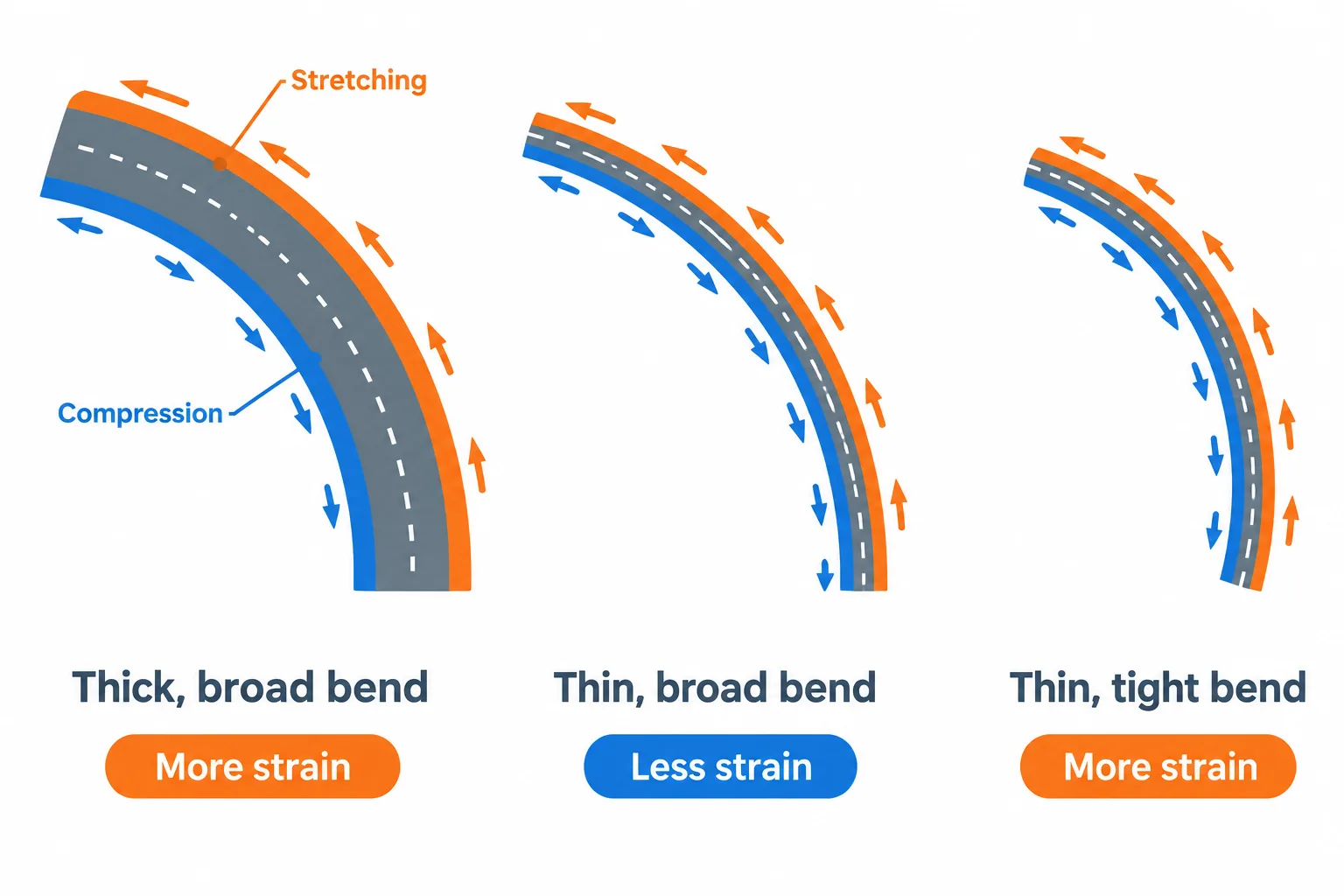

When you bend a sheet:

• Its outer surface stretches, experiencing tension—a pulling force.
• Its inner surface compresses, experiencing a squeezing force.
• The tighter the bend and the thicker the sheet, the greater the stretching and squeezing.

Engineers call the relative change in a material’s length strain. For a simple sheet, the stretching at its outer surface can be approximated by:

Here, $t$ is the sheet’s thickness, and $R$ is its bending radius: a measure of how broad the curve is. A larger radius means a gentler bend.

In plain language, the formula says that a thinner sheet and a broader curve both reduce how much the surface must stretch. A real display has many layers, so its mechanics are more complicated, but this is the central idea.

A foldable screen survives not because its materials are unbreakable, but because the phone carefully limits how much they deform on each fold.

That explains why extremely thin glass can flex even though ordinary phone-cover glass cannot bend very far without breaking.

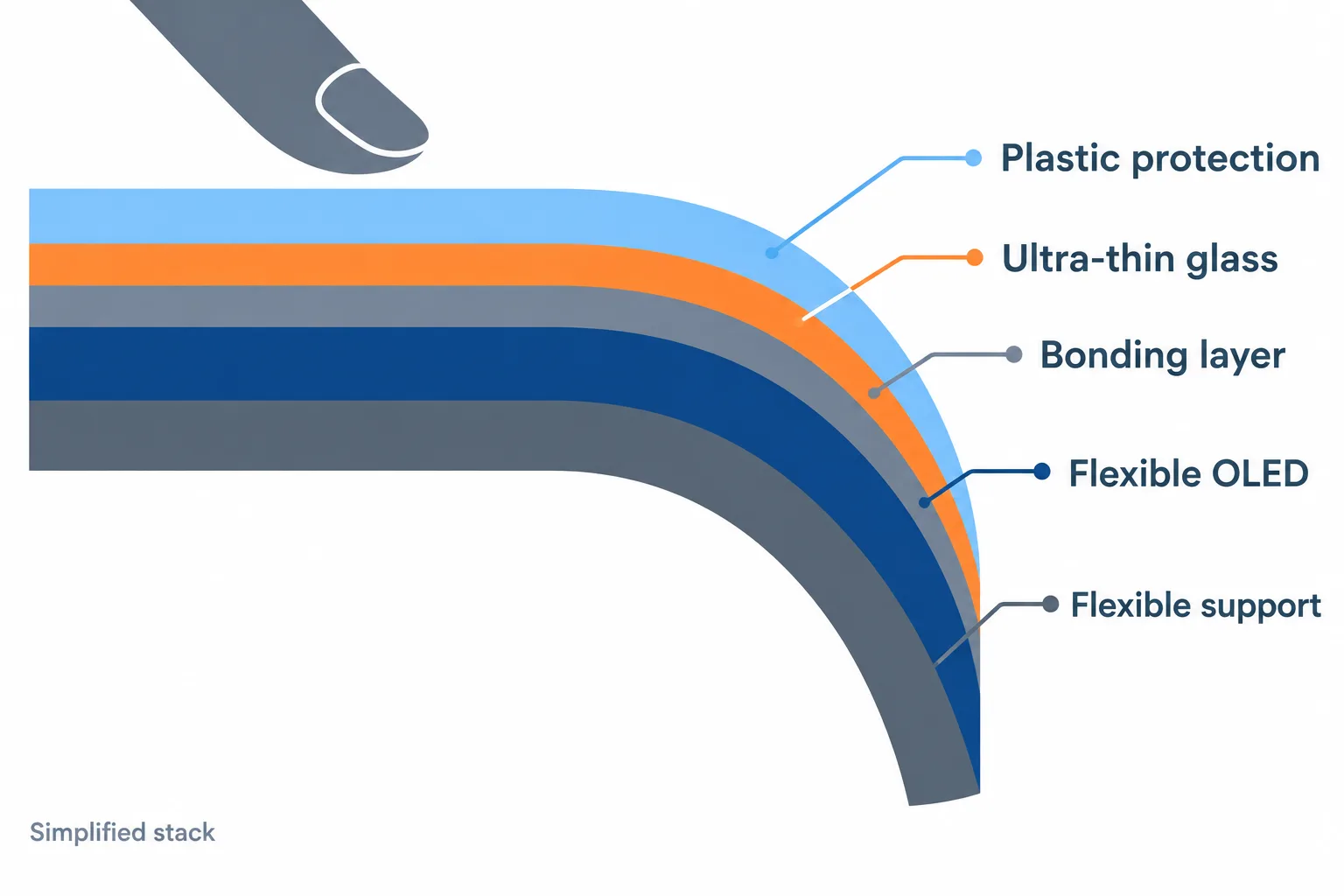

A Foldable Display Is a Stack, Not a Single Pane

What you touch is only the top of a layered structure.

A foldable phone typically uses a flexible OLED panel. OLED stands for organic light-emitting diode: a display technology in which tiny light-producing elements create the picture. In a foldable version, the panel is built on a flexible base rather than a rigid sheet.

Above and around that panel are protective materials, bonding layers, and supporting structures. Many designs include ultra-thin glass, with plastic protection above it.

The layers have different jobs:

The challenge is making these parts work together. When the phone closes, different layers need to stretch or compress by different amounts. The stack must accommodate that movement without cracking, separating, or damaging the image-producing components.

A flexible panel alone is therefore not enough. It needs a protective stack and a hinge designed around its limits.

How Can Glass Be Thin Enough to Fold?

Thin glass is still glass

Making glass thin does not turn it into stretchy plastic. It simply reduces how much its surfaces must stretch when it curves.

Samsung’s first foldable ultra-thin glass was about 30 micrometres thick. A micrometre is one-thousandth of a millimetre, so that is just $0.03$ millimetres. Samsung compared it with roughly 500-micrometre-thick rigid cover glass—more than 16 times thicker. Those figures describe a particular comparison, not every foldable screen. Source: Samsung Display

Producing usable glass this thin requires more than shaving down an ordinary screen cover. Manufacturers must carefully form or process the sheets, cut and finish their edges, limit microscopic flaws, and strengthen the glass.

Surface and edge flaws matter because they can become the starting points for cracks. When bending pulls on the outside of the glass, it can pull those flaws open.

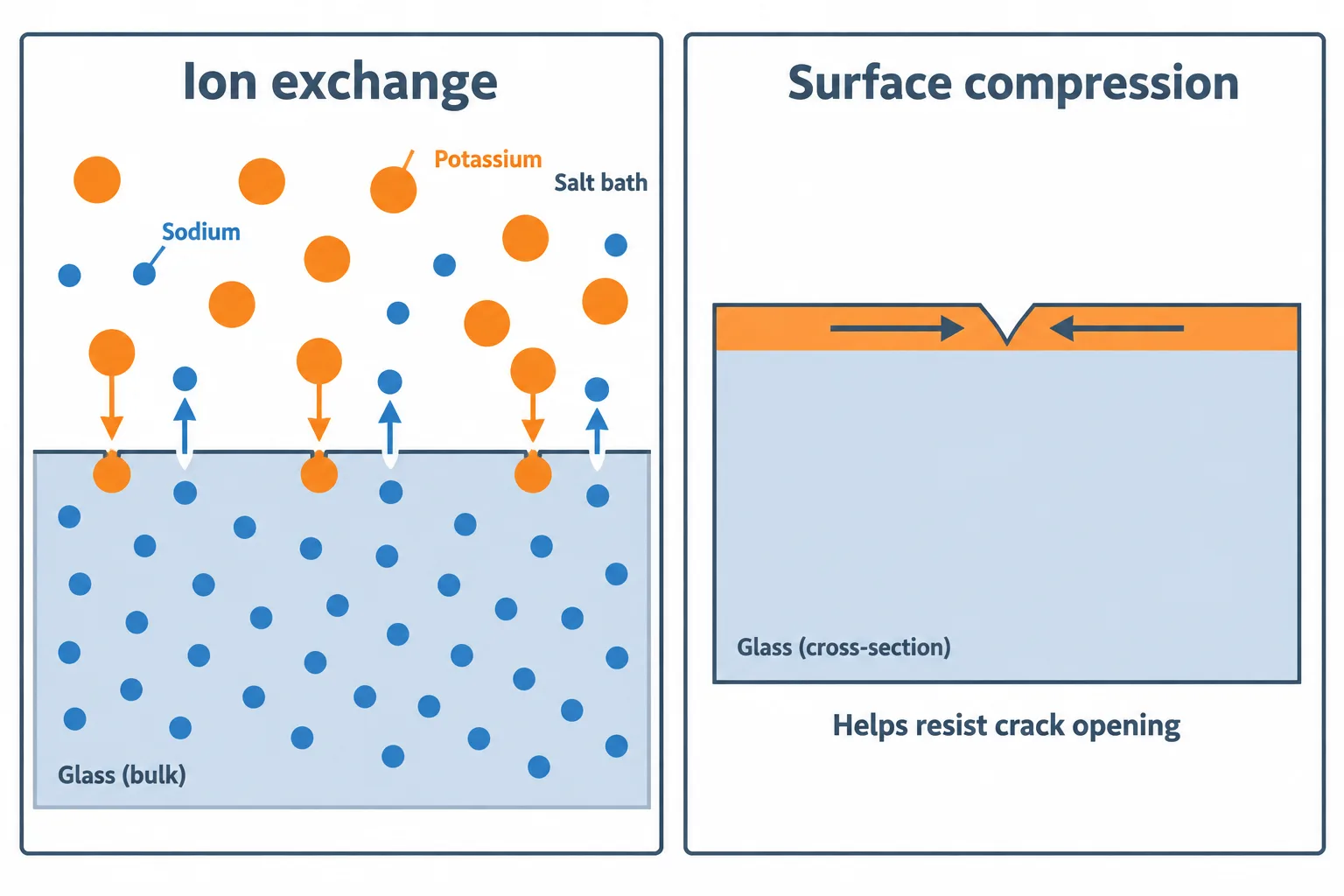

Ion exchange: giving the surface a protective squeeze

One way to strengthen glass is ion exchange, a chemical treatment that places its surface under compression.

In a common process:

1. The glass is placed in a hot bath of molten salt.
2. Larger potassium ions replace smaller sodium ions near the glass surface. Ions are atoms that carry an electrical charge.
3. The larger ions occupy more room, creating a surface layer under compressive stress—an internal squeezing force.

That pre-existing squeeze helps counteract the pull that occurs when the glass bends. Before a surface flaw can open into a growing crack, the pulling force must overcome that compression. Source: Corning

Ion exchange does not make glass unbreakable. A deep scratch, an excessively tight bend, or too much force can still cause failure.

How glass differs from early plastic covers

Early foldables used flexible plastic cover windows, including polyimide, a type of polymer—a material made from long chains of molecules.

Plastic bends readily and is less likely to fracture under a sharp bend, but it is more vulnerable to scratches and surface distortion. Ultra-thin glass adds a harder, smoother glass layer, although that does not give a folding screen the toughness of a conventional rigid phone cover.

Neither material works independently of the rest of the design.

Why the Hinge Matters So Much

A hinge does more than let you open and close the phone. It controls where and how the display bends.

If the hinge pinched the screen into a sharp corner, the deformation would concentrate along one narrow line. Even very thin materials could be damaged by that repeated strain.

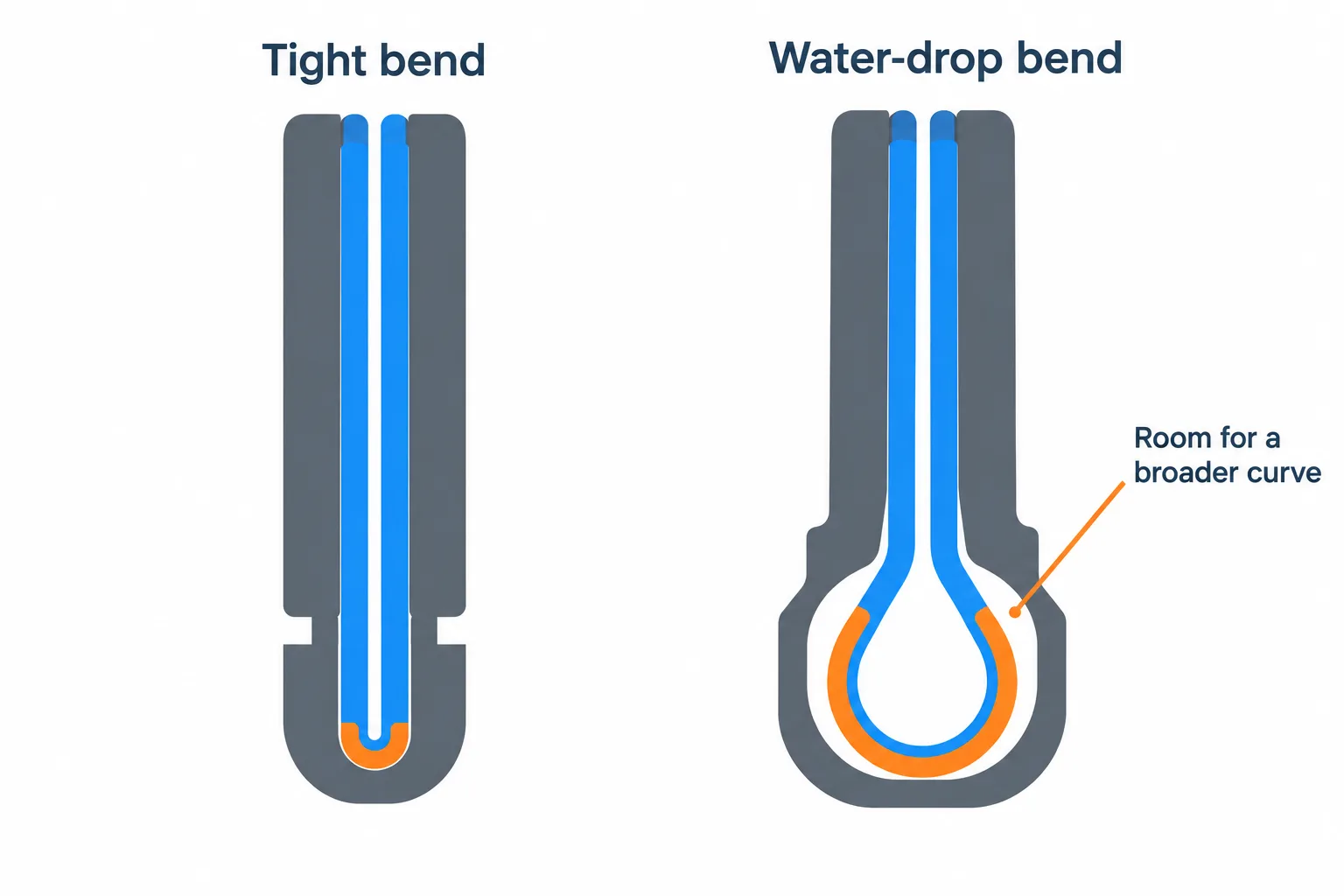

What a “water-drop” hinge actually does

In some designs, the display curls into a water-drop shape inside the closed hinge. This describes the screen’s shape when viewed in cross-section—not the shape of the phone itself.

The two phone halves can close nearly flat while the screen forms a small loop in the space between them. That loop gives the display a broader bending radius rather than forcing it into a tight, paper-like fold. Source: Samsung Display

The benefits are connected:

• Lower bending strain: The screen follows a gentler curve.
• Less concentrated deformation: More of the display participates in the bend.
• A potentially less pronounced crease: The materials are not pinched as tightly along one line.

The hinge also needs to support the display well when the phone is open. A screen must not only survive closing; it must return to a usable, reasonably flat surface.

Why There Is Still a Crease

The visible crease is a small change in the display’s shape along the folding region. It is not necessarily a crack.

As the phone closes, the outer layers stretch, the inner layers compress, and the materials between them accommodate that motion. Repeated folding—or simply spending time closed—can leave some deformation after the phone opens.

Even a shallow dip can become obvious in angled light because it changes how the surface reflects its surroundings.

A broader folding curve and better support beneath the screen can make the crease less noticeable. But the hinge is only part of the story: the properties of the layers and how they interact also matter.

Can the crease disappear completely?

It can become hard to notice. Making a screen remain permanently and perfectly flat after repeated folds, however, is a difficult engineering problem.

Current foldable designs generally minimize the crease rather than eliminate it. A normal crease, by itself, is not evidence that the display is broken. Source: Samsung

Why Glass Screens Still Have Plastic on Top

If ultra-thin glass is already there, why keep a plastic layer above it?

Because the layers do different jobs. The glass provides a smooth, firm surface within the stack. The plastic protection above it helps handle everyday contact and impacts, protects the delicate glass, and—in some designs—helps hold fragments in place if the glass cracks.

The factory-applied protective film on the inner folding screen is therefore not just disposable shipping packaging.

Don’t peel the inner screen’s factory-applied film off yourself. Follow your phone maker’s replacement instructions.

Manufacturers warn that removal can damage the display, and they may also advise against adding an unapproved protector over it. If the film bubbles, lifts, or becomes badly scratched, consult the manufacturer or an authorized service provider. Instructions for a separate rigid outer screen may be different. Source: Samsung support

How Engineers Check That It Will Last

Durability testing covers the panel, the hinge, and the assembled phone. A display that survives a laboratory bend test could still fail inside a poorly matched hinge.

Repeated-fold tests

Machines open and close samples thousands or hundreds of thousands of times. Engineers look for changes in:

• Crease shape
• Image quality
• Touch response
• Hinge movement
• Visible or functional damage

Samsung Display has reported a 500,000-fold test for a particular panel. That is a result for a specific test sample and setup—not a guarantee that every phone will last that many folds. Source: Samsung Display

Temperature and real-world stress

Materials can behave differently in heat and cold, so folding tests may also take place in temperature-controlled chambers. Samsung Display has reported tests at $-20^{\circ }\text{C}$ and $60^{\circ }\text{C}$. Source: Samsung Display

Testing assembled phones also includes drops, pressure, moisture, and debris. These stresses can reveal weaknesses that a clean machine repeating the same motion would miss.

The goal is not merely a phone that still opens. It is a phone whose display, touch controls, and hinge remain usable after wear.

The Secret Is Controlled Deformation

Foldable screens are an exercise in making small amounts of deformation repeatable.

Thin materials reduce stretching. Strengthening treatments help glass resist cracks. Protective layers manage contact and damage. The hinge keeps the bend within a carefully chosen shape.

None of that makes the screen invulnerable. But together, these choices turn an apparently impossible act—repeatedly folding a glass-containing display—into an engineered motion that can be performed many thousands of times.
